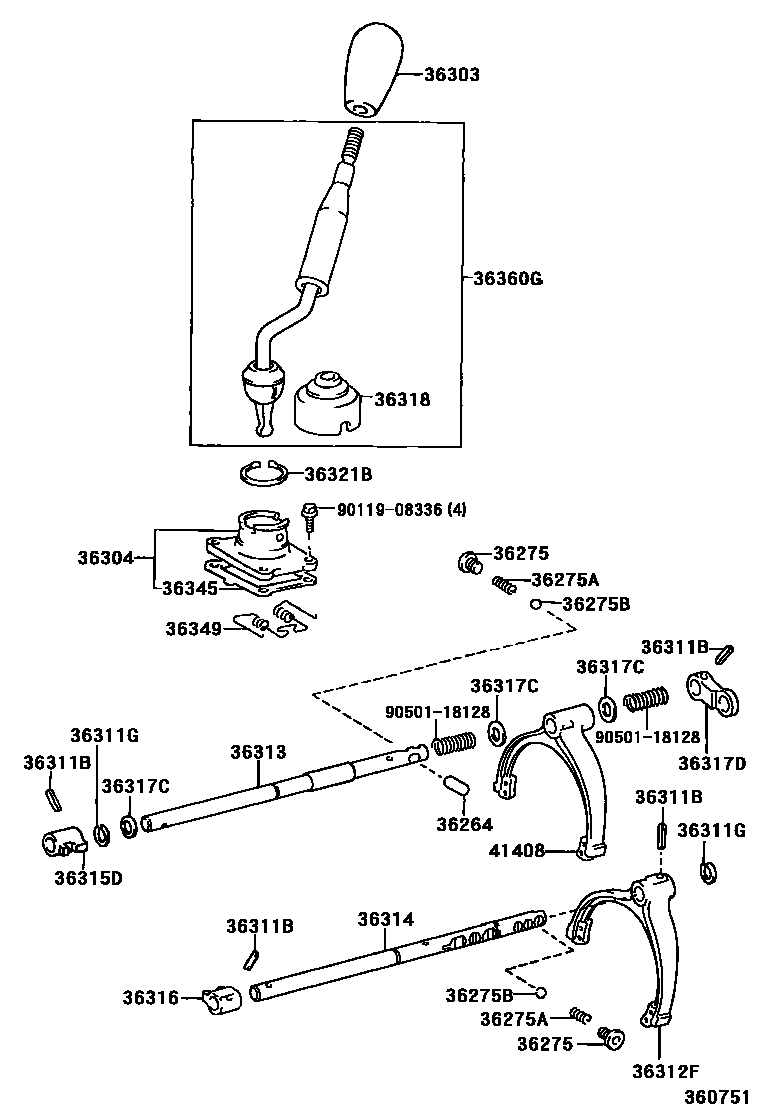

TRANSFER LEVER & SHIFT ROD
36264PIN OR ROLLER, SHIFT INTER-LOCK
36275PLUG, SHIFT DETENT BALL SPRING
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
36275BBALL, SHIFT DETENT
36303KNOB SUB-ASSY, SHIFT LEVER
36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER
36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
36313SHAFT, TRANSFER FRONT DRIVE SHIFT
36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36315DHEAD, TRANSFER GEAR SHIFT, NO.1
36316HEAD, TRANSFER GEAR SHIFT, NO.2
36317CSTOPPER, TRANSFER SHIFT SHAFT
36318BOOT, TRANSFER FRONT DRIVE SHIFT
36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER
36349SPRING, TRANSFER SELECT RETURN
36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT
9011908336
main90119-08336
9050118128
main90501-18128
23 parts on this diagram · 5 diagrams in section
