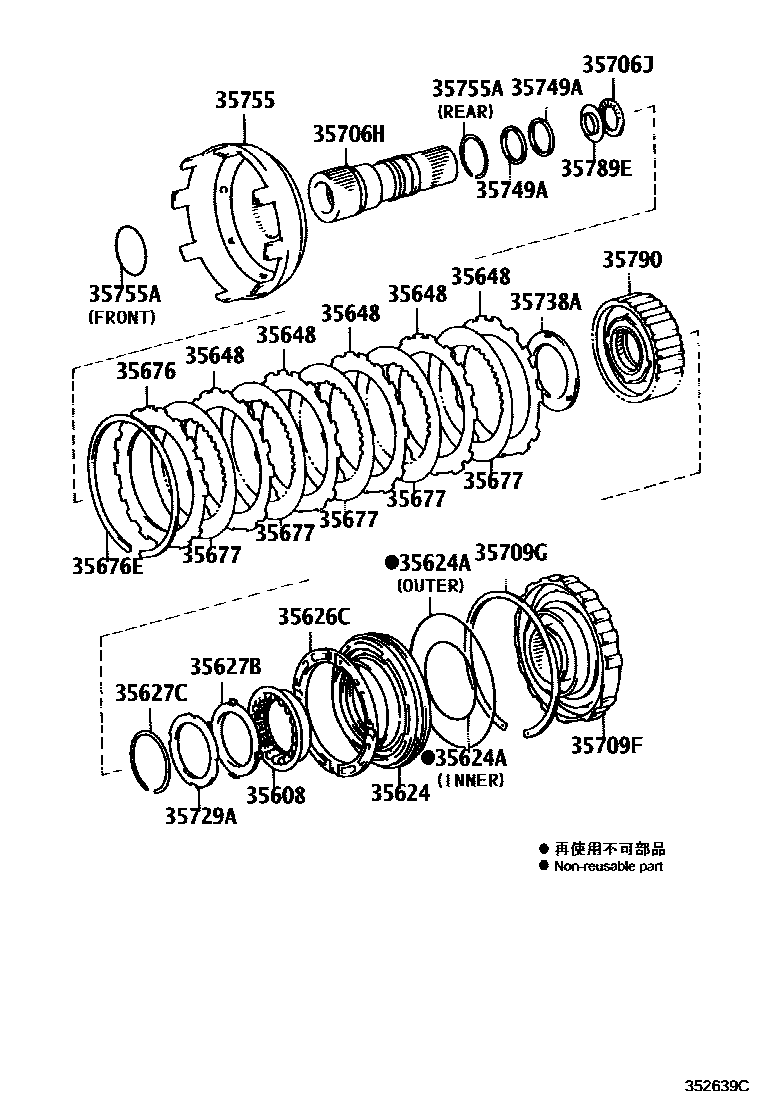

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A340F,A343F 0002 1A750F

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-30010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35624PISTON, 2ND BRAKE

main35624-30010iGRJ120..CHI200309-200409

main35624-60010iGRJ120..CHI200409

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-85001iGRJ120..CHI200309-200409

INNER

main90301-99038iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

OUTER

main90301-99095iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

INNER

main90301-99115iGRJ120..CHI200409

OUTER

35626CSLEEVE, 2ND BRAKE PISTON

main35626-30030iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35627BSEAT, 2ND BRAKE PISTON RETURN SPRING

main35627-30010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)

main90520-54001iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35647-30020×4iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

T=2.5

main35647-30030iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

T=1.8

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-30020iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

T=3.0

35676ERING, HOLE SNAP (FOR 2ND BRAKE)

main90521-99032iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-30080×5iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-30061iKZJ120,RZJ12#,TRJ12#..4FC200209

main35706-60040iGRJ12#..4FC..(ARL,GCC,GEN)200301-200408

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-27009iGRJ120..CHI200309-200409

35709FDRUM SUB-ASSY, 2ND BRAKE

main35709-30061iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35709GRING, HOLE SNAP (FOR 2ND BRAKE DRUM)

main90521-99044iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35729AWASHER, PLANETARY CARRIER THRUST, NO.4

main35729-30010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35738AWASHER, 1 WAY CLUTCH THRUST, NO.1

main35738-30040iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-30010×2iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35755DRUM, SUN GEAR INPUT

main35755-50010iGRJ120..CHI200309-200409

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-46002iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

ID=46.0,T=1.2,REAR

main90520-49001iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

ID=49.0,WD=2.3,FRONT

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-30240iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35790CLUTCH ASSY, 1 WAY

main35790-30050iTRJ12#..4FC200408-200908

main35790-30060iGRJ12#,KZJ120,RZJ12#..4FC..(ARL,GCC,GEN)200209-200908

main35790-50020iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

21 parts on this diagram · 2 diagrams in section
