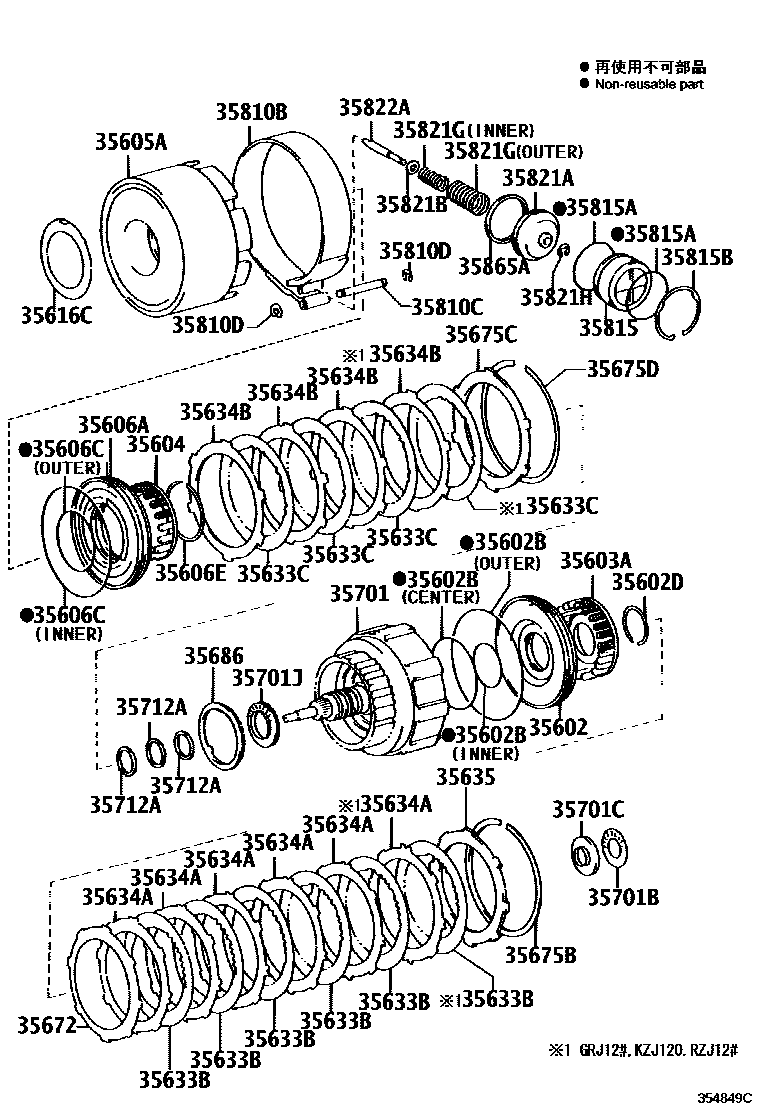

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1A340F,A343F 0002 1A750F

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-14012iGRJ120..CHI200309-200409

main35602-30062iTRJ12#..4FC200408-200908

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-39005iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

INNER

main90301-39012iGRJ120..CHI200409

INNER

main90301-72003iGRJ120..CHI200309-200409

CENTER

main90301-99058iGRJ120..CHI200309-200409

OUTER

main90301-99096iGRJ120..CHI200409

CENTER

main90301-99145iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

OUTER

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-35001iGRJ120..CHI200309-200409

main90520-35003iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-30011iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

main35603-60020iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-35010iGRJ120..CHI200309-200409

main35604-60020iGRJ120..CHI200409

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-22040iTRJ12#..4FC200408

main35605-30060iGRJ12#,KZJ120,RZJ12#..4FC..(ARL,GCC,GEN)200209

35606APISTON SUB-ASSY, DIRECT CLUTCH

main35606-35010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

main35652-60020iGRJ120..CHI200409-200608

main35652-60021iGRJ12#..5FC..(ARL,GCC,GEN)200608-200908

main35652-60031iKDJ120..5FC200608-200908

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-65006iGRJ120..CHI200309-200409

INNER

main90301-74002iGRJ120..CHI200409

INNER

main90301-99058iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

OUTER

main90301-99149iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

OUTER

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90520-58001iGRJ120..CHI200309-200409

main90520-64003iGRJ120..CHI200409

35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)

main35616-30050iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-60070×7iKDJ120..5FC200608-200908

main35677-26010×6iGRJ120..CHI200309-200409

main35677-30170×5iTRJ12#..4FC200408-200908

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35667-40020×4iGRJ12#,KZJ120,RZJ12#..4FC..(ARL,GCC,GEN)200209

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-30110×5iTRJ12#..4FC200408-200908

T=2.3

main35634-32010×6iGRJ12#,KZJ120,RZJ12#..4FC..(ARL,GCC,GEN)200209-200908

T=1.8

main35634-60020×5iGRJ12#..5FC..(ARL,GCC,GEN)200408-200908

T=1.8

35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35647-22030×3iTRJ12#..4FC200408

T=2.3

35635FLANGE, FORWARD CLUTCH

main35635-30040iGRJ120..CHI200309-200409

T=4.0,MARK 95

main35635-30050iGRJ120..CHI200309-200409

T=3.8,MARK 94

main35635-30060iGRJ120..CHI200309-200409

T=3.6,MARK 93

main35635-30070iGRJ120..CHI200309-200409

T=3.4,MARK 92

main35635-30080iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

T=3.2,MARK 91

main35635-30090iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

T=3.0,MARK 90

main35635-30100iGRJ120..CHI200309-200409

T=4.2,MARK 96

main35635-30110iGRJ120..CHI200309-200409

T=4.4,MARK 97

main35635-60010iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

T=3.0,MARK 0

main35635-60020iGRJ120..CHI200409

T=3.1,MARK 1

main35635-60030iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

T=3.2,MARK 2

main35635-60040iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

T=3.3,MARK 3

main35635-60050iGRJ120..CHI200409

T=3.4,MARK 4

main35635-60060iGRJ120..CHI200409

T=3.5,MARK 5

main35635-60070iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

T=3.6,MARK 6

main35635-60080iGRJ120..CHI200409

T=3.7,MARK 7

main35635-60090iGRJ120..CHI200409

T=3.8,MARK 8

main35635-60100iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

T=3.9,MARK 9

main35635-60110iGRJ120..CHI200409

T=4.0,MARK A

35672PLATE, CLUTCH CUSHION

main35672-30010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209-200908

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90520-99082iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

main90521-99001iGRJ120..CHI200309-200409

35675CFLANGE, DIRECT CLUTCH

main35675-30210iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

T=3.5,MARK 55

main35675-30220iGRJ120..CHI200309-200409

T=3.6,MARK 56

main35675-30230iGRJ120..CHI200309-200409

T=3.7,MARK 57

main35675-30240iGRJ120..CHI200309-200409

T=3.3,MARK 53

main35675-30250iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

T=3.4,MARK 54

main35675-30260iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

T=3.8,MARK 58

main35675-30270iGRJ120..CHI200309-200409

T=4.0,MARK 60

main35675-30280iGRJ12#..4FC..(ARL,GCC,GEN)200301-200408

T=4.2,MARK 62

35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)

main90520-99018iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35686WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT)

main35686-30010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35701SHAFT SUB-ASSY, INPUT

main35701-22050iGRJ120..CHI200309-200409

main35701-60030iKZJ120..4FC200209-200908

main35701-60080iGRJ120..CHI200409

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-25005iKZJ120,RZJ12#,TRJ12#..4FC200209

main90374-25006iGRJ12#..4FC..(ARL,GCC,GEN)200301-200408

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-30110iKZJ120,RZJ12#,TRJ12#..4FC200209

main35789-30230iGRJ12#..4FC..(ARL,GCC,GEN)200301-200408

35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)

main90374-33001iGRJ120..CHI200309-200409

main90374-34011iGRJ120..CHI200409

35712ARING, INPUT SHAFT OIL SEAL

main35712-30020×3iGRJ120..CHI200309-200409

main35712-60010×3iGRJ12#,KDJ120..5FC..(ARL,GCC,GEN)200408-200908

35810BBAND ASSY, 2ND COAST BRAKE

main35810-14010iGRJ12#..4FC..(ARL,GCC,GEN)200301-200408

main35810-50020iKZJ120,RZJ12#,TRJ12#..4FC200209

35810CPIN (FOR 2ND COAST BRAKE BAND)

main90249-07011iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35810DRING, E (FOR 2ND COAST BRAKE BAND PIN)

main96160-00500×2iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35815COVER, 2ND COAST BRAKE

main35815-22010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35815ARING, O (FOR 2ND COAST BRAKE COVER)

main90301-48001×2iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)

main90521-60003iGRJ120..CHI200309-200409

35821APISTON, 2ND COAST BRAKE

main35821-22020iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)

main90201-06557iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)

main90501-26024iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

OUTER

main90501-32037iGRJ120..CHI200309-200409

INNER

35821HRING, E (FOR 2ND COAST BRAKE PISTON)

main96160-00500iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

35822AROD, 2ND COAST BRAKE PISTON

main35822-22010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

L=78.4

main35822-22020iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209

L=79.9

35865ARING, 2ND COAST BRAKE PISTON OIL SEAL

main35865-30010iGRJ12#,KZJ120,RZJ12#,TRJ12#..4FC..(ARL,GCC,GEN)200209
