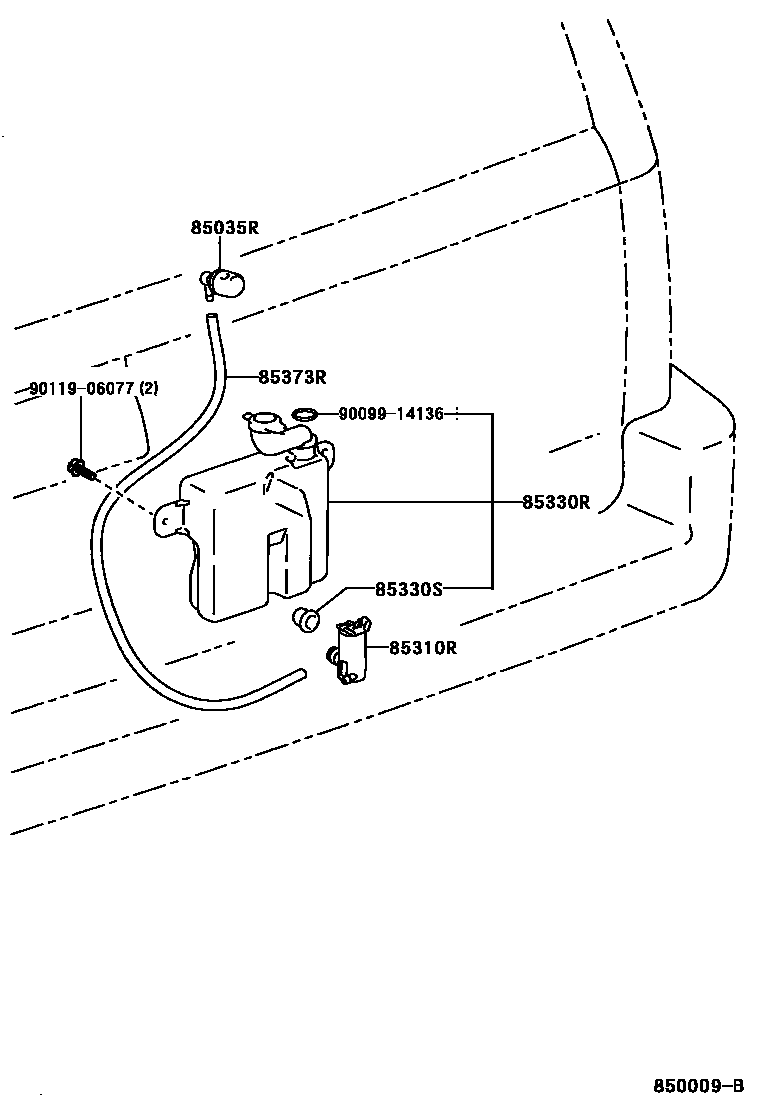

REAR WASHER

0001 1 0002 1

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-60050iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85310RMOTOR ASSY, REAR WASHER

main85310-22080iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85330RJAR ASSY, REAR WASHER

main85325-60090iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85330SBUSH, REAR WASHER JAR

main90099-32089iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iKZJ9#,LJ9#,RZJ9#,VZJ9#199604-199906

L=1450(*H,L=580)

9009914136

main90099-14136

9011906077

main90119-06077

7 parts on this diagram · 2 diagrams in section
