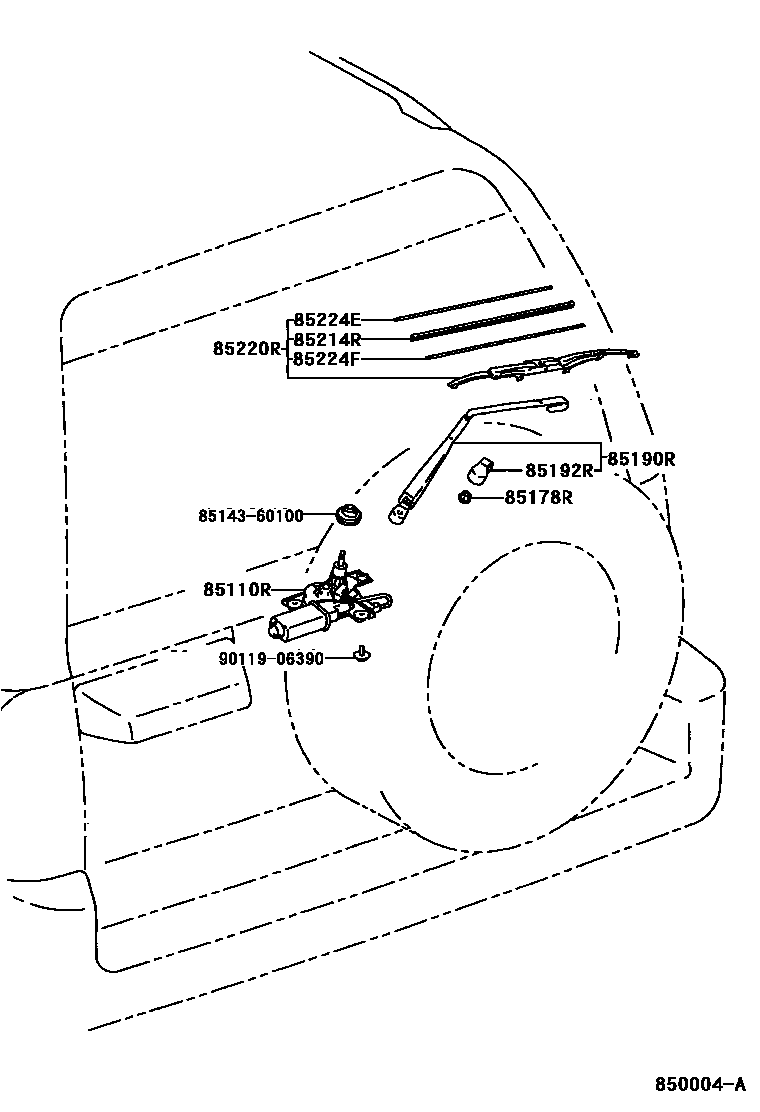

REAR WIPER
85110RMOTOR ASSY, REAR WIPER
main85130-60150iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
85178RNUT (FOR REAR WIPER ARM SETTING)
main90179-06070iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
85190RARM ASSY, REAR WIPER
main85241-60060iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
85192RCOVER, REAR WIPER ARM
main85192-13060iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
85214RRUBBER, REAR WIPER
main85214-30280iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
85220RBLADE ASSY, REAR WIPER
main85242-30040iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
85224EPLATE, REAR WIPER RUBBER BACKING, NO.1
main85224-30460iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
85224FPLATE, REAR WIPER RUBBER BACKING, NO.2
main85224-30460iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209
8514360100WIRING, WINDSHIELD WIPER MOTOR LEAD
main85143-60100
9011906390
main90119-06390
10 parts on this diagram · 1 diagram in section
