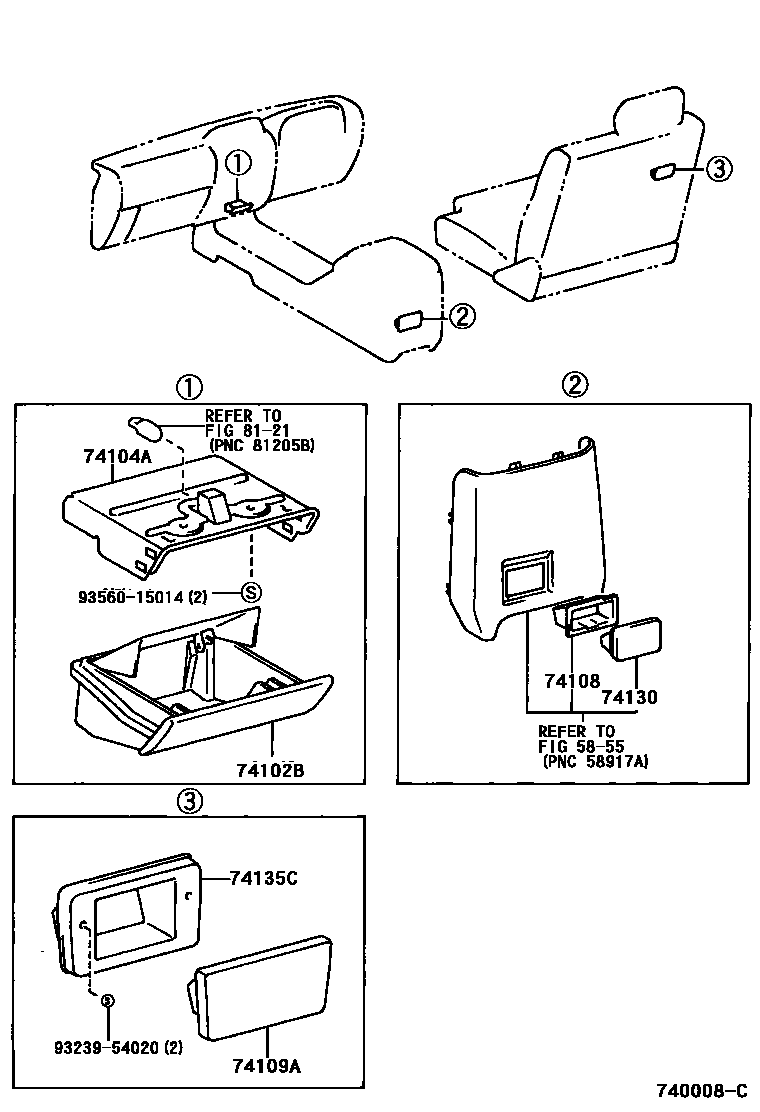

ASH RECEPTACLE

5855CONSOLE BOX & BRACKET

→ Go to FIG 58-55

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-35010iKZJ9#,LJ9#,RZJ9#,VZJ9#199906

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-89108iRZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-20090iRZJ90..CBR;LJ95,RZJ90..GX;RZJ95..GX..CBR;KZJ9#,LJ90,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74131-60020-B0iRZJ95..RHD..STD199906-200412

MD.MOON MIST,TRIM1#

main74131-60020-E0iKZJ95,LJ95,RZJ95..GX..(CBR,DSL,TD)199801-199906

OAK,TRIM4#

74130RECEPTACLE ASSY, REAR ASH

main74109-20080-B1iLJ95,RZJ95..GX,VX;KZJ9#,LJ90,RZJ90,VZJ9#199906

MD.MOON MIST,TRIM1#

main74109-20080-E1iVZJ95..ATM..GCC199906-200303

OAK,TRIM4#

74135CRETAINER, ASH RECEPTACLE

main74135-60020-B0iRZJ95..GCC,GEN;KZJ95,LJ9#,RZJ90..CBR,DSL,TD199604-199801

MD.MOON MIST,TRIM1#

main74135-60020-E0iKZJ95..GEN199906-200008

OAK,TRIM4#

8121INTERIOR LAMP

→ Go to FIG 81-21

9323954020

main93239-54020

9356015014

main93560-15014

10 parts on this diagram · 1 diagram in section
