BATTERY CARRIER

74403ACARRIER SUB-ASSY, BATTERY

main74403-60180iKZJ95,LJ9#..RHD199906-200209

74404BCLAMP SUB-ASSY, BATTERY

main74404-60120iRZJ9#..CBR;RZJ90,VZJ95..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ90..LHD..(DSL,EFI,TD)199604-200209

74431TRAY, BATTERY

main74431-14030iLJ9#;RZJ95..GCC; LJ95..LHD199604-199906

W(BATTERY=80D26R OR 80D26L); W(BATTERY=85D26RL + 80D26RL)

main74431-35030iRZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN)199604-200209

W(BATTERY=55D23L)

main74431-35040iKZJ9#199604-199906

74451BBOLT, BATTERY CLAMP

main74451-35060×2iLJ95..LHD199604-199906

W(BATTERY=85D26RL + 80D26RL)

9011908974

main90119-08974

9017908220

main90179-08220

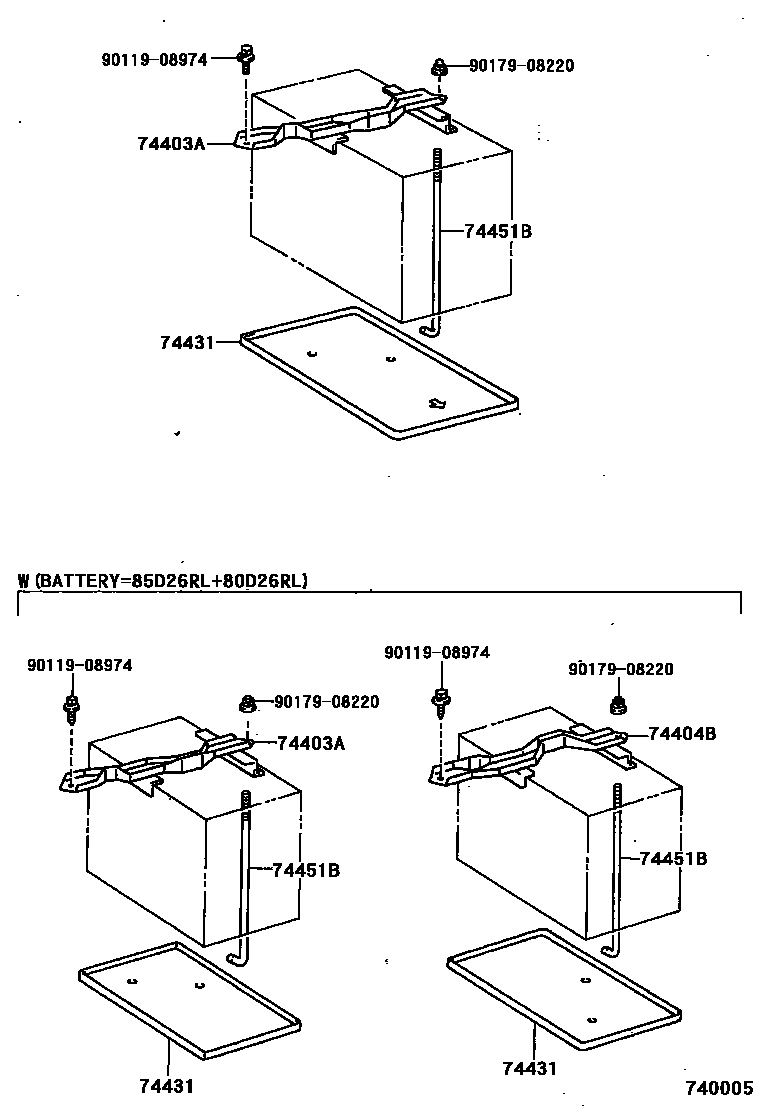

6 parts on this diagram · 1 diagram in section
