E
EPC Data

INSTRUMENT PANEL & GLOVE COMPARTMENT

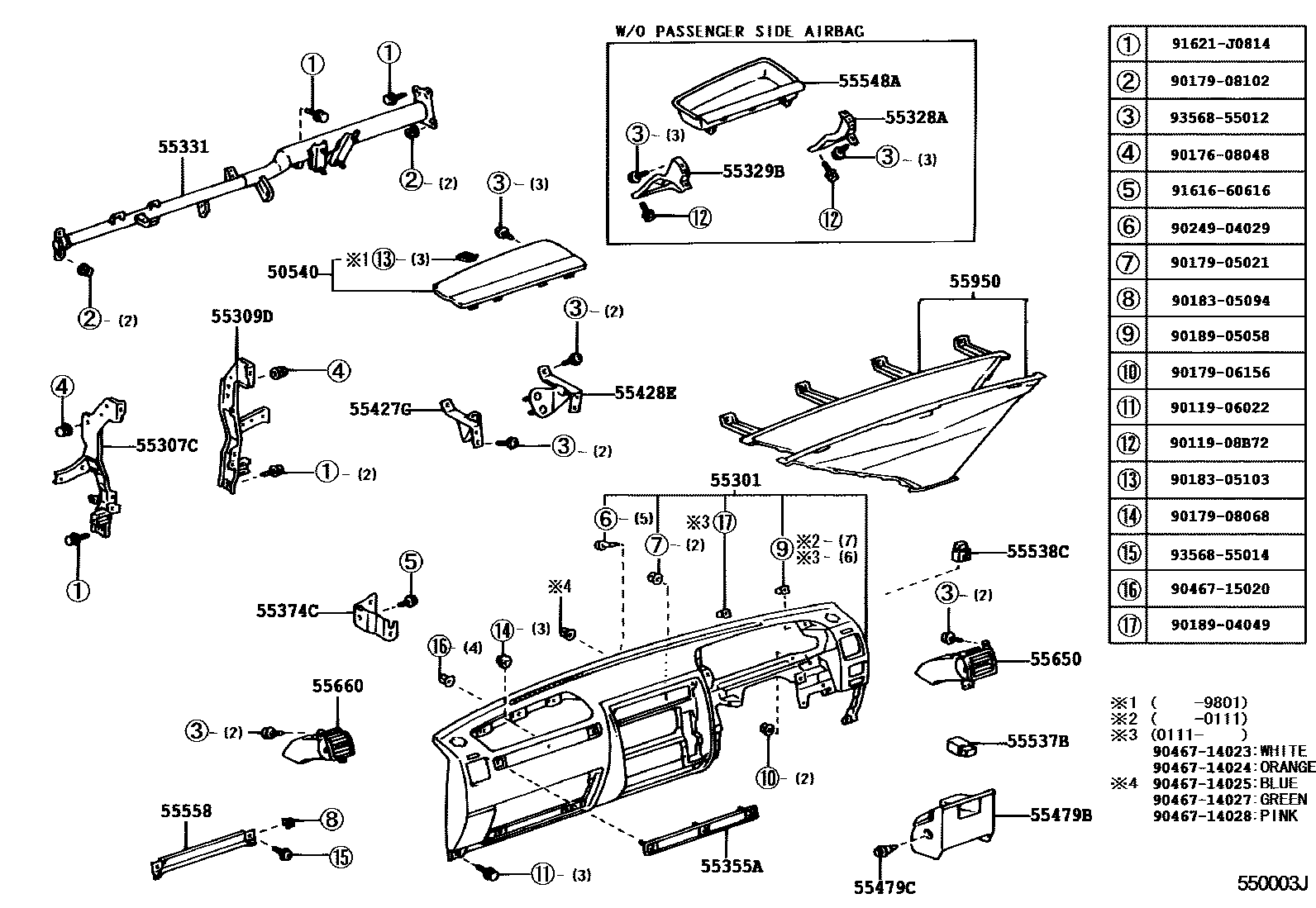

Parts diagram
50540DO0R ASSY, AIRBAG PASSENGER
main50541-60010-B0i199906-200209
MD.MOON MIST,TRIM1#
main50541-60010-E0i199910-200209
SANDAL WOOD,TRIM4#
main50541-60020-B0i199906
MD.MOON MIST,TRIM1#
main50541-60020-E0i199906-200312
SANDAL WOOD,TRIM4#
main55591-60020-B0i199604-199801
MD.MOON MIST,TRIM1#
main55591-60030-B0i199604-199801
MD.MOON MIST,TRIM1#
55301PANEL SUB-ASSY, INSTRUMENT
main55311-60490-B0i199807-199809
MD.MOON MIST,TRIM1#
main55311-60491-B0i199809-200209
MD.MOON MIST,TRIM1#
main55311-60491-E0i199906-200209
OAK,TRIM4#
main55311-60500-B0i199604-199809
MD.MOON MIST,TRIM1#
main55311-60501-B0i199906-199910
MD.MOON MIST,TRIM1#
main55311-60501-E0i199906-200312
OAK,TRIM4#
main55311-60510-B0i199604-199809
W(ACCESSORY METER),MD.MOON MIST,TRIM1#
main55311-60511-B0i199906-200412
W(ACCESSORY METER),MD.MOON MIST,TRIM1#
main55311-60511-E0i199906-200209
W(ACCESSORY METER),OAK,TRIM4#
main55311-60520-B0i199604-199809
W(ACCESSORY METER),MD.MOON MIST,TRIM1#
main55311-60521-B0i199809-199906
W(ACCESSORY METER),MD.MOON MIST,TRIM1#
main55311-60521-E0i199906-200312
W(ACCESSORY METER),OAK,TRIM4#
main55311-60530-B0i199604-199809
W(ACCESSORY METER & *80),MD.MOON MIST,TRIM1#
main55311-60531-B0i199906-200209
W(ACCESSORY METER & *80),MD.MOON MIST,TRIM1#
main55311-60531-E0i199906-200209
W(ACCESSORY METER & *80),OAK,TRIM4#
main55311-60540-B0i199604-199809
W(ACCESSORY METER & *80),MD.MOON MIST,TRIM1#
main55311-60541-B0i199809-199906
W(ACCESSORY METER & *80),MD.MOON MIST,TRIM1#
main55311-60541-E0i199906-200312
W(ACCESSORY METER & *80),OAK,TRIM4#
main55311-60560-B0i199604-199809
W(*80),MD.MOON MIST,TRIM1#
main55311-60561-B0i199906-200209
W(*80),MD.MOON MIST,TRIM1#
main55311-60561-E0i199910-200209
W(*80),OAK,TRIM4#
main55311-60580-B0i199604-199809
W(*80),MD.MOON MIST,TRIM1#
main55311-60581-B0i199906
W(*80),MD.MOON MIST,TRIM1#
main55311-60581-E0i199906-200312
W(*80),OAK,TRIM4#
main55311-60640-B0i199604-199809
W(WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1#
main55311-60641-B0i199809-199906
W(WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1#
main55311-60650-B0i199608-199809
W(WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1#
main55311-60651-B0i199809-199906
W(WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1#
main55311-60651-E0i200001-200209
W(WOOD GRAIN ORNAMENT & *80),OAK,TRIM4#
main55311-60660-B0i199604-199809
W(ACCESSORY METER & WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1#
main55311-60661-B0i199809-199906
W(ACCESSORY METER & WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1#
main55311-60670-B0i199608-199809
W(ACCESSORY METER & WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1#
main55311-60671-B0i199809-199906
W(ACCESSORY METER & WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1#
main55311-60671-E0i200001-200209
W(ACCESSORY METER & WOOD GRAIN ORNAMENT & *80),OAK,TRIM4#
main55311-60681-B0i199906-200209
W(TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1#
main55311-60681-E0i199906-200209
W(TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),OAK,TRIM4#
main55311-60691-B0i199906-200209
W(ACCESSORY METER & TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1#
main55311-60691-E0i199910-200209
W(ACCESSORY METER & TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),OAK,TRIM4#
main55311-60730-B0i199910-200209
W(ACCESSORY METER & TWEETER SPEAKER),MD.MOON MIST,TRIM1#
main55311-60730-E0i199906-200209
W(ACCESSORY METER & TWEETER SPEAKER),OAK,TRIM4#
main55311-60740-B0i199906-200209
W(TWEETER SPEAKER),MD.MOON MIST,TRIM1#
main55311-60740-E0i199910-200209
W(TWEETER SPEAKER),OAK,TRIM4#
main55311-60750-B0i199906-200209
W(ACCESSORY METER & AUTO AIR CONDITIONER & *80),MD.MOON MIST,TRIM1#
main55311-60750-E0i199906-200209
W(ACCESSORY METER & AUTO AIR CONDITIONER & *80),OAK,TRIM4#
main55311-60760-B0i199906-200209
W(ACCESSORY METER & TWEETER SPEAKER & *80),MD.MOON MIST,TRIM1#
main55311-60760-E0i199906-200209
W(ACCESSORY METER & TWEETER SPEAKER & *80),OAK,TRIM4#
main55311-60770-B0i199906-200209
W(ACCESSORY METER & AUTO AIR CONDITIONER & TWEETER SPEAKER & *80),MD.MOON MIST,TRIM1#
main55311-60770-E0i199906-200209
W(ACCESSORY METER & AUTO AIR CONDITIONER & TWEETER SPEAKER & *80),OAK,TRIM4#
main55311-60780-B0i199906-200209
W(AUTO AIR CONDITIONER & *80),MD.MOON MIST,TRIM1#
main55311-60780-E0i199906-200209
W(AUTO AIR CONDITIONER & *80),OAK,TRIM4#
main55311-60790-B0i199906-200209
W(TWEETER SPEAKER & *80),MD.MOON MIST,TRIM1#
main55311-60790-E0i199906-200209
W(TWEETER SPEAKER & *80),OAK,TRIM4#
main55311-60800-B0i199906-200209
W(AUTO AIR CONDITIONER & TWEETER SPEAKER & *80),MD.MOON MIST,TRIM1#
main55311-60800-E0i199906-200209
W(AUTO AIR CONDITIONER & TWEETER SPEAKER & *80),OAK,TRIM4#
main55311-60810-B0i199906-200209
W(ACCESSORY METER & AUTO AIR CONDITIONER),MD.MOON MIST,TRIM1#
main55311-60810-E0i199906-200209
W(ACCESSORY METER & AUTO AIR CONDITIONER),OAK,TRIM4#
main55311-60820-B0i199906-200209
W(ACCESSORY METER & TWEETER SPEAKER),MD.MOON MIST,TRIM1#
main55311-60820-E0i199906-200209
W(ACCESSORY METER & TWEETER SPEAKER),OAK,TRIM4#
main55311-60830-B0i199906-200209
W(ACCESSORY METER & AUTO AIR CONDITIONER & TWEETER SPEAKER),MD.MOON MIST,TRIM1#
main55311-60830-E0i199906-200209
W(ACCESSORY METER & AUTO AIR CONDITIONER & TWEETER SPEAKER),OAK,TRIM4#
main55311-60840-B0i199906-200209
W(AUTO AIR CONDITIONER),MD.MOON MIST,TRIM1#
main55311-60840-E0i199906-200209
W(AUTO AIR CONDITIONER),OAK,TRIM4#
main55311-60850-B0i199906-200209
W(TWEETER SPEAKER),MD.MOON MIST,TRIM1#
main55311-60850-E0i199906-200209
W(TWEETER SPEAKER),OAK,TRIM4#
main55311-60860-B0i199906-200209
W(AUTO AIR CONDITIONER & TWEETER SPEAKER),MD.MOON MIST,TRIM1#
main55311-60860-E0i199906-200209
W(AUTO AIR CONDITIONER & TWEETER SPEAKER),OAK,TRIM4#
main55311-60870-B0i199906-200209
W(AUTO AIR CONDITIONER & TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1#
main55311-60870-E0i199906-200209
W(AUTO AIR CONDITIONER & TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),OAK,TRIM4#
main55311-60890-B0i199906-200209
W(ACCESSORY METER & AUTO AIR CONDITIONER & WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1#
main55311-60890-E0i199906-200209
W(ACCESSORY METER & AUTO AIR CONDITIONER & WOOD GRAIN ORNAMENT & *80),OAK,TRIM4#
main55311-6A010-B0i200101-200106
50TH ANNIVERSARY LIMITED EDITION(G.C.C.) & W(ACCESSORY METER & TWEETER SPEAKER),MD.MOON MIST,TRIM11
main55311-6A010-E0i200001-200209
W(ACCESSORY METER & TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),OAK,TRIM4#
main55311-6A020-B0i199906-200310
W(ACCESSORY METER & AUTO AIR CONDITIONER & TWEETER SPEAKER & WOOD GRAIN ORNAMENT &*80),MD.MOON MIST,TRIM1#
main55311-6A020-E0i199906-200310
W(ACCESSORY METER & AUTO AIR CONDITIONER & TWEETER SPEAKER & WOOD GRAIN ORNAMENT &*80),OAK,TRIM4#
main55311-6A030-B0i199906-200209
W(AUTO AIR CONDITIONER & WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1#
main55311-6A030-E0i199906-200209
W(AUTO AIR CONDITIONER & WOOD GRAIN ORNAMENT & *80),OAK,TRIM4#
main55311-6A040-B0i200101-200106
50TH ANNIVERSARY LIMITED EDITION(G.C.C.) & W(TWEETER SPEAKER),MD.MOON MIST,TRIM11
main55311-6A040-E0i200101-200106
50TH ANNIVERSARY LIMITED EDITION(G.C.C.) & W(TWEETER SPEAKER),OAK,TRIM40
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-60050i199604-199906
main55307-60060i199906-199910
main55307-60090i199910-200209
main55307-60100i199906
55309DBRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR
main55309-60010i199604-199906
main55309-60020i199906-199910
main55309-60070i199910-200008
main55309-60071i200008-200412
main55309-60080i199906-200008
main55309-60081i200008
55328ASTAY, INSTRUMENT PANEL, NO.3
main55328-60020i199906-200412
main55328-60030i199906-200108
55329BSTAY, INSTRUMENT PANEL, NO.4
main55329-60030i199604-200209
main55329-60040i199604-199910
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-60070i199604-200209
main55330-60080i199906
55355APLATE, INSTRUMENT PANEL
main55355-60040i199604-199906
main55355-60050i199608-199906
main55355-60090i199906-200209
main55355-60100i199906-200310
main55355-60130i200101-200106
50TH ANNIVERSARY LIMITED EDITION(G.C.C.)
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
main55374-60030i199906-200412
main55374-60040i199604-199910
55427GBRACKET, AIRBAG PASSENGER MOUNTING, NO.1
main55305-60020i199604-199801
main55305-60021i199801-200108
55428EBRACKET, AIRBAG PASSENGER MOUNTING, NO.2
main55306-60100i199604-199801
main55306-60101i199801-200108
55479BCOVER, INSTRUMENT, LOWER CENTER
main55479-60050-B0i199801-199906
MD.MOON MIST,TRIM1#
main55479-60050-E0i199906-200209
OAK,TRIM4#
55479CCLIP(FOR INSTRUMENT LOWER COVER)
main90467-07041-B5×2i199604-199801
MD.MOON MIST,TRIM1#
55537BCOVER, REAR DEFOGGER SWITCH HOLE
main55537-60010i199604-199801
55538CCOVER, COOLER SWITCH HOLE
main55538-33010i199906-200209
55548ACOVER, INSTRUMENT PANEL HOLE
main55548-60020-B0i199906-200412
MD.MOON MIST,TRIM1#
main55548-60020-E0i199906-200209
OAK,TRIM4#
main55548-60030-B0i199906
MD.MOON MIST,TRIM1#
main55548-60030-E0i199906-200209
OAK,TRIM4#
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
main55558-60050i199604-199906
main55558-60070i199906
OAK
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-60070-C0i199910-200209
BLACK,TRIM1#,4#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
main55660-60110-C0i199906-199910
BLACK,TRIM1#
55950NOZZLE ASSY, DEFROSTER
main55950-60060i199604-200209
main55950-60070i199906
9011906022
main90119-06022
9011908B72
main90119-08B72
9017608048
main90176-08048
9017905021
main90179-05021
9017906156
main90179-06156
9017908068
main90179-08068
9017908102
main90179-08102
9018305094
main90183-05094
9018305103
main90183-05103
9018904049
main90189-04049
9018905058
main90189-05058
9024904029
main90249-04029
9046714023
main90467-14023
9046714024
main90467-14024
9046714025
main90467-14025
9046714027
main90467-14027
9046714028
main90467-14028
9046715020
main90467-15020
9161660616
main91616-60616
91621J0814
main91621-J0814
9356855012
main93568-55012
9356855014
main93568-55014

42 parts on this diagram · 4 diagrams in section
