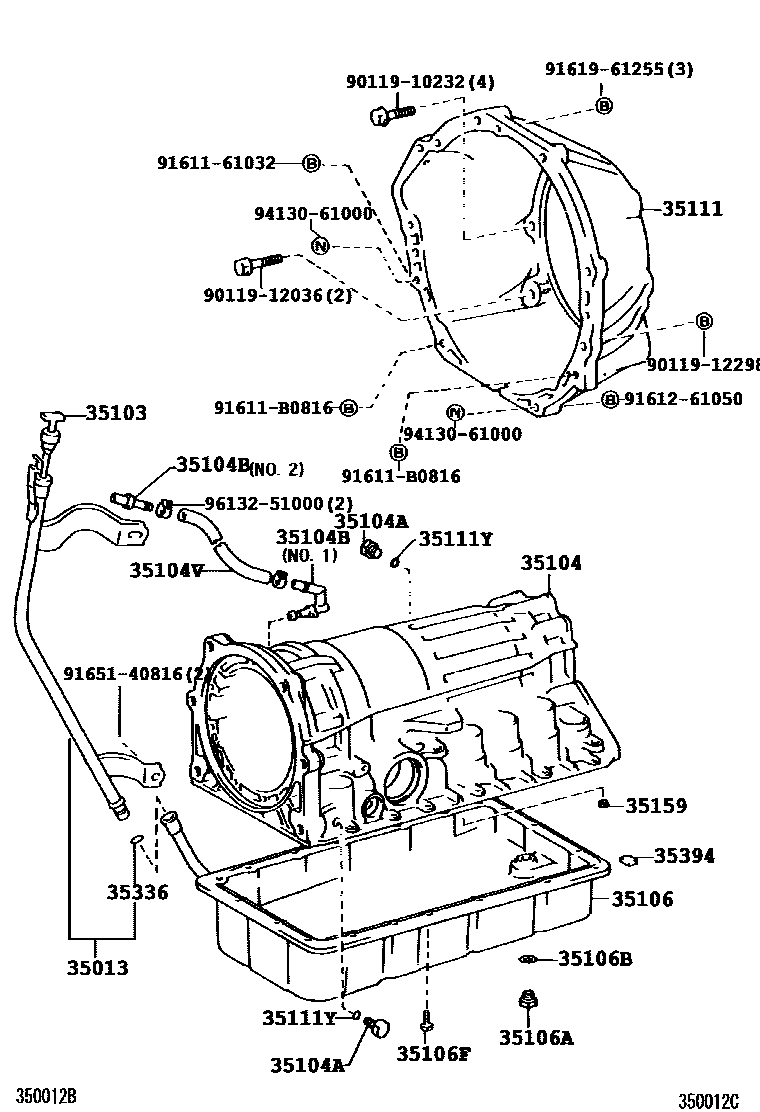

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A343F 0002 1A343F 0003 1A343F

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-34060iVZJ95..ATM..ARL199807-199906

main35013-35280iRZJ95..ATM199604-199906

main35013-35290iVZJ95..LHD..ATM199906

main35013-35300iVZJ95..ATM..ARL199604-199807

main35013-35310iKZJ95..ATM..ARL199909-200008

main35013-35350iRZJ95..ATM199906-200209

main35013-60140iKZJ95..MA199910-200209

main35013-60210iVZJ95..ATM..ARL199906-200209

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-34060iVZJ95..ATM..ARL199807-199906

main35103-35340iRZJ95..ATM199906-200209

main35103-35350iVZJ95..LHD..ATM199906

main35103-35360iVZJ95..ATM..ARL199604-199807

main35103-35370iKZJ95..ATM..ARL; KZJ95..MA199909-200209

main35103-60170iVZJ95..ATM..ARL199906-200209

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-35011iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

main90341-14011iKZJ95..ATM199909-200209

NO.2

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iKZJ95,RZJ95..ATM199906-200209

NO.1

main90930-03099iRZJ95..ATM; RZJ95..ATM..ARL200012-200209

NO.2

main90930-03116iVZJ95..ATM199910

main90930-03168iKZJ95..ATM200012-200209

NO.2

35104VHOSE (FOR BREATHER PLUG)

main90445-11118iKZJ95..ATM..ARL199909-200209

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-35070iRZJ95..ATM..ARL199604-200209

main35106-35100iVZJ95..LHD..ATM199906

main35106-35110iVZJ95..ATM..ARL199906-200209

main35106-35120iKZJ95..MA199910-200209

main35106-35140iKZJ95..ATM..ARL199909-200209

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

main90341-10011iVZJ95..ATM200304

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06513×19iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-35060iVZJ95..ATM199604-199910

main35111-35070iRZJ95..ATM199906-200209

main35111-35090iKZJ95..MA199910-200209

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35159GASKET, BRAKE DRUM

main35159-30010iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iVZJ95..ATM;RZJ95..ATM..ARL199604-200209

9011910232

main90119-10232

9011912036

main90119-12036

9011912298

main90119-12298

9161161032

main91611-61032

91611B0816

main91611-B0816

9161261050

main91612-61050

9161961255

main91619-61255

9165140816

main91651-40816

9413061000

main94130-61000

9613251000

main96132-51000

25 parts on this diagram · 3 diagrams in section
