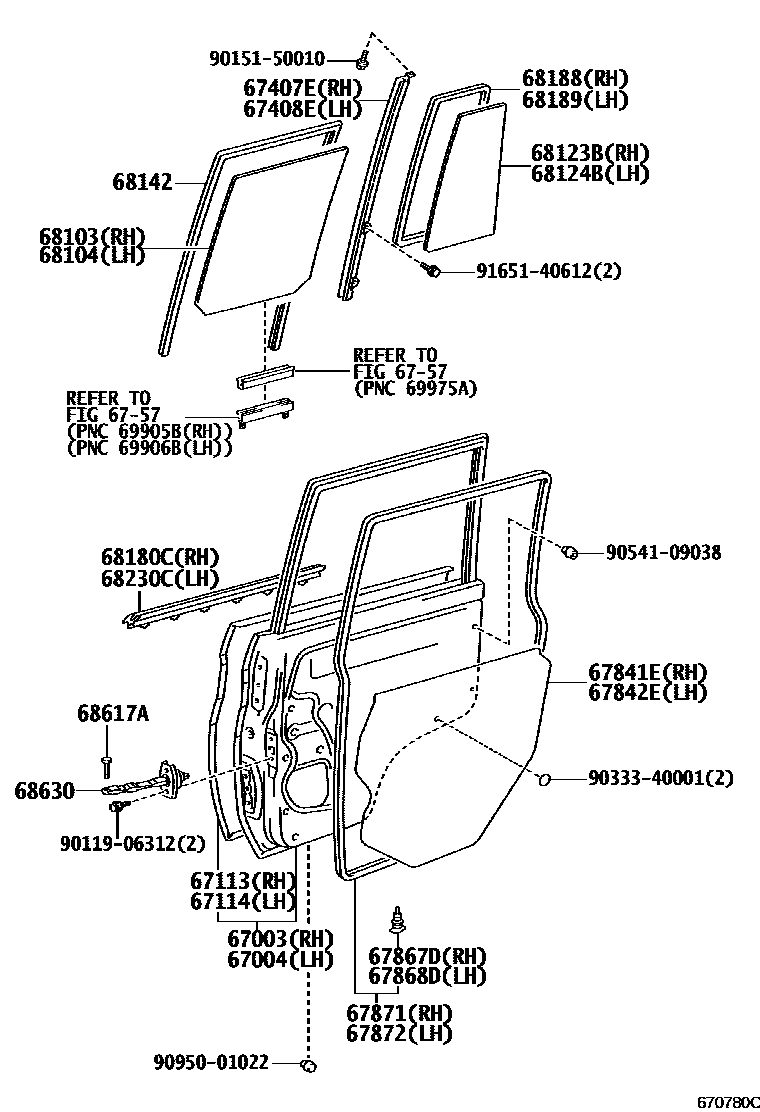

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60050iLJ79,RJ77..STD199004-199208

main67003-60051iKZJ77,LJ79,RJ77199308-199604

main67003-60060iLJ77,79,RJ77..LX199004-199208

main67003-60061iRJ77..GCC199305-199308

main67003-60070iLJ79,RJ77..STD199004-199208

W(*OF)

main67003-60071iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX199308-199604

W(*OF)

main67003-60080iLJ77,79,RJ77..LX199004-199208

W(*OF)

main67003-60081iRJ77..GCC199305-199308

W(*OF)

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60050iLJ79,RJ77..STD199004-199208

main67004-60051iLJ79,RJ77..STD199208-199305

main67004-60060iLJ77,79,RJ77..LX199004-199208

main67004-60061iRJ77..GCC199305-199308

main67004-60070iLJ79,RJ77..STD199004-199208

W(*OF)

main67004-60071iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX199308-199604

W(*OF)

main67004-60080iLJ77,79,RJ77..LX199004-199208

W(*OF)

main67004-60081iRJ77..GCC199305-199308

W(*OF)

67113PANEL, REAR DOOR, OUTER RH

main67113-60050iKZJ77,LJ79,RJ77..GEN199305-199308

main67113-60060iLJ77,79,RJ77..LX199004-199305

main67113-60070iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX199308-199604

W(*OF)

main67113-60080iRJ77..GCC199305-199308

W(*OF)

67114PANEL, REAR DOOR, OUTER LH

main67114-60050iKZJ77,LJ79,RJ77199308-199604

main67114-60060iLJ77,79,RJ77..LX199004-199305

main67114-60070iLJ79..STD;LJ79..LHD..LX;KZJ77,RJ77..LX..GEN199305-199308

W(*OF)

main67114-60080iRJ77..GCC199305-199308

W(*OF)

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-60020iLJ77,79,RJ77199004-199305

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-60020iKZJ77,LJ79,RJ77199305-199604

6757REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-57

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-60050iLJ77,79,RJ77199004-199305

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-60050iLJ77,79,RJ77199004-199305

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×18iKZJ77,LJ79,RJ77199305-199604

main67868-22020×18iLJ77,79,RJ77199004-199305

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×18iKZJ77,LJ79,RJ77199305-199604

main67868-22020×18iLJ77,79,RJ77199004-199305

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60030iLJ77,79,RJ77199004-199305

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60030iLJ77,79,RJ77199004-199305

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-60040iLJ79,RJ77..STD199004-199201

*TEM,T=4.0

main68113-60050iLJ77,79,RJ77..LX199004-199201

*TT,T=4.0

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-60040iLJ79,RJ77..STD199004-199201

*TEM,T=4.0

main68114-60050iLJ77,79,RJ77199201-199305

*TT,T=4.0

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-60040iLJ79,RJ77..STD199004-199201

*TEM,T=3.5

main68123-60050iLJ77,79,RJ77199201-199305

*TT,T=3.5

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-60040iLJ77,79,RJ77..GEN199201-199305

*TEM,T=3.5

main68124-60050iLJ77,79,RJ77..LX199004-199201

*TT,T=3.5

68142RUN, REAR DOOR GLASS

main68142-60020×2iLJ77,79,RJ77199004-199305

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-60020iKZJ77,LJ79,RJ77199305-199604

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60020iLJ79,RJ77199004-199305

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60020iLJ79,RJ77199004-199305

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-60020iLJ77,79,RJ77199004-199305

68617APIN, REAR DOOR CHECK

main68617-20011×2iLJ77,79,RJ77199111-199305

main68617-90A01×2iLJ77,79,RJ77199004-199111

68630CHECK ASSY, REAR DOOR

main68630-60020×2iLJ77,79,RJ77199004-199201

main68630-60040×2iLJ77,79,RJ77199201-199305

9011906312

main90119-06312

9015150010

main90151-50010

9033340001

main90333-40001

9054109038

main90541-09038

9095001022

main90950-01022

9165140612

main91651-40612

30 parts on this diagram · 2 diagrams in section
