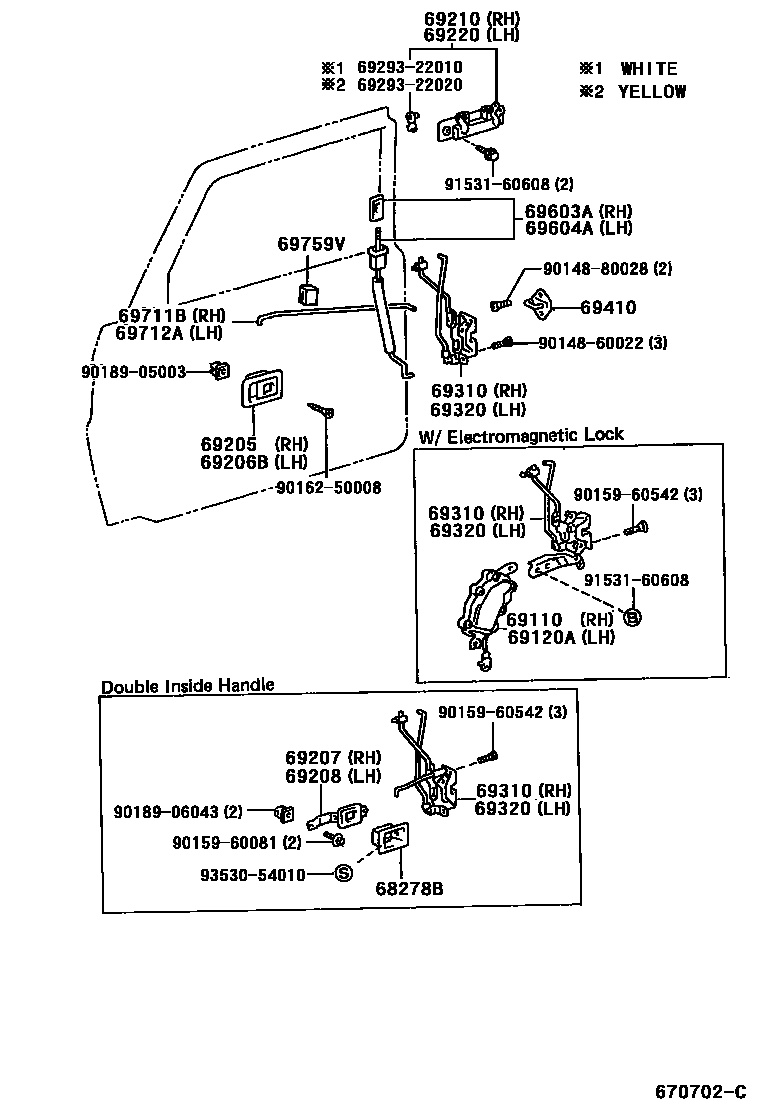

FRONT DOOR LOCK & HANDLE
68278BBEZEL, DOOR INSIDE HANDLE
LIGHT SABLE,TRIM4#
LIGHT GRAY,TRIM1#
BLUE GRAY,TRIM1#
LIGHT OAK,TRIM4#
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
COLOMBIA CKD PACKAGE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
LIGHT GRAY,TRIM1#
LIGHT SABLE,TRIM4#
BLUE GRAY,TRIM1#
LIGHT OAK,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT SABLE,TRIM4#
LIGHT OAK,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
LIGHT GRAY,TRIM1#
LIGHT SABLE,TRIM4#
BLUE GRAY,TRIM1#
LIGHT OAK,TRIM4#
LIGHT BLUE,TRIM1#
LIGHT SABLE,TRIM4#
LIGHT OAK,TRIM4#
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-12070-07iFJ70..LX..GCC;FJ73..STD..GEN;FJ70,75,FZJ70,75,HZJ75,LJ70,72,PZJ70,75,RJ70..LHD..HT..GEN199105-199208
LIGHT SABLE,TRIM4#
LIGHT GRAY,TRIM1#
BLUE GRAY,TRIM1#
LIGHT OAK,TRIM4#
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
LIGHT SABLE,TRIM4#
LIGHT GRAY,TRIM1#
BLUE GRAY,TRIM1#
MD.OAK,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
69310LOCK ASSY, FRONT DOOR, RH
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(DOUBLE INSIDE HANDLE & *EL)
W(DOUBLE INSIDE HANDLE & *EL)
W(DOUBLE INSIDE HANDLE)
main69310-90K01iFJ70..LX..GCC;FJ70,75,FZJ70,75,HZJ75,LJ70,72,PZJ70,75,RJ70..LHD..HT..GEN199001-199208
W(DOUBLE INSIDE HANDLE)
69320LOCK ASSY, FRONT DOOR, LH
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(*EL)
W(DOUBLE INSIDE HANDLE)
W(DOUBLE INSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69603AROD SUB-ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
LIGHT GRAY,TRIM1#
LIGHT SABLE,TRIM4#
LIGHT OAK,TRIM4#
main69603-90K00-13iHZJ75..STD;FZJ75..LHD..IV;FZJ70..HT..CBR;HZJ75..LX..GCC;FZJ75..STD..ARL;FZJ73,75,HZJ70..(GCC,GEN,SA)..CBU199305-199908
LIGHT GRAY,TRIM1#
main69603-90K00-16iFZJ75..CBR;HZJ75..LX..GCC;FZJ75,HZJ75..STD..(DSL,EFI);FJ7#,FZJ70,73,HJ75,HZJ70,73,LJ70,72,PZJ7#,RJ70199001-199305
LIGHT SABLE,TRIM4#
BLUE GRAY,TRIM1#
LIGHT OAK,TRIM4#
COLOMBIA HI-GRADE PACKAGE,LIGHT GRAY,TRIM1#; W(*EL),LIGHT GRAY,TRIM1#
main69603-90K02-16iFZJ7#,HZJ7#,KZJ70,RJ70..LHD..LX; FZJ73..STD..GEN; FZJ75,HZJ75..LX..ARL199305-199501
COLOMBIA HI-GRADE PACKAGE,LIGHT SABLE,TRIM4#; LIGHT SABLE,TRIM4#; W(*EL),LIGHT SABLE,TRIM4#
BLUE GRAY,TRIM1#
COLOMBIA HI-GRADE PACKAGE,LIGHT OAK,TRIM4#; W(*EL),LIGHT OAK,TRIM4#
69604AROD SUB-ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
LIGHT GRAY,TRIM1#
LIGHT SABLE,TRIM4#
LIGHT OAK,TRIM4#
LIGHT GRAY,TRIM1#
main69604-90K00-16iFZJ75..CBR;HZJ75..LX..GCC;FZJ75,HZJ75..STD..(DSL,EFI);FJ7#,FZJ70,73,HJ75,HZJ70,73,LJ70,72,PZJ7#,RJ70199001-199305
LIGHT SABLE,TRIM4#
BLUE GRAY,TRIM1#
main69604-90K00-E0iHZJ7#..HT..GEN;HZJ75..GEN..IV;HZJ75..LX..GCC;FZJ7#..(GCC,GEN)..CBR;HZJ75..LHD..PIC..GEN..CBU;FZJ75,HZJ75..STD..(ARL,GCC)..(DSL,EFI)199501-199908
LIGHT OAK,TRIM4#
COLOMBIA HI-GRADE PACKAGE,LIGHT GRAY,TRIM1#; W(POWER DOOR LOCK),LIGHT GRAY,TRIM1#
main69604-90K02-16iFZJ7#,HZJ7#,KZJ70,RJ70..LHD..LX; FZJ73..STD..GEN; FZJ75,HZJ75..LX..ARL199305-199501
COLOMBIA HI-GRADE PACKAGE,LIGHT SABLE,TRIM4#; LIGHT SABLE,TRIM4#; W(POWER DOOR LOCK),LIGHT SABLE,TRIM4#
W(*EL),BLUE GRAY,TRIM1#
COLOMBIA HI-GRADE PACKAGE,LIGHT OAK,TRIM4#; W(POWER DOOR LOCK),LIGHT OAK,TRIM4#
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
W(DOUBLE INSIDE HANDLE)
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
W(DOUBLE INSIDE HANDLE)
69759VSILENCER, FRONT DOOR LOCK LINK
main69759-30021×2iHZJ75..RHD;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,73,75..CBR;FZJ70,75,HZJ70..ARL;FJ7#,FZJ71,74,78,79,HDJ7#,HJ75,HZJ71,73,79,LJ7#,PZJ7#,RJ7#199001-199305
6929322010HANDLE, BACK DOOR
main69293-22010
6929322020HANDLE, BACK DOOR
main69293-22020
9014860022
main90148-60022
9014880028
main90148-80028
9015960081
main90159-60081
9015960542
main90159-60542
9016250008
main90162-50008
9018905003
main90189-05003
9018906043
main90189-06043
9153160608
main91531-60608
9353054010
main93530-54010
28 parts on this diagram · 1 diagram in section
