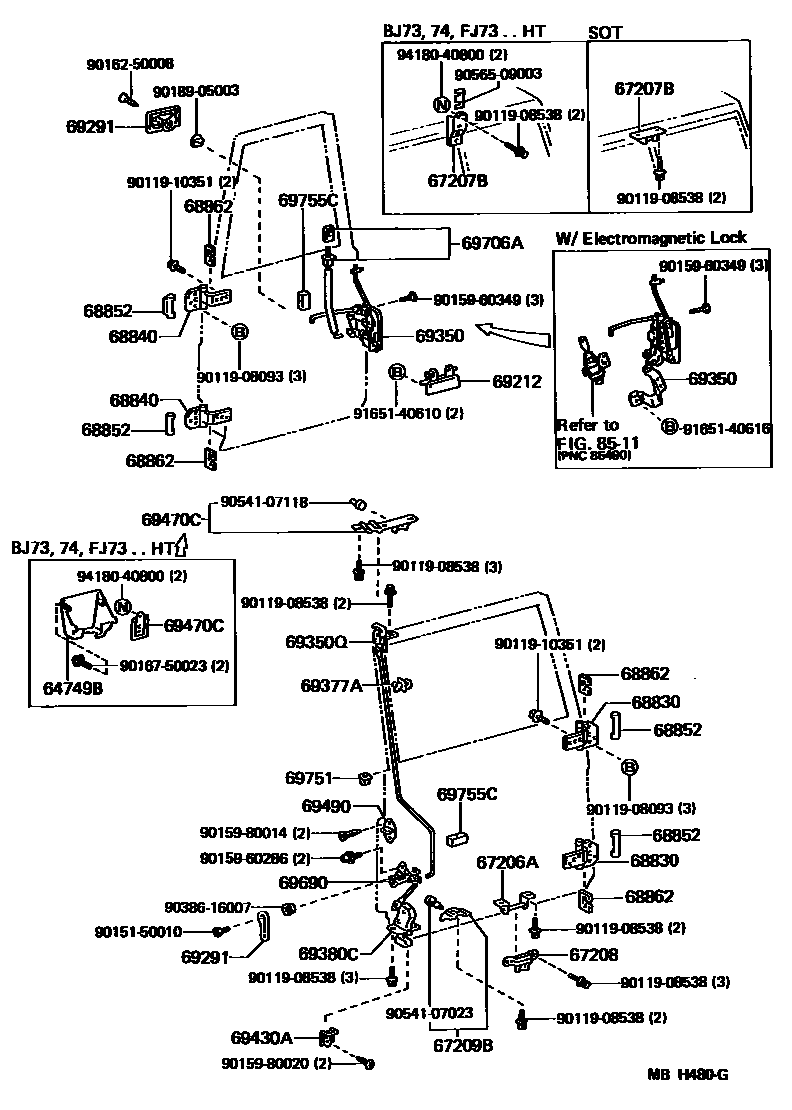

BACK DOOR LOCK & HINGE
64749BCOVER, BACK DOOR STRIKER
67206ABRACKET SUB-ASSY, BACK DOOR STOPPER
LH,W/*AFT
67207BSTOPPER SUB-ASSY, BACK DOOR, UPPER
67208STOPPER SUB-ASSY, BACK DOOR, NO.2
LH,W/*AFT
RH
67209BSTOPPER SUB-ASSY, BACK DOOR, LOWER
68830HINGE ASSY, BACK DOOR, RH
UPR
LWR
68840HINGE ASSY, BACK DOOR, LH
UPR
UPR,W/*AFT
LWR
LWR,W/*AFT
68852COVER, BACK DOOR HINGE
RH,UPR,W/*AFT
LH,UPR,W/*AFT
LWR
LH,LWR,W/*AFT
68862PAD, BACK DOOR HINGE
69212HANDLE, BACK DOOR OUTSIDE, LH
69291HANDLE ASSY, BACK DOOR INSIDE
main69206-10050-03iBJ70,FJ70,RJ70..HT..(ARL,ME); FJ70..LHD..HT..GEN; LJ70..LHD..TD; LJ70..RHD..TD; RJ70..HT..ARL198510-198608
GRAY,GRAY; LH,GRAY,GRAY; LH,W/O RR SEAT,GRAY,GRAY; W/*FFRS,LH,GRAY,GRAY
main69206-10050-06iBJ70,FJ70,RJ70..HT..(ARL,ME); FJ70..LHD..HT..GEN; LJ70..LHD..TD; LJ70..RHD..TD; RJ70..HT..ARL198510-198608
BROWN,SEPIA BROWN; LH,BROWN,SEPIA BROWN; LH,W/O RR SEAT,BROWN,SEPIA BROWN; W/*FFRS,LH,BROWN,SEPIA BROWN
main69209-90K00-03iBJ70,75,FJ70,75,HJ75,LJ70,RJ70..(HT,SOT)..(CBR,DSL)..(GEN,ME); BJ70,FJ70,75,HJ75..HT..ARL; LJ70..LHD..TD; LJ70..RHD..TD..GEN; RJ70..SOT..ARL198510-198608
LH,GRAY,SHADOW GRAY; LH,W/O RR SEAT,GRAY,SHADOW GRAY
main69209-90K00-06iBJ70,75,FJ70,75,HJ75,LJ70,RJ70..(HT,SOT)..(CBR,DSL)..(GEN,ME); BJ70,FJ70,75,HJ75..HT..ARL; LJ70..LHD..TD; LJ70..RHD..TD..GEN; RJ70..SOT..ARL198510-198608
LH,BROWN,SEPIA BROWN; LH,W/O RR SEAT,BROWN,SEPIA BROWN
RH
69350LOCK ASSY, BACK DOOR
main69350-90K04iBJ70,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME); BJ73,74,FJ73,75,HJ75,LJ70,RJ70..(HT,SOT)..ARL198510-198608
W/ELECTROMAGNETIC LOCK
69350QLOCK ASSY, BACK DOOR, UPPER
W/DETACHABLE DOOR FRAME
69377ASNAP, BACK DOOR UPPER LOCK ROD
69380CLOCK ASSY, BACK DOOR, LOWER
69430ASTRIKER ASSY, BACK DOOR LOWER LOCK
69470CSTRIKER ASSY, BACK DOOR UPPER LOCK
69490STRIKER ASSY, BACK DOOR LOCK
69690CONTROL ASSY, BACK DOOR REMOTE
69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
main69706-90K02-03iBJ70,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME); BJ73,74,FJ73,75,HJ75,LJ70,RJ70..(HT,SOT)..ARL198510-198608
W/ELECTROM AGNETIC LOCK,GRAY,SHADOW GRAY; W/ELECTROMAGNETIC LOCK,GRAY,SHADOW GRAY
main69706-90K02-06iBJ70,75,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..(GEN,ME); BJ73,74,FJ73,75,HJ75,LJ70,RJ70..(HT,SOT)..ARL198510-198608
W/ELECTROM AGNETIC LOCK,BROWN,SEPIA BROWN; W/ELECTROMAGNETIC LOCK,BROWN,SEPIA BROWN
69751HOLDER, DOOR LOCK CONTROL KNOB
69755CSILENCER, BACK DOOR LOCK LINK
8511DOOR MOTOR & DOOR SOLENOID
9011908093
main90119-08093
9011908538
main90119-08538
9011910351
main90119-10351
9015150010
main90151-50010
9015960286
main90159-60286
9015960349
main90159-60349
9015980014
main90159-80014
9015980020
main90159-80020
9016250008
main90162-50008
9016750023
main90167-50023
9018905003
main90189-05003
9038616007
main90386-16007
9054107023
main90541-07023
9054107118
main90541-07118
9056509003
main90565-09003
9165140610
main91651-40610
9165140616
main91651-40616
9418040800
main94180-40800
41 parts on this diagram · 1 diagram in section
