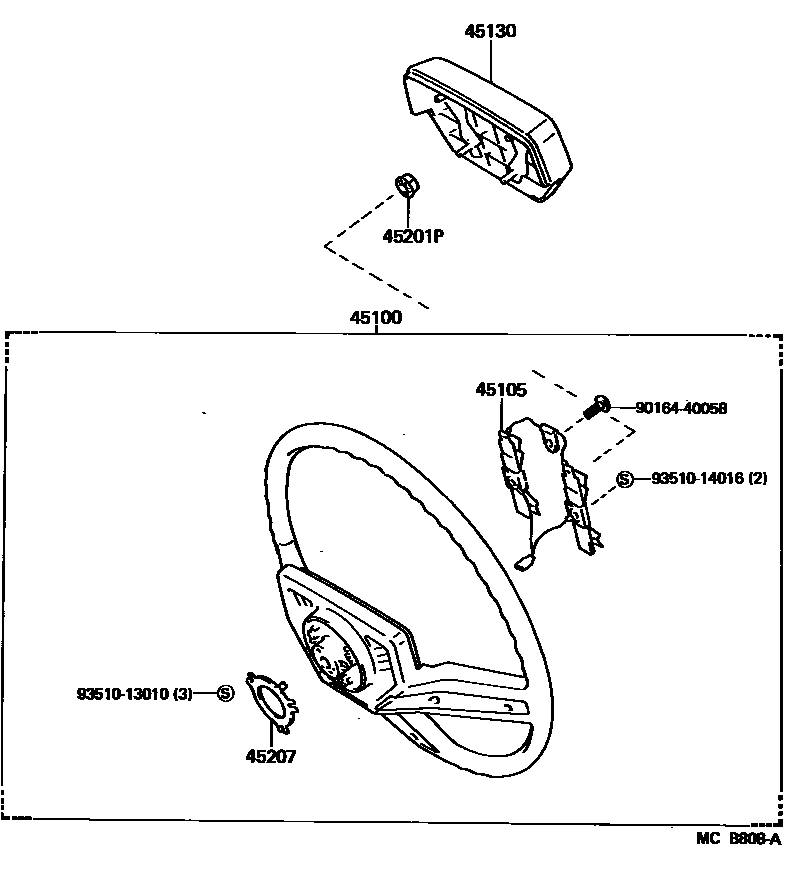

STEERING WHEEL
45100WHEEL ASSY, STEERING
main45100-60120-03iFJ75..GEN,ME;BJ70,73,75,FJ70,73,HJ75,LJ70,RJ70..STD..(GEN,ME); RJ70..STD..ARL198608-199001
3SPOKE,POLYPROPYLENE,GRAY,SHADOW GRAY; 3SPOKE,POLYPROPYLENE,SHADOW GRAY
main45100-60120-06iFJ75..GEN,ME;BJ70,73,75,FJ70,73,HJ75,LJ70,RJ70..STD..(GEN,ME); RJ70..STD..ARL198608-199001
3SPOKE,POLYPROPYLENE,BROWN,SEPIA BROWN
main45100-60130-03iBJ70,73,74,FJ7#,HJ75,LJ70,RJ70..(HT,PIC)..(ARL,SA); BJ70,73,75,FJ7#,HJ75,LJ70,RJ70..HT..GEN; FJ70,73,RJ70..(LX,VX)..ME198608-199001
2-SPOKE,URETHANE,GRAY,SHADOW GRAY; 2-SPOKE,URETHANE,GRAY,URETHANE,SHADOW GRAY; 2-SPOKE,URETHANE,SHADOW GRAY
main45100-60130-06iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT..(ARL,GEN); FJ70,73,RJ70..HT..ME; FJ75..ARL..IV;HJ75..RHD..PIC..5F;FJ75..RHD..PIC..5F..CBU198411-198608
2-SPOKE,URETHANE,BROWN,URETHANE,SEPIA BROWN
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-60030iFJ75..GEN,ME;BJ70,73,75,FJ70,73,HJ75,LJ70,RJ70..STD..(GEN,ME); RJ70..STD..ARL198608-199001
main45105-60040iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT; FJ75..ARL..IV;HJ75..RHD..PIC..5F;FJ75..RHD..PIC..5F..CBU198411-198608
URETHANE
45130BUTTON ASSY, HORN
GRAY,SHADOW GRAY
BROWN,SEPIA BROWN
main45130-60080-03iBJ7#,FJ7#,HJ75,LJ70,RJ70..HT; FJ75..ARL..IV;HJ75..RHD..PIC..5F;FJ75..RHD..PIC..5F..CBU198411-198608
GRAY,URETHANE,SHADOW GRAY
BROWN,URETHANE,SEPIA BROWN
45201PNUT, STEERING WHEEL SET
45207RING, HORN CONTACT
main45176-20030iFJ75..GEN,ME;BJ70,73,75,FJ70,73,HJ75,LJ70,RJ70..STD..(GEN,ME); RJ70..STD..ARL198608-199001
9016440058
main90164-40058
9351013010
main93510-13010
9351014016
main93510-14016
8 parts on this diagram · 2 diagrams in section
