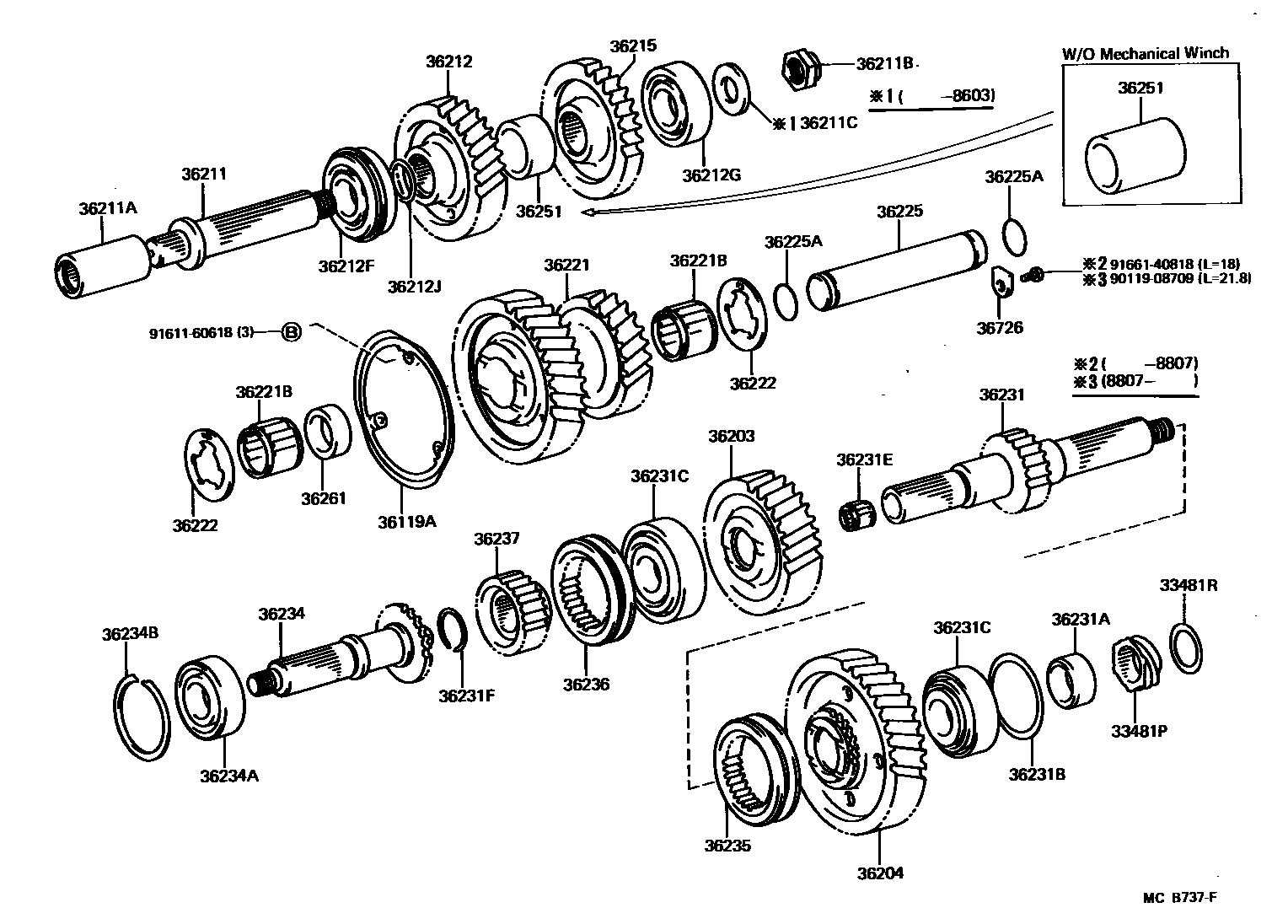

TRANSFER GEAR
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=6,MARK 6:18,N=6,VENEZUELA SPEC
N=6,MARK 6:18,N=6,SMG R=18:6
N=6,MARK 6:18-20,N=6,VENEZUELA SPEC
N=6,MARK 6:18-20,N=6
N=6,MARK 6:15-17,SMG R=17:6
N=6,MARK 6:15-17,N=6
N=6,MARK 6:15-17,N=6
N=7,MARK 7:16-17,N=7,SOUTH AFRICA SPEC
N=7,MARK 7:16-17,N=7
N=7,MARK 7:16-17,N=7
N=5
N=5,MARK 5:17-19,N=5
33481RWASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR)
36119ARECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR)
36203GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT
36204GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT
36211SHAFT, TRANSFER INPUT
36211AYOKE, TRANSMISSION SLEEVE
36211BNUT (FOR TRANSFER INPUT SHAFT)
36211CWASHER, PLATE (FOR TRANSFER INPUT SHAFT)
36212GEAR, TRANSFER INPUT
N=34
N=32
36212FBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)
36212GBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR)
36212JRING, O (FOR TRANSFER INPUT GEAR)
36215GEAR, POWER TAKE-OFF DRIVE
W/MECHANICAL WINCH
36221GEAR, TRANSFER IDLER
36221BBEARING (FOR TRANSFER IDLER GEAR)
36222WASHER, TRANSFER IDLER GEAR SIDE THRUST
36225SHAFT, TRANSFER IDLER GEAR
36225ARING, O (FOR TRANSFER IDLER SHAFT)
36231SHAFT, TRANSFER OUTPUT, REAR
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
T=17.5
36231BSHIM (FOR TRANSFER OUTPUT SHAFT)
T=0.15,T=0.15
T=0.40,T=0.40
T=0.50,T=0.50
T=0.60,T=0.60
T=0.70,T=0.70
T=0.80,T=0.80
T=0.90,T=0.90
T=1.00,T=1.00
T=1.10,T=1.10
T=1.20,T=1.20
T=1.30,T=1.30
T=1.40,T=1.40
T=1.50,T=1.50
36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
FR
RR
RR
RR
RR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=2.30-2.35,MARK 11,T=2.3
T=2.6-2.65,MARK 17,T=2.6
36234SHAFT, TRANSFER OUTPUT, FRONT
ELECTRIC TYPE
MECHANICAL TYPE
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
T=1.6
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
36251SPACER, TRANSFER INPUT SHAFT
W/MECHANICAL WINCH
36261SPACER, TRANSFER IDLER GEAR
36726PLATE, LOCK (FOR TRANSFER GEAR)
9011908709
main90119-08709
9161160618
main91611-60618
9166140818
main91661-40818
37 parts on this diagram · 3 diagrams in section
