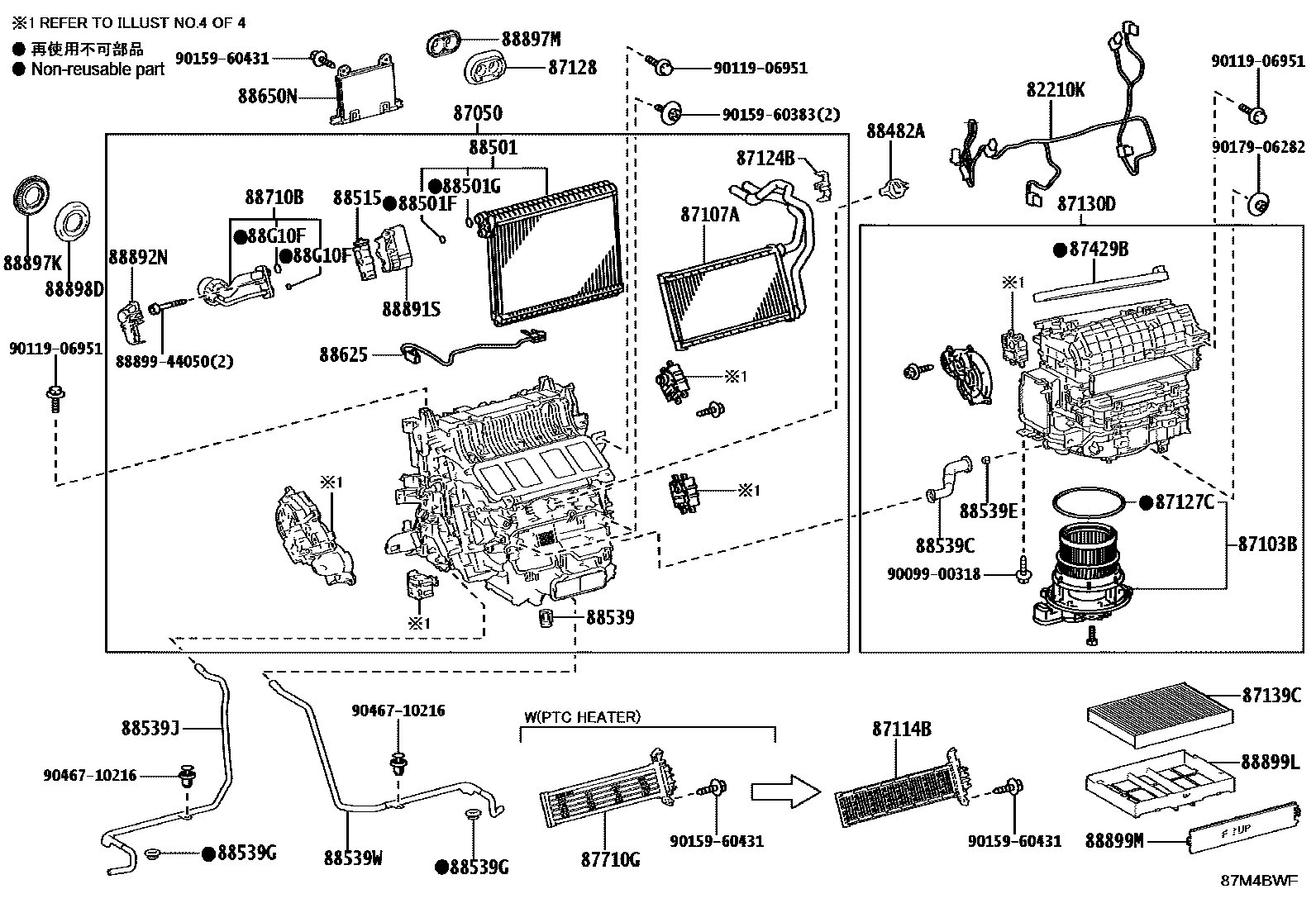

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
main82212-60630iGDJ250,TJA250,TRJ250..LHD..R; GDJ250,TJA250..LHD..A; TRJ250..LHD..R;GDJ250,TJA250..LHD..8FC..R202401
HIGH GRADE PACKAGE FOR AR; MIDDLE GRADE PACKAGE FOR AR
REAR AIR CONDITIONER-WITHOUT
87050RADIATOR ASSY, AIR CONDITIONER
HIGH GRADE PACKAGE FOR AR&REAR AIR CONDITIONER-WITH; MIDDLE GRADE PACKAGE FOR AR&REAR AIR CONDITIONER-WITH; REAR AIR CONDITIONER-WITH
HIGH GRADE PACKAGE FOR AR; MIDDLE GRADE PACKAGE FOR AR
main87050-60R60iGDJ250,TJA250,TRJ250..LHD..R..(GCC,GEN,RUS); GDJ250,TJA250..LHD..A..(GCC,GEN,RUS); TRJ250..LHD..R;GDJ250,TJA250..LHD..8FC..R..(GCC,GEN,RUS)202401
HIGH GRADE PACKAGE FOR AR; MIDDLE GRADE PACKAGE FOR AR
REAR AIR CONDITIONER-WITH
REAR AIR CONDITIONER-WITHOUT
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87124BCLAMP, HEATER
87127CPACKING, BLOWER MOTOR SUB-ASSY, NO.1
87128GROMMET, HEATER
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
DEODORANT FILTER
POLLEN FILTER,OE PART
87429BPACKING, COOLER UNIT, NO.1
87710GQUICK HEATER ASSY
COLD AREA SPEC
88482ACOVER
main88899-60600iGDJ251..U;TJA250,TRJ250..R,U;GDJ250..LHD..(R,U);GDJ250..RHD..(A,R,U)..(GEN,SA)202401
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88539CHOSE, COOLER UNIT DRAIN, NO.2
88539EHOSE, COOLER UNIT DRAIN, NO.3
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
88539WHOSE, DRAIN COOLER, NO.2
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
main886H0-60070iGDJ250,TJA250,TRJ250..R..RUS; GDJ250..LHD..(R,U)..EUR;GDJ25#,TJA250,TRJ250..(R,U)..(ARL,GCC,GEN); GDJ250..R..SA202401
REAR AIR CONDITIONER-WITH; REAR AIR CONDITIONER-WITH&REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL; REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL
88710BTUBE ASSY, AIR CONDITIONER
88891SCOVER, COOLER, NO.1
88892NCOVER, COOLER, NO.2
88897KGROMMET, (FOR COOLER PIPE)
88897MGROMMET (FOR HEATER PIPE)
88898DGROMMET
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
88G10FRING, O, NO.3 (FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
ID=13.4,OD=18.2
8889944050COVER, EVAPORATOR
main88899-44050
9009900318
main90099-00318
9011906951
main90119-06951
9015960383
main90159-60383
9015960431
main90159-60431
9017906282
main90179-06282
9046710216
main90467-10216
41 parts on this diagram · 10 diagrams in section
