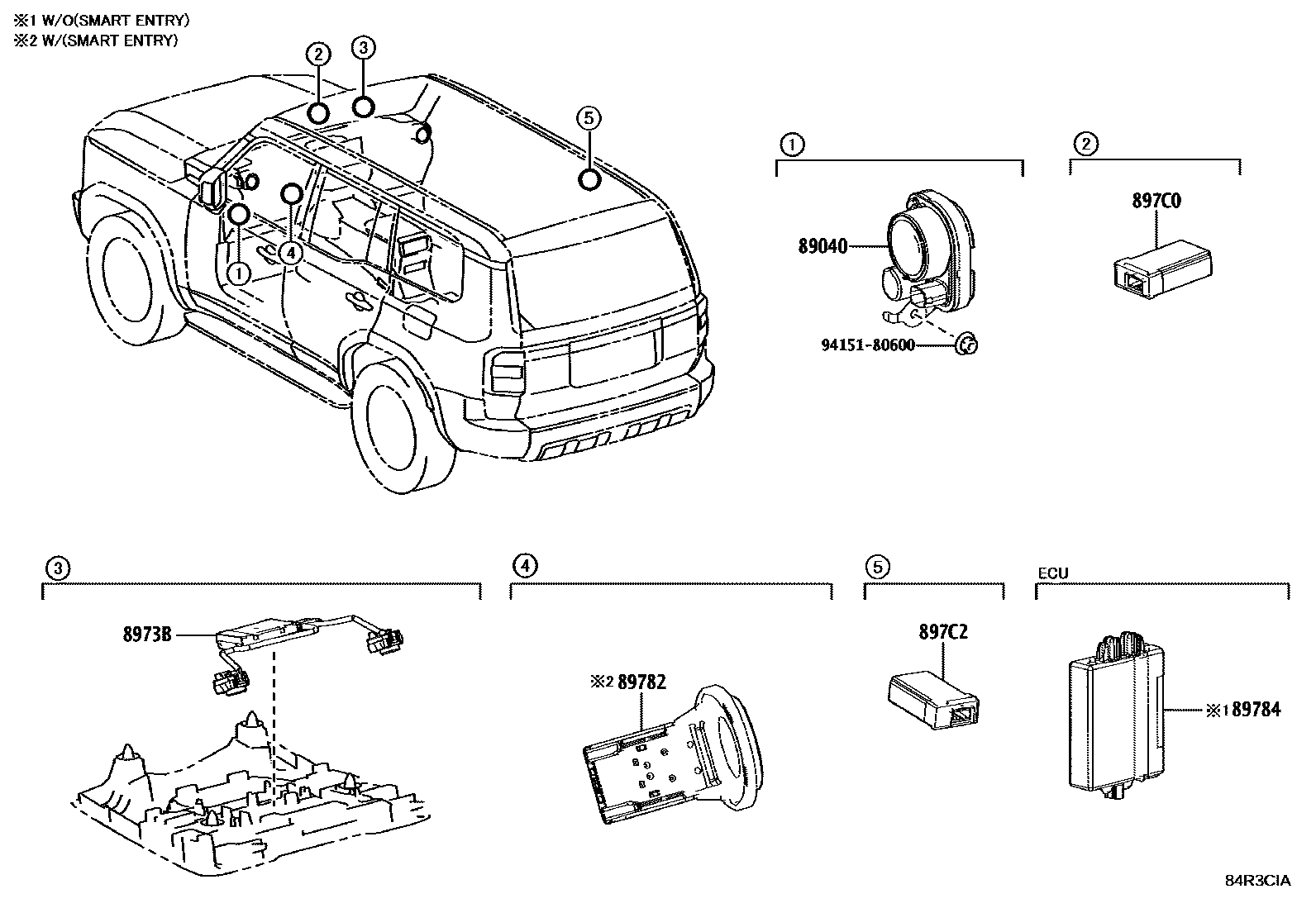

ANTI-THEFT DEVICE
89040SIREN ASSY, THEFT WARNING
TYPE A:REFER ILLUST.
main89040-60180iTJA250,TRJ250..RUS;GDJ250..(A,L,R)..RUS;GDJ250..LHD..U..(EUR,RUS); TJA250..(A,L)..GEN;GDJ250..LHD..(A,L,R)..GEN202401
ANTI-THEFT SYSTEM-ALARM & SIREN & *IS & TILT
ANTI-THEFT SYSTEM-WITH,TYPE B:REFER ILLUST.; DESTINATION PACKAGE(ERP)-CYPRUS SPEC&ANTI-THEFT SYSTEM-WITH,TYPE B:REFER ILLUST.; DESTINATION PACKAGE(ERP)-MALTA SPEC&ANTI-THEFT SYSTEM-WITH,TYPE B:REFER ILLUST.
8973BSENSOR, THEFT WARNING ULTRASONIC & TILT
89782COIL, TRANSPONDER KEY
89784COMPUTER, IMMOBILIZER CODE
main89784-60220supersedes 89784-60210iGDJ250,TRJ250..LHD..U..GEN; TRJ250..R..(GCC,GEN);GDJ250..RHD..(GEN,SA);GDJ250..LHD..(EUR,GCC);GDJ250..LHD..(A,L,R)..GEN;GDJ251,TJA250..ARL,GCC,GEN202401
WIRELESS DOOR LOCK-SMART ENTRY; WIRELESS DOOR LOCK-SMART ENTRY(PANIC)
897C0TRANSCEIVER ASSY, ELECTRICAL KEY RANGING
DESTINATION PACKAGE(ASIA)-VIETNAM SPEC&ANTI-THEFT SYSTEM-ALARM & SIREN & *IS & TILT
897C2TRANSCEIVER, ELECTRICAL KEY RANGING
DESTINATION PACKAGE(ASIA)-VIETNAM SPEC&ANTI-THEFT SYSTEM-ALARM & SIREN & *IS & TILT
9415180600
main94151-80600
7 parts on this diagram · 2 diagrams in section
