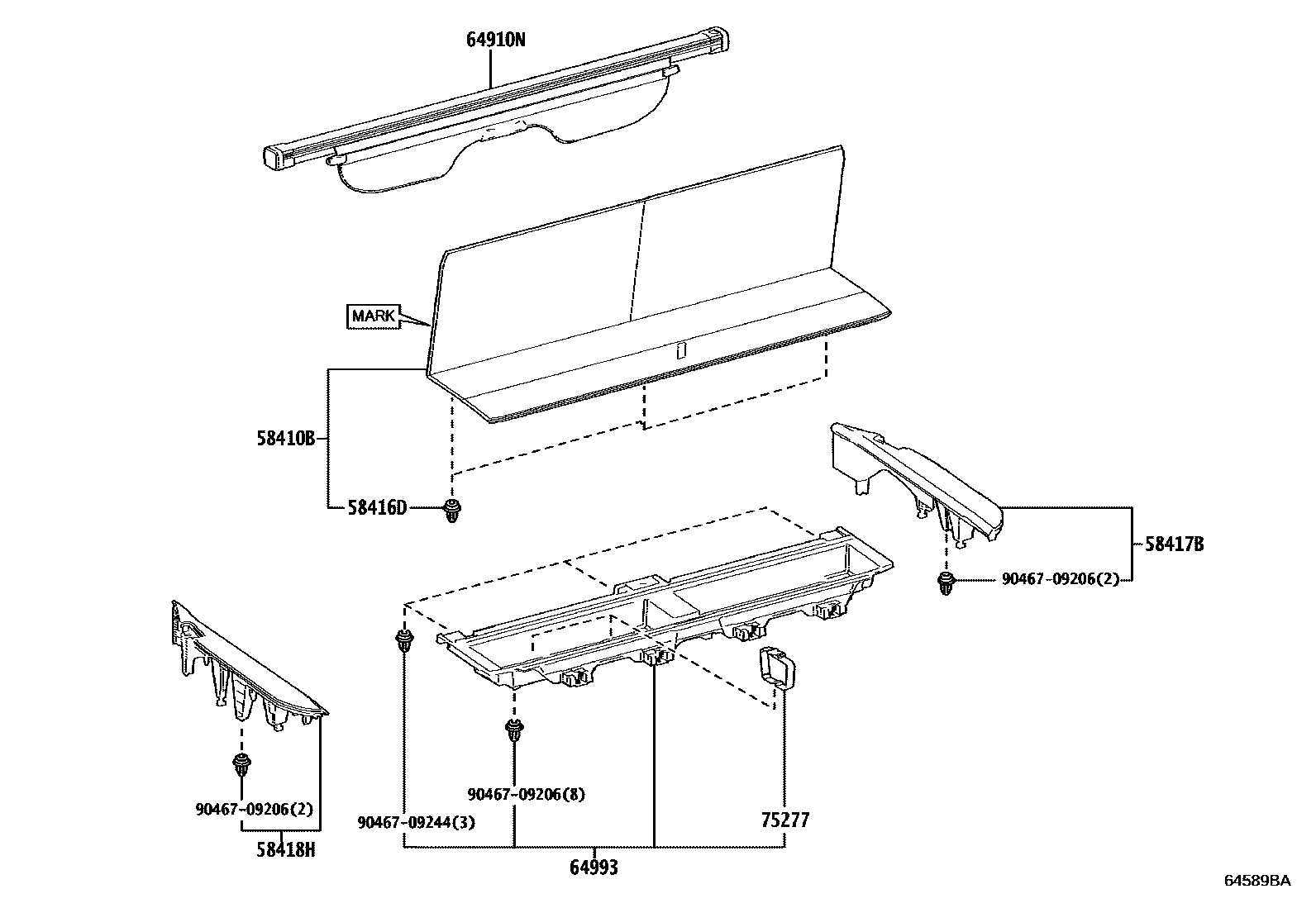

DECK BOARD & DECK TRIM COVER
58410BBOARD ASSY, DECK
main58410-60050-C2supersedes 58410-60100-C2iGDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404
BLACK,TRIM1#,2#,MARK=58410-60050
main58410-60060-C2supersedes 58410-60090-C2iGDJ250,TRJ250..6FC..R;GDJ250,TJA250..R..RUS; GDJ250..LHD..A..EUR;GDJ250,TJA250..A..(GCC,GEN,RUS,SA); GDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA); GDJ250..LHD..U..EUR;GDJ250,TJA250,TRJ250..U..(GCC,GEN,RUS)202401
BLACK,TRIM1#,2#,4#,MARK=58410-60060; BLACK,TRIM1#,2#,MARK=58410-60060; BLACK,TRIM2#,4#,MARK=58410-60060; BLACK,TRIM2#,MARK=58410-60060
BLACK,TRIM1#,2#,MARK=58410-60080; BLACK,TRIM2#,MARK=58410-60080; FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION,BLACK,TRIM1#,2#,MARK=58410-60080; REAR SEAT-6:4 TUMBLE SEAT,BLACK,TRIM2#,4#,MARK=58410-60080
BLACK,TRIM1#,2#,MARK=58410-60090
main58410-60100-C2iGDJ250,TRJ250..6FC..R;GDJ250,TJA250..R..RUS; GDJ250..LHD..A..EUR;GDJ250,TJA250..A..(GCC,GEN,RUS,SA); GDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA); GDJ250..LHD..U..EUR;GDJ250,TJA250,TRJ250..U..(GCC,GEN,RUS)202401
BLACK,TRIM1#,2#,4#,MARK=58410-60100; BLACK,TRIM1#,2#,MARK=58410-60100; BLACK,TRIM2#,4#,MARK=58410-60100; BLACK,TRIM2#,MARK=58410-60100
BLACK,TRIM1#,2#,MARK=58410-60120; BLACK,TRIM2#,MARK=58410-60120; FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION,BLACK,TRIM1#,2#,MARK=58410-60120; REAR SEAT-6:4 TUMBLE SEAT,BLACK,TRIM2#,4#,MARK=58410-60120
58416DCLIP, REAR FLOOR BOARD
main62217-13010×4supersedes 90467-10188iGDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404
FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION; REAR SEAT-6:4 TUMBLE SEAT
main90467-10188supersedes 62217-13010iGDJ250..LHD..(A,R,U)..EUR;GDJ250,TJA250,TRJ250..(A,R,U)..(GCC,GEN,RUS,SA)202401
58417BBOARD, REAR FLOOR, REAR RH
main58417-60090-C3supersedes 58417-60100-C2iGDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404
BLACK,TRIM1#,2#
main58417-60100-C2supersedes 58417-60090-C3iGDJ250,TRJ250..6FC..R;GDJ250,TJA250..R..RUS; GDJ250..LHD..A..EUR;GDJ250,TJA250..A..(GCC,GEN,RUS,SA); GDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA); GDJ250..LHD..U..EUR;GDJ250,TJA250,TRJ250..U..(GCC,GEN,RUS)202401
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
BLACK,TRIM1#,2#; BLACK,TRIM2#,4#; REAR SEAT-6:4 TUMBLE & 5:5,BLACK,TRIM1#,2#
58418HBOARD, REAR FLOOR, REAR LH
main58418-60050-C3supersedes 58418-60060-C2iGDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404
BLACK,TRIM1#,2#
main58418-60060-C2supersedes 58418-60050-C3iGDJ250,TRJ250..6FC..R;GDJ250,TJA250..R..RUS; GDJ250..LHD..A..EUR;GDJ250,TJA250..A..(GCC,GEN,RUS,SA); GDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA); GDJ250..LHD..U..EUR;GDJ250,TJA250,TRJ250..U..(GCC,GEN,RUS)202401
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
BLACK,TRIM1#,2#; BLACK,TRIM2#,4#; REAR SEAT-6:4 TUMBLE & 5:5,BLACK,TRIM1#,2#
64910NCOVER ASSY, TONNEAU
main64910-60290iTJA250..A,R;GDJ250..LHD..R..EUR;GDJ250,TRJ250..(A,R)..RUS; TJA250..A;GDJ250..A..RUS; TJA250..L;GDJ250..L..RUS;GDJ250..LHD..(A,L)..EUR;GDJ251,TRJ250..ARL,GCC,GEN;GDJ250..(A,L,R)..(GCC,GEN,SA); TJA250..R;TRJ250..RUS;GDJ250..LHD..R..(EUR,RUS)202401
BACK DOOR-HATCH DOOR TYPE&TONNEAU COVER-WITH; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)&TONNEAU COVER-WITH; BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)&TONNEAU COVER-WITH; TONNEAU COVER-WITH
TONNEAU COVER-WITH
64993BOX, DECK FLOOR, REAR
main64991-60030supersedes 64993-60020iGDJ250..LHD..(A,R,U)..EUR;GDJ250,TJA250,TRJ250..(A,R,U)..(GCC,GEN,RUS,SA)202401
BLACK; FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION,BLACK; REAR SEAT-6:4 TUMBLE SEAT,BLACK
HIGH GRADE PACKAGE FOR LUX&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION; REAR SEAT-6:4 TUMBLE & 5:5
75277BAND, TOOL, NO.1
9046709206
main90467-09206
9046709244
main90467-09244
9 parts on this diagram · 4 diagrams in section
