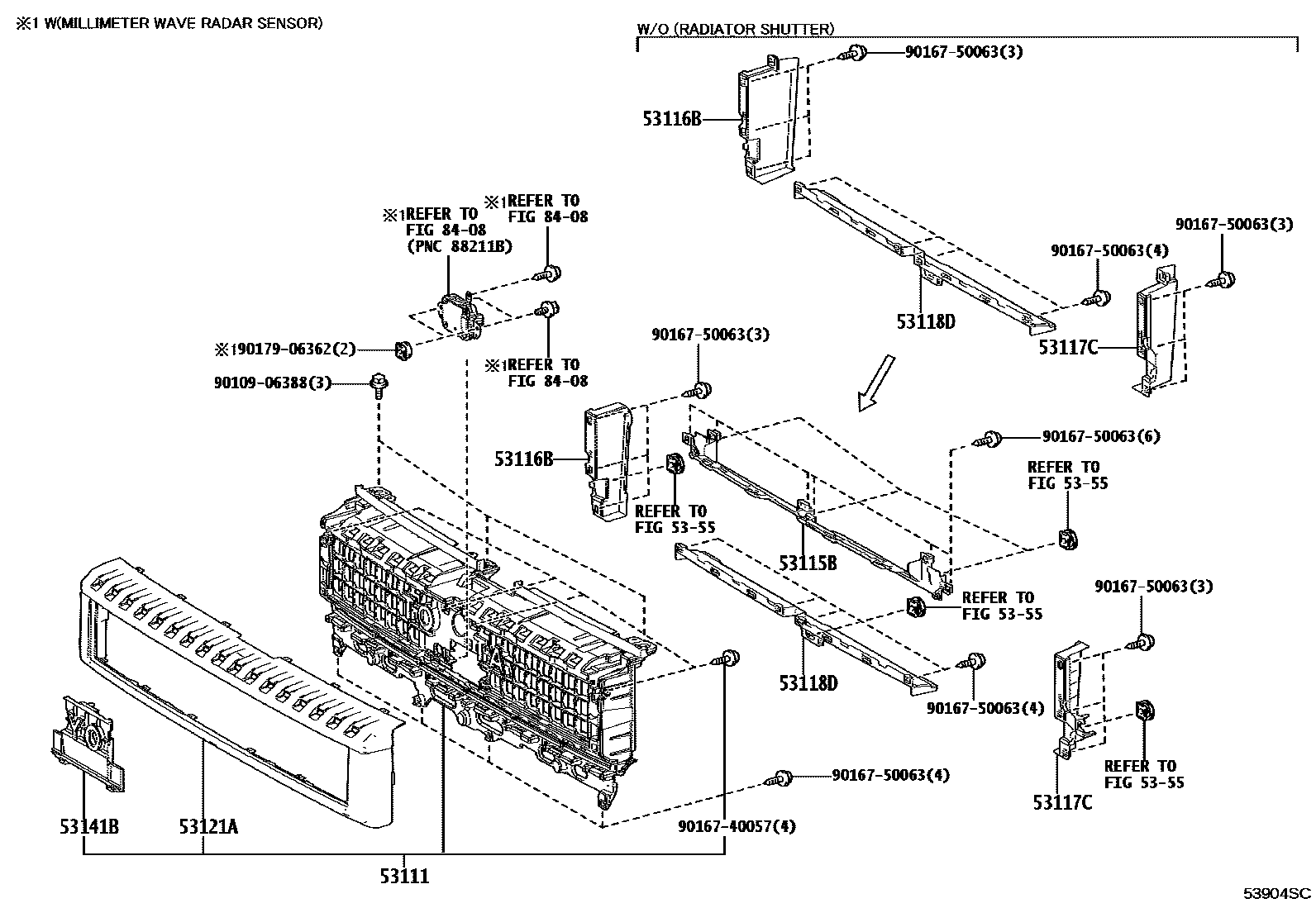

RADIATOR GRILLE
53111GRILLE, RADIATOR
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
PLATED
main53101-60P30iGDJ250,TJA250..8FC..R..(GCC,GEN,SA); GDJ250,TJA250..A..(GCC,GEN,RUS,SA); TJA250..R..GEN202401
NO PAINT REQ.; NO PAINT REQ.,DESTINATION PACKAGE(OTHER-DOMINICAN SPEC&FIRST EDITION PACKAGE&TIRE& DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE; NO PAINT REQ.,FIRST EDITION PACKAGE; NO PAINT REQ.,FIRST EDITION PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE
NO PAINT REQ.; NO PAINT REQ.,FIRST EDITION PACKAGE
53115BBRACKET, RADIATOR GRILLE
main53115-60120iTJA250..(A,R)..GEN; TJA250..(A,R,U)..RUS; TJA250..A..GCC; TJA250..A..GEN; TJA250..R..GEN202401
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&FIRST EDITION PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD; DESTINATION PACKAGE(OTHER-COLOMBIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE; DESTINATION PACKAGE(OTHER-EGYPT SPEC&&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4); DESTINATION PACKAGE(OTHER-EGYPT SPEC&&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4); FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE; FIRST EDITION PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE; TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD; TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD
53116BBRACKET, RADIATOR GRILLE, NO.2
main53116-60100iTJA250..(A,R)..GEN; TJA250..(A,R,U)..RUS; TJA250..A..GCC; TJA250..A..GEN; TJA250..R..GEN202401
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&FIRST EDITION PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD; DESTINATION PACKAGE(OTHER-COLOMBIA SPEC&FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE; DESTINATION PACKAGE(OTHER-EGYPT SPEC&&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4); DESTINATION PACKAGE(OTHER-EGYPT SPEC&&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4); FIRST EDITION PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE; FIRST EDITION PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, SE; TIRE & DISC WHEEL-265/60R20, 7.5J, ALUMINUM, AD; TIRE & DISC WHEEL-265/70R18, 7.5J, ALUMINUM, AD
main53116-60110iGDJ250..LHD..(A,R,U)..EUR;TJA250..(A,R,U)..(GCC,GEN);GDJ25#,TRJ250..(A,R,U)..(ARL,GCC,GEN,RUS,SA)202401
53117CRETAINER, RADIATOR GRILLE, NO.1
53118DRETAINER, RADIATOR GRILLE, NO.2
53121AMOULDING, RADIATOR GRILLE
53141BGARNISH, RADIATOR GRILLE, NO.1
5355FRONT FENDER APRON & DASH PANEL
8408CRUISE CONTROL (AUTO DRIVE)
9010906388
main90109-06388
9016740057
main90167-40057
9016750063
main90167-50063
9017906362
main90179-06362
13 parts on this diagram · 2 diagrams in section
