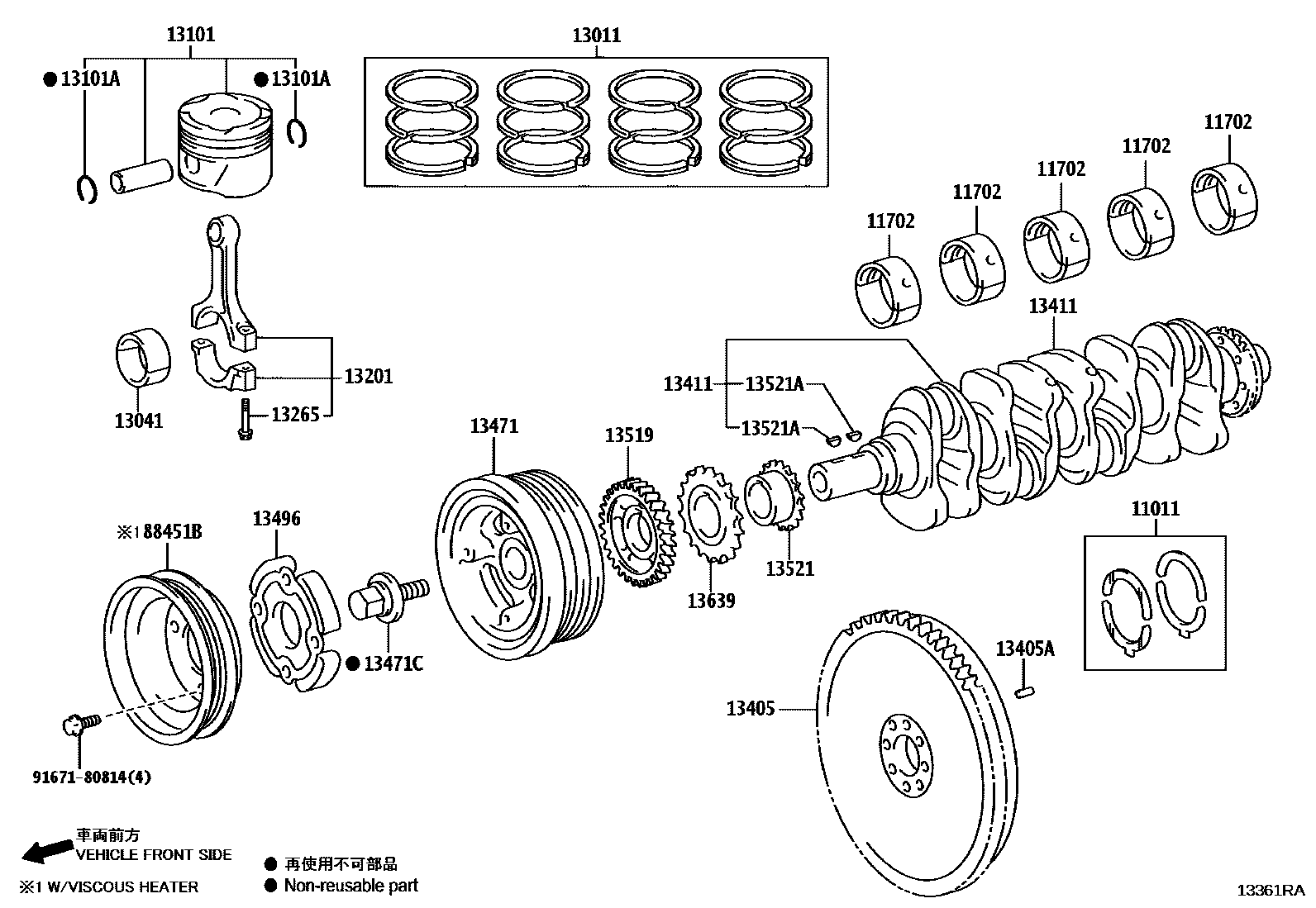

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11702BEARING SET, CRANKSHAFT
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
STD,MARK 2,NO.2,REFER R/M
STD,MARK 3,NO.2,REFER R/M
STD,MARK 4,NO.2,REFER R/M
STD,MARK 5,NO.2,REFER R/M
STD,MARK 6,NO.2,REFER R/M
U/S 0.25,REFER REPAIR MANUAL
13011RING SET, PISTON
main13011-11212i1GDFTV..GDJ250..6FC..U;1GDFTV..GDJ250..LHD..8FC..U..GEN;1GDFTV..GDJ250..(A,L,R)..(GEN,SA); 1GDFTV..GDJ250..R..GCC202401
STD; STD,DESTINATION PACKAGE(OTHER&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS)
main13011-11221i1GDFTV..GDJ250..8FC..(L,R)..GEN;1GDFTV..GDJ250..LHD..8FC..(A,U)..GEN; 1GDFTV..GDJ250..LHD..8FC..GEN; 1GDFTV..GDJ250..LHD..8FC..U..GEN;1GDFTV..GDJ250..8FC..(A,L,R)..GEN; 1GDFTV..GDJ251;1GDFTV..GDJ250..RHD..8FC..U..GEN;1GDFTV..GDJ250..LHD..(EUR,GCC,RUS)202401
STD; STD,COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS); STD,COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO6-RDE; STD,DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS); STD,DESTINATION PACKAGE(OTHER-AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS); STD,DESTINATION PACKAGE(OTHER-GEORGIA SPEC&COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS); STD,DESTINATION PACKAGE(OTHER-GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS); STD,EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS); STD,EXHAUST EMISSION CONTROL-EURO6-RDE
STD
STD
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD
STD
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A,(L),REFER R/M
MARK B,(L),REFER R/M
MARK C,(L),REFER R/M
MARK A,(J),REFER R/M
MARK B,(J),REFER R/M
MARK C,(J),REFER R/M
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5
13411CRANKSHAFT
(L)
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13496COVER, CRANKSHAFT PULLY
13519GEAR, OIL PUMP DRIVE
(L)
(J)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13639SPROCKET, BALANCESHAFT TIMING
88451BPULLEY, CRANKSHAFT(FOR VISCOUS HEATER)
COLD AREA SPEC
9167180814
main91671-80814
20 parts on this diagram · 3 diagrams in section
