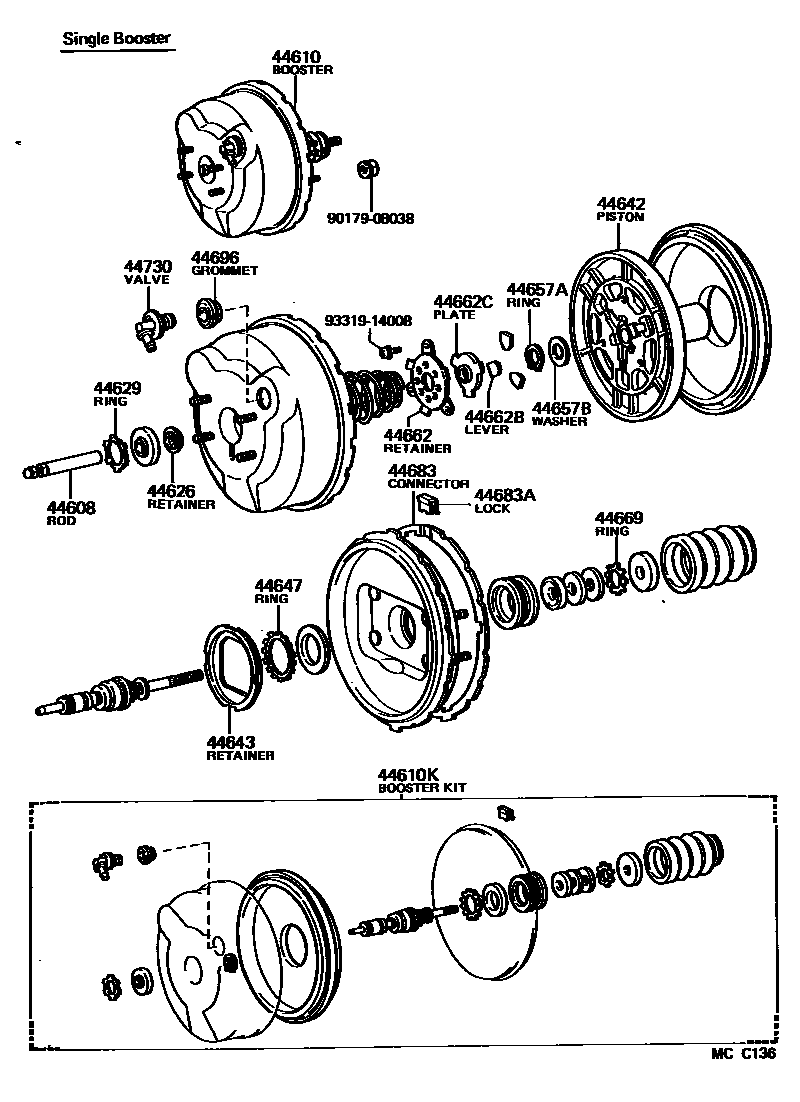

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0006 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-30340iFJ40,43198008-198604

TANDEM BOOSTER

main44606-35100iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

SINGLE BOOSTER

main44608-30350iBJ42,46..ARL,EUR198008-198506

TANDEM BOOSTER

44610BOOSTER ASSY, BRAKE

main44610-60160iFJ4#..GEN198008-198604

FR DRUM BRAKE,SINGLE BOOSTER

main44610-60170iFJ40,43198008-198604

FR DRUM BRAKE,TANDEM BOOSTER

main44610-60170iFJ45..RHD..GEN198301-198506

FR DISC BRAKE,TANDEN BOOSTER

main44610-60190iBJ40,42,43,45,HJ47..GEN198008-198506

FR DRUM BRAKE,SINGLE BOOSTER

main44610-60200iBJ40,42,43,46..GEN198008-198410

FR DRUM BRAKE,SINGLE BOOSTER

main44610-60210iBJ42,45,46,HJ47..ARL,EUR198008-198410

TANDEM BOOSTER

main44610-60210iHJ47..RHD..GEN198301-198506

FR DISC BRAKE,TANDEN BOOSTER

44610KBOOSTER KIT, BRAKE

main04443-60120iFJ45;FJ40,43..ARL,GEN198008-198604

FR DRUM BRAKE,SINGLE BOOSTER

main04443-60130iFJ40,43;FJ45..ARL,EUR198008-198604

FR DRUM BRAKE,TANDEM BOOSTER

main04443-60140iBJ42,46..ARL,EUR198008-198506

FR DRUM BRAKE,TANDEM BOOSTER

main04443-60150iBJ40,42,43,45,HJ47..GEN198008-198506

SINGLE BOOSTER

44626RETAINER, BOOSTER ROD CUP

main44626-60010iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

44629RING, CIRCULAR INTERNAL

main44628-60010iBJ45,FJ40,45;BJ40,42,43,46,FJ43,HJ47..ARL,GEN198008-198604

44642PISTON, BRAKE BOOSTER

main44642-14170iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

SINGLE BOOSTER

main44642-30340iFJ45..RHD..GEN198008-198604

TANDEM BOOSTER

44643RETAINER, DIAPHRAGM

main44643-30340iFJ40,43198008-198604

TANDEM BOOSTER

main44643-60010iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

SINGLE BOOSTER

44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

main44629-30090iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

SINGLE BOOSTER

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

44662RETAINER, REACTION, NO.1

main44662-35100iBJ40,42,43,45,FJ4#,HJ47..GEN198008-198604

44662BLEVER, REACTION

main44661-35100iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

44662CPLATE, REACTION, NO.1

main44607-22380iBJ40,42,43,46..GEN198008-198410

FR DISC BRAKE

main44607-27050iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

FR DRUM BRAKE

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

44683CONNECTOR, BOOSTER BODY

main44682-20150iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

44683ALOCK, CONNECTOR

main44683-20100iBJ45,FJ45;BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN198008-198604

44696GROMMET, CHECK VALVE

main90480-24439iBJ45,FJ40,45;BJ40,42,43,46,FJ43,HJ47..ARL,GEN198008-198604

AISIN

main90480-24517iHJ47..RHD..GEN198008-198506

JKC

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22050iHJ47..RHD..GEN198008-198506

JKC

main44730-22070iFJ40,45;BJ40,42,43,45,FJ43,HJ47..GEN198008-198604

AISIN

main44730-60040iBJ42,HJ47..ARL198008-198410

RESERVOIR TANK

9017908038

main90179-08038

9331914008

main93319-14008

20 parts on this diagram · 10 diagrams in section
