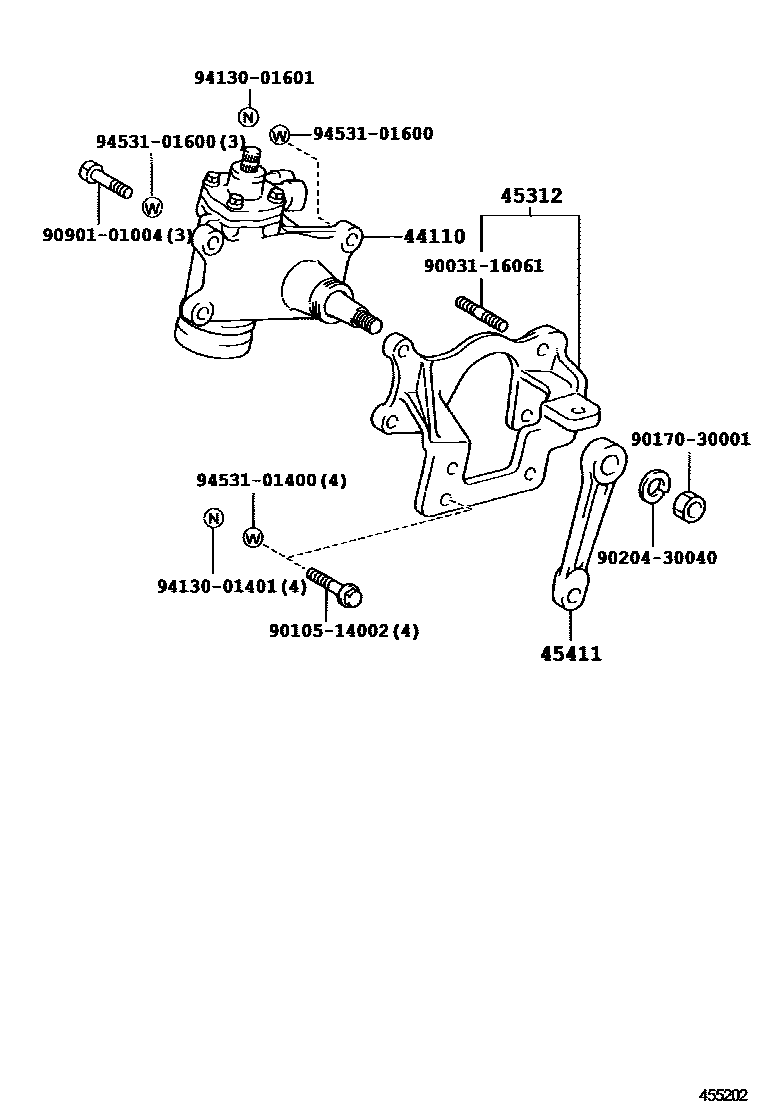

FRONT STEERING GEAR & LINK

0001 1 0004 1 0006 1 0008 1 0009 1 0012 1 0013 1 0014 1 0015 1 0016 1

44110GEAR ASSY, POWER STEERING

main44110-37160iWU410,420,XZU420,430..SA200110-200802

main44110-37180iXZU404,412,414,424..RHD..55T200110-200610

main44110-37200iBU410,420200110-200701

main44110-37210iXZU412,414..LHD..55T200212-200610

main44110-37240iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-201008

main44110-37241iWU41#,422,XZU41#,42#,439..LHD201009-201208

main44110-37250iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201008

main44110-37251iWU410..RHD201009-201106

45312BRACKET, STEERING GEAR HOUSING

main45302-37010iWU410,420,XZU404,412,414,420,422,424,430,434..RHD200110-200609

main45302-37011iWU410,420,XZU420,430..SA200610-200802

main45302-37030iXZU414,424,434..EUR200110-200608

main45302-37031iXZU412,422200610-200802

45411ARM, PITMAN

main45411-37160iXZU404,412,414,424..RHD..55T200110-200610

main45411-37170iWU410,420,XZU420,430..SA200110-200802

main45411-37190iXZU414,424,434..EUR200110-200608

main45411-37220iXZU412,414..LHD..55T200212-200610

main45411-37300iWU410..LHD..GEN;WU412,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(65T,75T,85T)..(DCRTJ,DCRTK)200610-201208

main45411-37310iWU410..GCC;XZU413..55T200610-201106

main45411-37320iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

9003116061

main90031-16061

9010514002

main90105-14002

9017030001

main90170-30001

9020430040

main90204-30040

9090101004

main90901-01004

9413001401

main94130-01401

9413001601

main94130-01601

9453101400

main94531-01400

9453101600

main94531-01600

12 parts on this diagram · 10 diagrams in section
