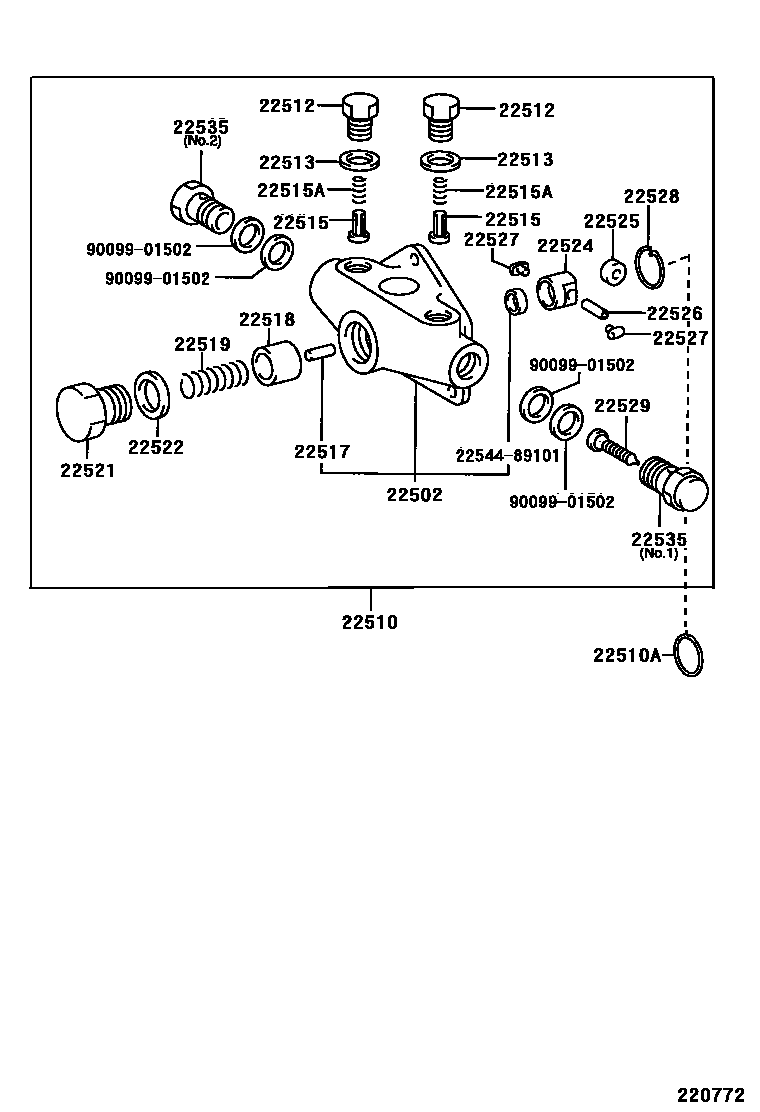

FUEL FEED PUMP

22502HOUSING SUB-ASSY, FUEL

main22502-89101iJ05C..XZU410,420,430200010-200206

22510PUMP ASSY, FUEL FEED

main22510-89102iJ05C..XZU410,420,430200010-200206

22510ARING, O(FOR FUEL FEED PUMP)

main90099-14050iJ05C..XZU410,420,430200010-200206

22512PLUG, FEED PUMP CHECK VALVE CHAMBER

main22512-77020×2iJ05C..XZU410,420,430200010-200206

22513GASKET, CHECK VALVE CHAMBER PLUG

main22513-77020×2iJ05C..XZU410,420,430200010-200206

22515VALVE, FEED PUMP CHECK

main22515-77021×2iJ05C..XZU410,420,430200010-200206

22515ASPRING, FEED PUMP CHECK VALVE

main90501-05141×2iJ05C..XZU410,420,430200010-200206

22517ROD, FEED PUMP PUSH

main22517-89101iJ05C..XZU410,420,430200010-200206

22518PISTON, FEED PUMP

main22518-77020iJ05C..XZU410,420,430200010-200206

BLUE

22519SPRING, FEED PUMP PISTON

main22519-89101iJ05C..XZU410,420,430200010-200206

22521PLUG, FEED PUMP PISTON CHAMBER

main22521-77021iJ05C..XZU410,420,430200010-200206

22522GASKET, FEED PUMP PISTON PLUG

main90099-01432iJ05C..XZU410,420,430200010-200206

22524TAPPET, FEED PUMP

main22524-89102iJ05C..XZU410,420,430200010-200206

22525ROLLER, FEED PUMP TAPPET

main22525-89101iJ05C..XZU410,420,430200010-200206

22526PIN, FEED PUMP TAPPET ROLLER

main22526-89102iJ05C..XZU410,420,430200010-200206

22527BLOCK, FEED PUMP TAPPET SLIDING

main22527-89102×2iJ05C..XZU410,420,430200010-200206

22528RING, FEED PUMP TAPPET SNAP

main90099-01501iJ05C..XZU410,420,430200010-200206

22529FILTER, FUEL PUMP

main22529-67010iJ05C..XZU410,420,430200010-200206

22535SCREW, FUEL PIPE FOLLOW

main22535-46010iJ05C..XZU410,420,430200010-200206

NO.1

main22535-89101iJ05C..XZU410,420,430200010-200206

NO.2

2254489101SEAL, OIL(FOR INJECTION PUMP DRIVE SHAFT)

main22544-89101

9009901502

main90099-01502

21 parts on this diagram · 1 diagram in section
