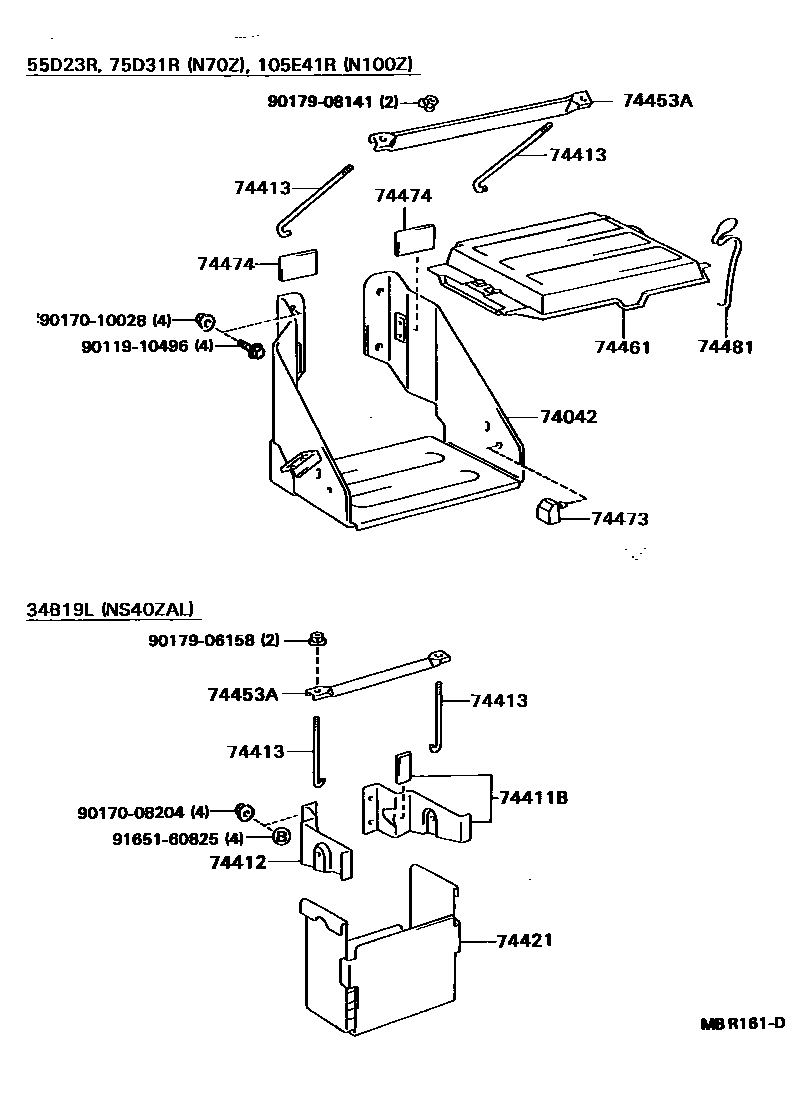

BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-36020iRU85,YU85;YU82..RHD;YU62..T3..ST199309-199505

W(BATTERY=55D23R)

main74042-36020iRU85,YU62,82198808-199309

main74042-36030iYU71198808-199309

main74042-36041iWU9#198808-199305

main74042-36090iYU63198808-199309

main74042-36090iYU63199309-199505

W(BATTERY=55D23R)

74411BBRACKET, BATTERY, FRONT

main74411-25011iYU6#,71,82..GEN198808-199505

74412BRACKET, BATTERY, REAR

main74412-25011iYU6#,71,82..GEN198808-199505

74413BOLT, BATTERY CLAMP

main74451-25020iYU6#,71,82..GEN198808-199505

main74451-36070iRU85,WU9#,YU85;YU62,82..ARL,SA198808-199505

W(BATTERY=55DD23R)

74421HANGER, BATTERY

main74421-25010iYU6#,71,82..GEN198808-199402

main74421-26010iYU6#,82..GEN199402-199505

74453ABAR, BATTERY SET PLATE

main74453-25080iYU6#,71,82..GEN198808-199505

main74453-25100iRU85,YU85;YU62,82..ARL,SA198808-199505

W(BATTERY=55DD23R)

main74453-36050iWU9#198808-199305

main74453-36080iYU71198808-199309

W(BATTERY=55DD23R)

74461COVER, BATTERY

74473SPACER, BATTERY

main74473-36040iRU85,YU6#,71,82198808-199309

main74473-36040iRU85,YU85;YU82..RHD;YU62..T3..ST199309-199505

W(BATTERY=55D23R)

74474PAD, BATTERY

main74475-36040iRU85,WU9#,YU6#,71,82198808-199309

main74475-36040iRU85,YU85;YU82..RHD;YU62..T3..ST199309-199505

W(BATTERY=55D23R)

74481CLAMP, BATTERY HOLD DOWN

9011910496

main90119-10496

9017008204

main90170-08204

9017010028

main90170-10028

9017906158

main90179-06158

9017908141

main90179-08141

9165160825

main91651-60825

16 parts on this diagram · 1 diagram in section
