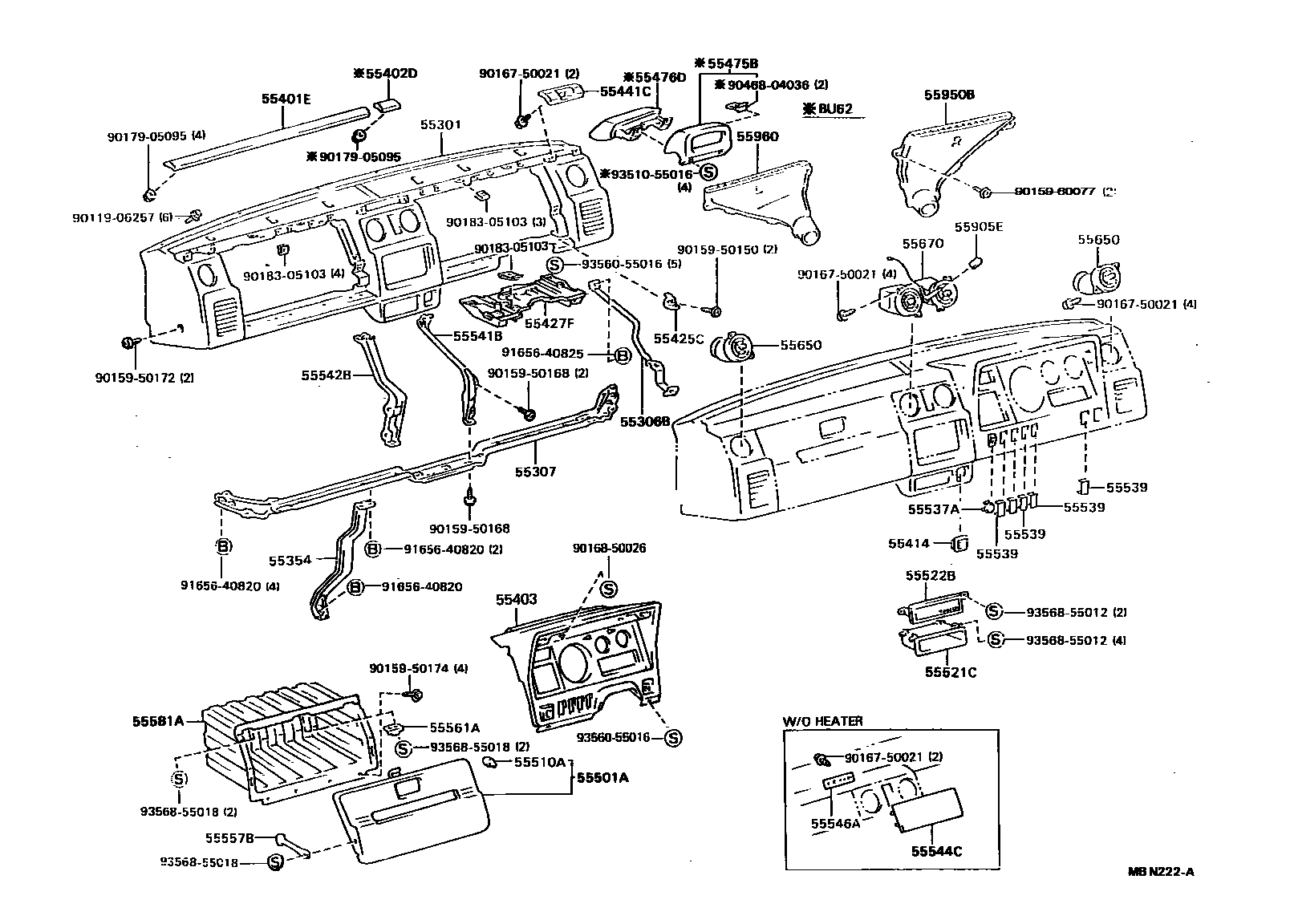

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-95425-06iYU62,81..RHD198708-198808

BROWN,TRIM4#

main55311-95426-06iYU6#,71,81..LHD198708-198808

BROWN,TRIM4#

main55311-95428-06iRU85,WU9#..RHD198708-198808

BROWN,TRIM4#

main55311-95429-06iRU85,WU9#..LHD198708-198808

BROWN,TRIM4#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-95405iRU85,WU9#,YU62,81..RHD198708-198808

main55306-95406iYU6#,71,81..LHD198708-198808

main55306-95407iRU85,WU9#..LHD198708-198808

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-95403iYU62,81..RHD198708-198808

main55307-95404iYU6#,71,81..LHD198708-198808

main55307-95405iRU85,WU9#..RHD198708-198808

main55307-95406iRU85,WU9#..LHD198708-198808

55354BRACE, INSTRUMENT PANEL TO FLOOR

main55351-95400iRU85,WU9#,YU6#,71,81198708-198808

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-95412-06iYU62,81..RHD198708-198808

BROWN,TRIM4#

main55401-95413-06iYU6#,71,81..LHD198708-198808

BROWN,TRIM4#

main55401-95414-06iRU85,WU9#..RHD198708-198808

BROWN,TRIM4#

main55401-95415-06iRU85,WU9#..LHD198708-198808

BROWN,TRIM4#

55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1

55403HOOD SUB-ASSY, METER

main55403-95B21-06iWU90,YU81..RHD..GEN198708-198808

W(HEATER),BROWN,TRIM4#

main55403-95B22-06iWU90,YU81..RHD..GEN198708-198808

W(CLOCK & HEATER),BROWN,TRIM4#

main55403-95B24-06iRU85,WU9#,YU6#,71,81..LHD198708-198808

W(HEATER),BROWN,TRIM4#

main55403-95B25-06iRU85,WU9#,YU6#,71,81..LHD198708-198808

BROWN,TRIM4#

main55403-95B26-06iWU90,YU81..RHD..GEN198708-198808

BROWN,TRIM4#

main55403-95B27-06iWU90,YU81..RHD..GEN198708-198808

W(CLOCK),BROWN,TRIM4#

main55403-95B29-06iRU85,WU9#,YU6#,71,81..LHD198708-198808

W(CLOCK & HEATER),BROWN,TRIM4#

main55403-95B30-06iRU85,WU9#,YU6#,71,81..LHD198708-198808

W(CLOCK),BROWN(TRIM4),BROWN

main55403-95B31-06iWU9#..LHD..IV3198708-198808

PORTUGAL SPEC,BROWN,TRIM4#

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95403iWU90..LHD198708-198808

CHINA SPEC

main55414-95J00iRU85,WU9#,YU6#,71,81198708-198808

55425CBRACKET, METER HOOD SET, NO.1

main55425-95404iRU85,WU9#,YU6#,71,81198708-198808

55427FBRACKET, METER HOOD SET, NO.3

main55427-95402iRU85,WU9#,YU6#,71,81198708-198808

55441CBOX, INSTRUMENT PANEL COIN

main55441-95417-06iYU6#,71,81198708-198808

BROWN,TRIM4#

main55441-95418-06iRU85,WU9#198708-198808

BROWN,TRIM4#

55475BGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

55476DGARNISH, INSTRUMENT PANEL FINISH PLATE

55501ADOOR SUB-ASSY, GLOVE COMPARTMENT

main55501-95412-06iRU85,WU9#,YU6#,71,81198708-198808

BROWN,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iRU85,WU9#,YU6#,71,81198708-198808

OD=7

main90541-05080iRU85,WU9#,YU6#,71,81198708-198808

OD=10

55521CCOVER, STEREO OPENING

main55521-14050-01iRU85,WU9#,YU6#,71,81198708-198808

BLACK,TRIM4#

55522BCOVER, RADIO TUNER OPENING

main55522-20040iRU85,WU9#,YU6#,71,81198708-198808

55537ACOVER, THROTTLE KNOB HOLE

main55537-95010-16iRU85;WU9#..ARL,GEN198708-198808

BROWN,TRIM4#

55539COVER, SPARE SWITCH HOLE

main55539-95400-06iYU63..L2;RU85,WU9#,YU62,71,81198708-198808

BROWN(TRIM4),28X18,BROWN

main55539-95J00-06iYU63..L2;RU85,WU9#,YU62,71,81198708-198808

BROWN(TRIM4),42.6X24.6,BROWN

55541BRETAINER, RADIO TUNER OPENING, NO.1

main55541-95407iYU6#,71,81;RU85,WU9#..RHD198708-198808

main55541-95408iRU85,WU9#..LHD198708-198808

55542BRETAINER, RADIO TUNER OPENING, NO.2

main55542-95407iYU62,81;RU85,WU9#,YU63,71..LHD198708-198808

main55542-95408iRU85,WU9#..RHD198708-198808

55544CCOVER, CENTER REGISTER OPENING

main55544-95410-06iYU6#,71,81..GEN198708-198808

BROWN,TRIM4#

main55544-95412-06iRU85,WU9#..GEN198708-198808

BROWN,TRIM4#

55546APLATE, CENTER REGISTER COVER

main55546-95400iRU85,WU9#,YU6#,71,81..GEN198708-198808

55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK

main55557-95400-01iRU85,WU9#,YU6#,71,81198708-198808

BLACK,TRIM4#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95401-01iRU85,WU9#,YU6#,71,81198708-198808

BLACK,TRIM4#

55581ACOMPARTMENT, GLOVE

main55581-95400-01iRU85,WU9#,YU6#,71,81198708-198808

BLACK,TRIM4#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-95400-01iRU85,WU9#,YU6#,71,81198708-198808

BLACK,TRIM4#

main55650-95401-01iRU85,WU9#..GEN198708-198808

BLACK,TRIM4#,CENTER

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-95400-01iYU6#,71,81..GEN198708-198808

BLACK,TRIM4#

main55670-95401-01iWU90..RHD..GEN198708-198808

BLACK,TRIM4#

main55670-95402-01iRU85,WU9#..LHD198708-198808

BLACK,TRIM4#

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iRU85,WU9#,YU62,81..ARL,SA198708-198808

BLACK,TRIM4#

55950BNOZZLE ASSY, DEFROSTER, RH

main55950-95010iRU85,WU9#,YU62,81..ARL,SA198708-198808

55960NOZZLE ASSY, DEFLOSTER, LH

main55960-95010iRU85,WU9#,YU62,81..ARL,SA198708-198808

9011906257

main90119-06257

9015950150

main90159-50150

9015950168

main90159-50168

9015950172

main90159-50172

9015950174

main90159-50174

9015960077

main90159-60077

9016750021

main90167-50021

9016850026

main90168-50026

9017905095

main90179-05095

9018305103

main90183-05103

9046804036

main90468-04036

9165640820

main91656-40820

9165640825

main91656-40825

9351055016

main93510-55016

9356055016

main93560-55016

9356855012

main93568-55012

9356855018

main93568-55018

48 parts on this diagram · 4 diagrams in section
