34101CASE SUB-ASSY, OVERDRIVE

main34101-60010i198808-199204

34101BRING, O (FOR OVERDRIVE CASE)

main90301-09008×3i198808-199204

34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)

main90105-10096×6i198808-199204

*10-1.25PX20.5-13

34101GRING, HOLE SNAP (FOR OVERDRIVE CASE)

main90521-99043i198808-199204

34101HRACE, THRUST BEARING (FOR OVERDRIVE CASE REAR)

main35789-36020i198808-199204

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-36010i198808-199204

34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)

main90501-10087×24i198808-199001

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-36010i198808-199204

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-59003i198808-199204

INNER

main90301-99027i198808-199204

OUTER

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main35608-36010i198808-199204

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90521-99021i198808-199204

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-60010i199001-199204

34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING

main34613-36010i198808-199001

34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)

main90520-50001i198808-199204

34615FLANGE, OVERDRIVE CLUTCH

main35675-36010i198808-199112

T=5.0

main35675-60010i199112-199204

T=5.0

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99017i198808-199204

34622PISTON, OVERDRIVE BRAKE

main35621-36010i198808-199204

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99030i198808-199204

OUTER

main90301-99031i198808-199204

INNER

34625FLANGE, OVERDRIVE BRAKE, NO.1

main35676-36010i198808-199112

T=5.0

main35676-60010i199112-199204

T=5.0

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99021i198808-199204

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-36010i198808-199204

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23001i199001-199204

RR

main90374-25004i198808-199001

RR

main90374-28007i198808-199001

FR

main90374-28010i199001-199204

FR

34710KRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR REAR)

main35789-36010i198808-199001

34710RRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR FRONT)

main35789-36070i198808-199001

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-36010i198808-199204

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-36010i198808-199204

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-90002i198808-199204

34731GEAR, OVERDRIVE PLANETARY RING

main34731-36010i198808-199204

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99019i198808-199204

34732FLANGE, OVERDRIVE PLANETARY RING GEAR

main34732-36010i198808-199002

main34732-36011i199002-199204

34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main90374-34001i198808-199204

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34737-36010i198808-199204

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34738-36010i198808-199204

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-36020×2i198808-199204

35632BPLATE, BRAKE (FOR OVERDRIVE)

main35632-36010×3i198808-199204

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-36020×3i198808-199204

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35634-36010×3i198808-199204

T=1.75-1.85

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main35633-36010×3i198808-199204

35712BRING, OIL SEAL (FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main35712-36010i198808-199204

35785ARETAINER, OVERDRIVE CASE RING

main35785-36010×3i198808-199204

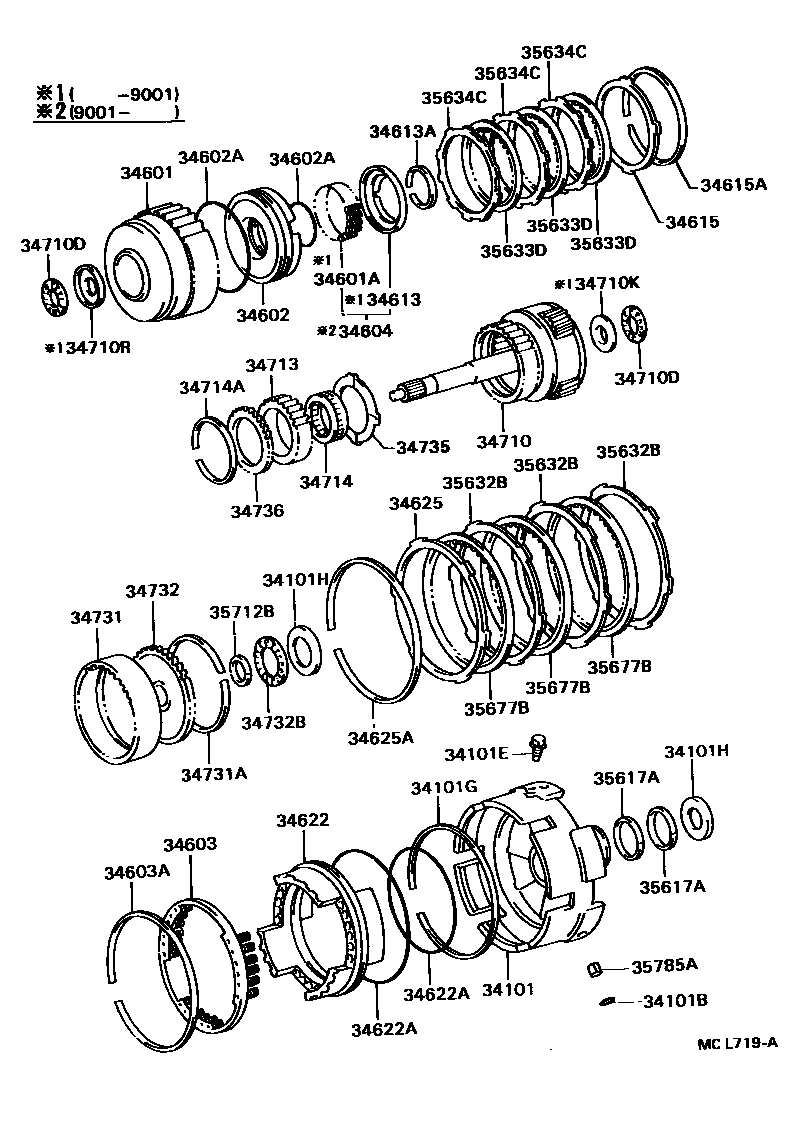

OVERDRIVE GEAR (ATM)
