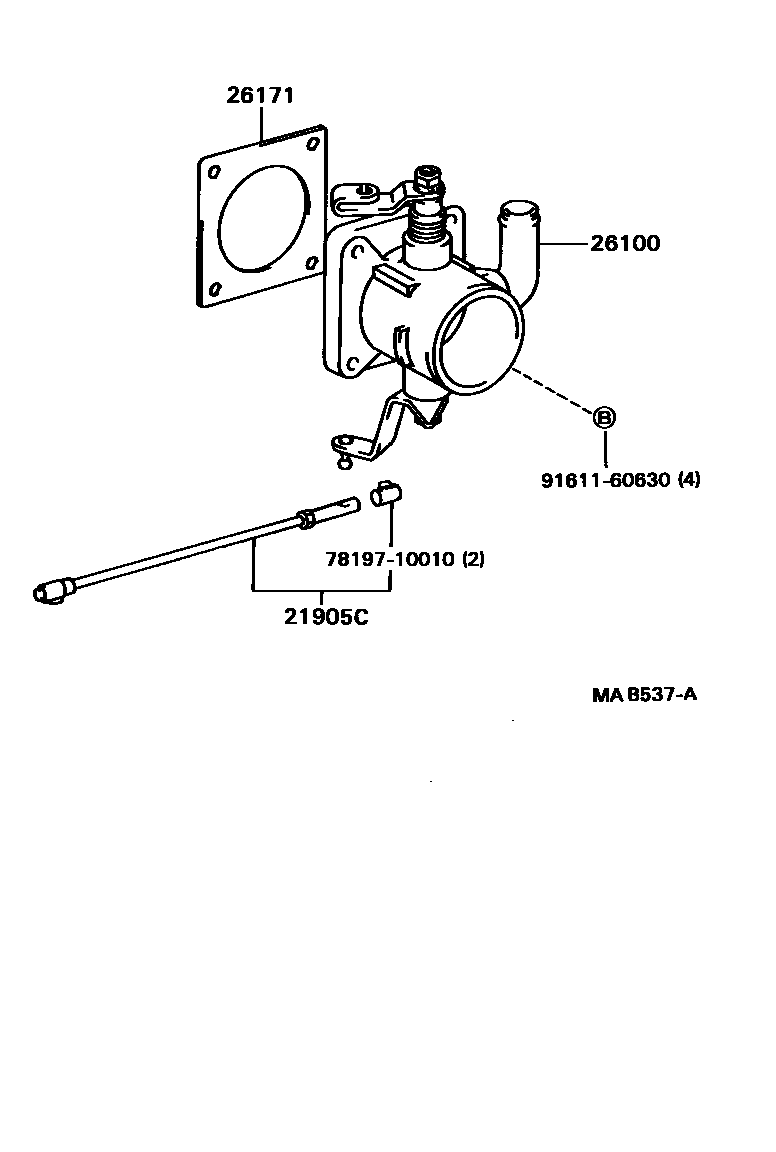

VENTURI

0001 1 0002 1

21905CROD, ACCELERATOR CONNECTING(FOR VENTURI)

main21905-57020iB..BU60,70,83198808-199505

main21905-58010i11B,14B..BU61,65,66,84,87,88,9#198808-198809

L=110

main21905-58020i14B..BU88..CBU,IV3;11B,14B..BU61,65,66,67,84,87,91,96199008-199307

L=112.5

main21905-58030i14B..BU88..CBU,IV3;11B,14B..BU61,65,66,67,84,87,91,96199008-199307

L=115

main21905-58040i14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96199204-199307

L=117.5

main21905-58050i14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96198809-199008

L=120

main21905-58070i11B,14B..BU61,65,66,67,84,87,88,9#199307-199309

26100VENTURI ASSY

main26100-58070iB..BU60,70,83198808-199505

main26100-58100i11B,14B..BU61,65,66,67,84,87,88,9#198808-199008

main26100-58101i11B,14B..BU61,65,66,67,84,87,88,9#199008-199505

main26100-58102i14B..BU88,94199505-199703

26171GASKET, VENTURI

main26171-56050iB..BU60,70,83198808-199505

7819710010CLIP, ACCELERATOR JOINT BALL

main78197-10010

9161160630

main91611-60630

5 parts on this diagram · 2 diagrams in section
