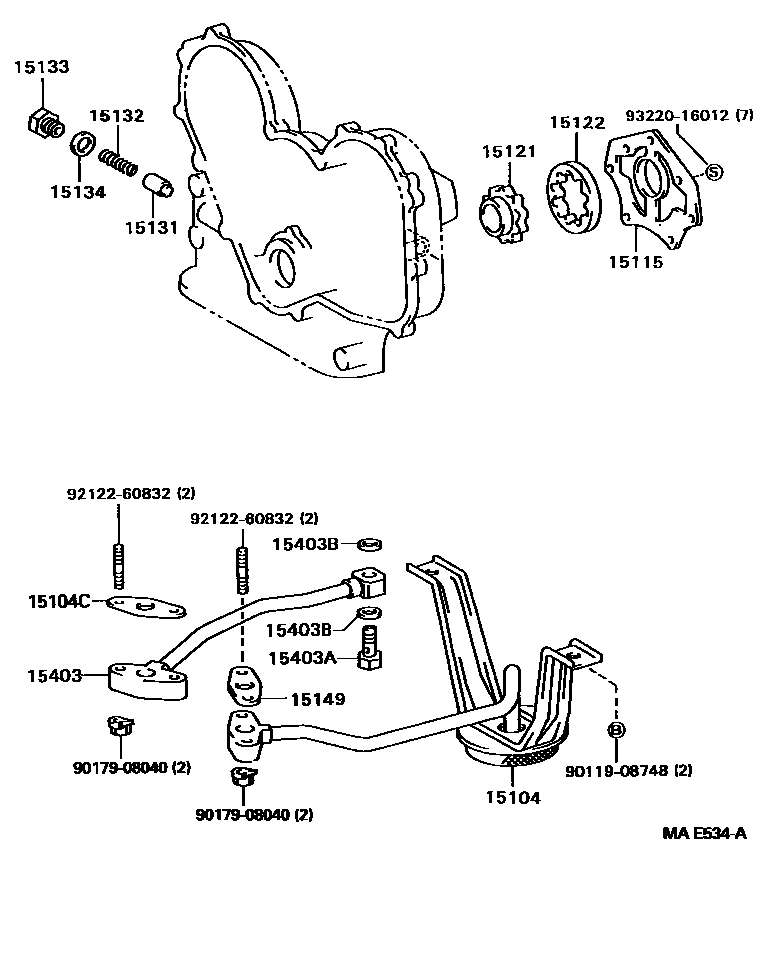

ENGINE OIL PUMP

15104STRAINER SUB-ASSY, OIL

main15104-56060iB,11B,14B..BU6#,70,8#,9#198808-198910

main15104-56061iB,11B,14B#..BU6#,70,8#,9#198910-199703

15104CGASKET(FOR OIL STRAINER)

main15149-56020iB,11B,14B#..BU6#,70,8#,9#198808-199703

15115COVER, OIL PUMP

main15115-56040iB,11B,14B..BU6#,70,8#,9#198808-199703

main15115-56090i14BT..BU91,96199004-199305

15121GEAR, OIL PUMP DRIVE

main15121-56040iB,11B,14B..BU6#,70,8#,9#198808-199703

main15121-56090i14BT..BU91,96199004-199305

15122GEAR, OIL PUMP DRIVEN

main15122-56040iB,11B,14B..BU6#,70,8#,9#198808-199703

main15122-56090i14BT..BU91,96199004-199305

15131VALVE, OIL PUMP RELIEF

main15131-24010iB,11B,14B#..BU6#,70,8#,9#198808-199703

15132SPRING, OIL PUMP RELIEF VALVE

main15132-56080iB,11B,14B#..BU6#,70,8#,9#198808-199703

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010iB,11B,14B#..BU6#,70,8#,9#198808-199703

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010iB,11B,14B#..BU6#,70,8#,9#198808-199703

15149GASKET, OIL STRAINER FLANGE

main15149-56020iB,11B,14B#..BU6#,70,8#,9#198808-199703

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56050iB,11B,14B#..BU6#,70,8#,9#198808-199703

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-20009iB,11B,14B#..BU6#,70,8#,9#198808-199703

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-20018×2iB,11B,14B#..BU6#,70,8#,9#198808-199703

9011908748

main90119-08748

9017908040

main90179-08040

9212260832

main92122-60832

9322016012

main93220-16012

17 parts on this diagram · 1 diagram in section
