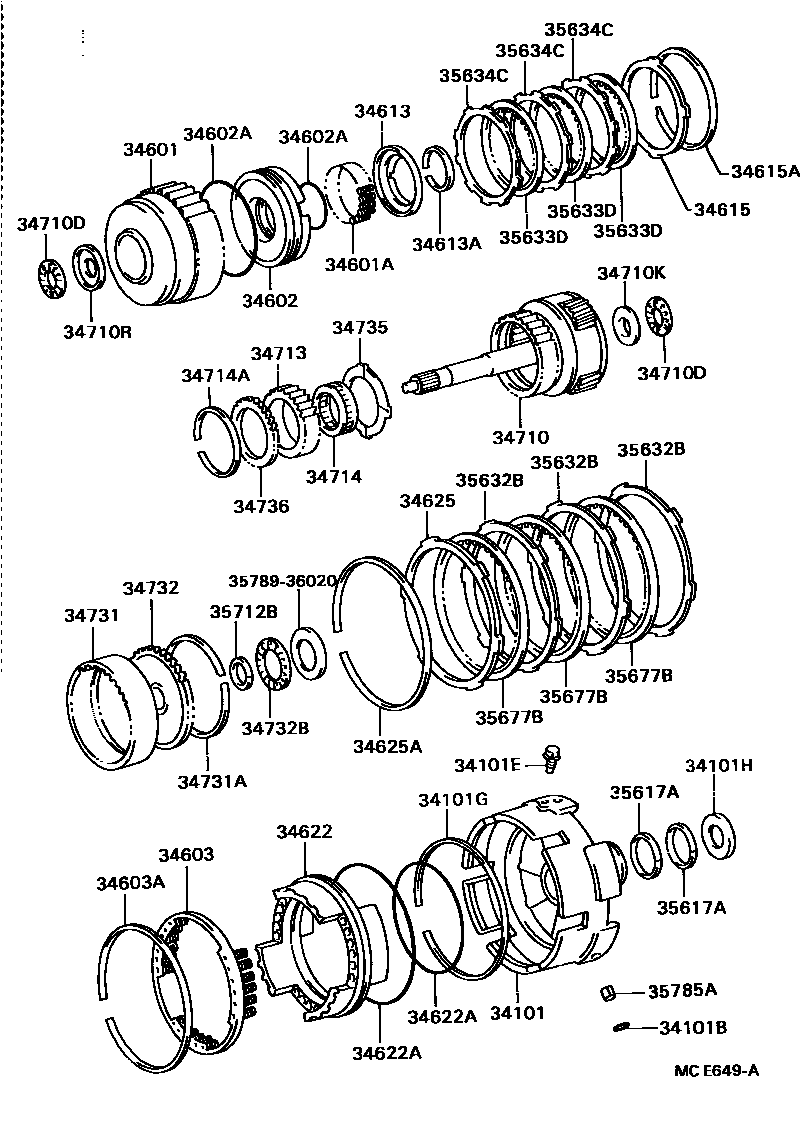

OVERDRIVE GEAR (ATM)

34101CASE SUB-ASSY, OVERDRIVE

main34101-60010iBU62..ARL198708-198808

34101BRING, O (FOR OVERDRIVE CASE)

main90301-09008×3iBU62..ARL198708-198808

34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)

main90105-10096×6iBU62..ARL198708-198808

*10-1.25PX20.5-13

34101GRING, HOLE SNAP (FOR OVERDRIVE CASE)

main90521-99043iBU62..ARL198708-198808

34101HRACE, THRUST BEARING (FOR OVERDRIVE CASE REAR)

main35789-36020iBU62..ARL198708-198808

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-36010iBU62..ARL198708-198808

34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)

main90501-10087×24iBU62..ARL198708-198808

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-36010iBU62..ARL198708-198808

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-59003iBU62..ARL198708-198808

INNER

main90301-99027iBU62..ARL198708-198808

OUTER

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main35608-36010iBU62..ARL198708-198808

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90521-99021iBU62..ARL198708-198808

34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING

main34613-36010iBU62..ARL198708-198808

34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)

main90520-50001iBU62..ARL198708-198808

34615FLANGE, OVERDRIVE CLUTCH

main35675-36010iBU62..ARL198708-198808

T=5.0

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99017iBU62..ARL198708-198808

34622PISTON, OVERDRIVE BRAKE

main35621-36010iBU62..ARL198708-198808

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99030iBU62..ARL198708-198808

OUTER

main90301-99031iBU62..ARL198708-198808

INNER

34625FLANGE, OVERDRIVE BRAKE, NO.1

main35676-36010iBU62..ARL198708-198808

T=5.0

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99021iBU62..ARL198708-198808

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-36010iBU62..ARL198708-198808

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-25004iBU62..ARL198708-198808

RR

main90374-28007iBU62..ARL198708-198808

FR

34710KRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR REAR)

main35789-36010iBU62..ARL198708-198808

34710RRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR FRONT)

main35789-36070iBU62..ARL198708-198808

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-36010iBU62..ARL198708-198808

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-36010iBU62..ARL198708-198808

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-90002iBU62..ARL198708-198808

34731GEAR, OVERDRIVE PLANETARY RING

main34731-36010iBU62..ARL198708-198808

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99019iBU62..ARL198708-198808

34732FLANGE, OVERDRIVE PLANETARY RING GEAR

main34732-36010iBU62..ARL198708-198808

34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main90374-34001iBU62..ARL198708-198808

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34737-36010iBU62..ARL198708-198808

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34738-36010iBU62..ARL198708-198808

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-36020×2iBU62..ARL198708-198808

35632BPLATE, BRAKE (FOR OVERDRIVE)

main35632-36010×3iBU62..ARL198708-198808

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-36020×3iBU62..ARL198708-198808

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35634-36010×3iBU62..ARL198708-198808

T=1.75-1.85

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main35633-36010×3iBU62..ARL198708-198808

35712BRING, OIL SEAL (FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main35712-36010iBU62..ARL198708-198808

35785ARETAINER, OVERDRIVE CASE RING

main35785-36010×3iBU62..ARL198708-198808

3578936020RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-36020

40 parts on this diagram · 1 diagram in section
