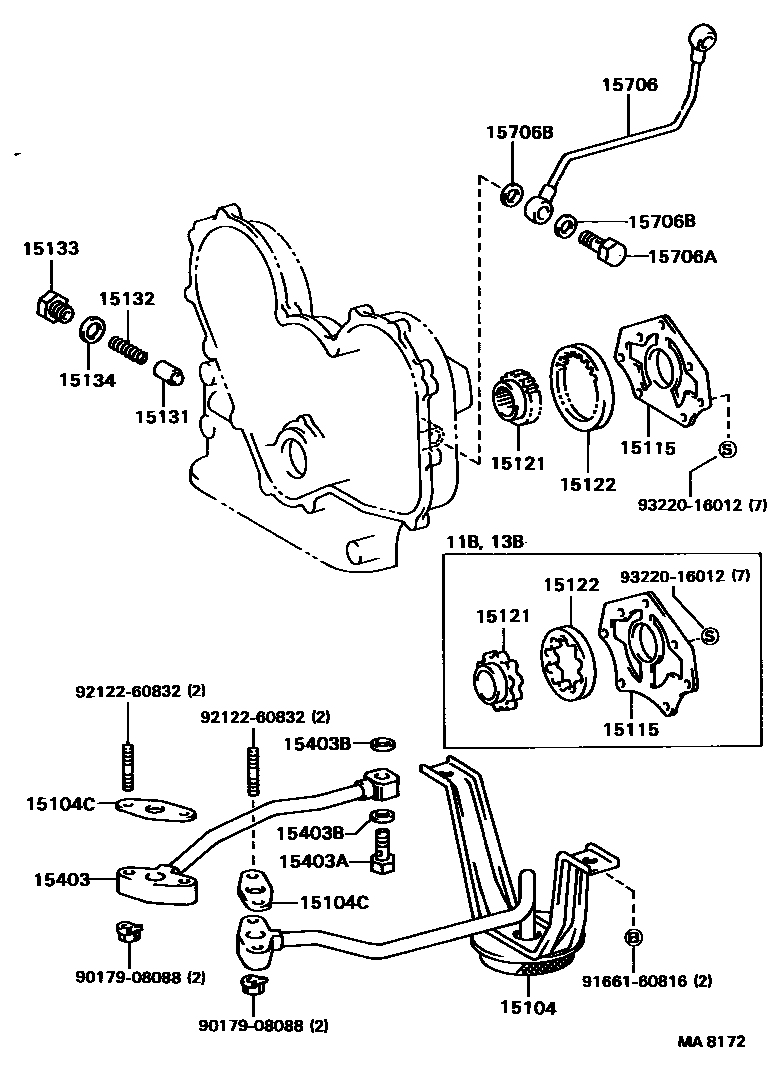

ENGINE OIL PUMP

15104STRAINER SUB-ASSY, OIL

main15104-56050iB,11B,13B..BU6#,70,8#198708-198710

15104CGASKET(FOR OIL STRAINER)

main15193-56020iB,11B,13B..BU6#,70,8#198708-198710

15115COVER, OIL PUMP

main15115-56030iB..BU60,70,80198708-198808

main15115-56040i11B,13B..BU61,62,65,81,82,85,86198708-198710

15121GEAR, OIL PUMP DRIVE

main15121-56030iB..BU60,70,80198708-198808

main15121-56040i11B,13B..BU61,62,65,81,82,85,86198708-198710

15122GEAR, OIL PUMP DRIVEN

main15122-56030iB..BU60,70,80198708-198808

main15122-56040i11B,13B..BU61,62,65,81,82,85,86198708-198710

15131VALVE, OIL PUMP RELIEF

main15131-24010iB,11B,13B..BU6#,70,8#198708-198710

15132SPRING, OIL PUMP RELIEF VALVE

main15132-56040i11B,13B..BU61,62,65,81,82,85,86,93198710-198808

main15132-76011iB..BU60,70,80198708-198808

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010iB,11B,13B..BU6#,70,8#198708-198710

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010iB,11B,13B..BU6#,70,8#198708-198710

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56041iB,11B,13B..BU6#,70,8#198708-198710

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-18002iB,11B,13B..BU6#,70,8#198708-198710

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18012×2iB,11B,13B..BU6#,70,8#198708-198710

15706PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET

main15077-56010iB,11B,13B..BU6#,70,8#198708-198710

15706AUNION(FOR INJECTION PUMP OUTLET PIPE)

main90044-01010iB,11B,13B..BU6#,70,8#198708-198710

15706BGASKET(FOR INJECTION PUMP OUTLET PIPE)

main90044-30026×2iB,11B,13B..BU6#,70,8#198708-198710

9017908088

main90179-08088

9166160816

main91661-60816

9212260832

main92122-60832

9322016012

main93220-16012

19 parts on this diagram · 1 diagram in section
