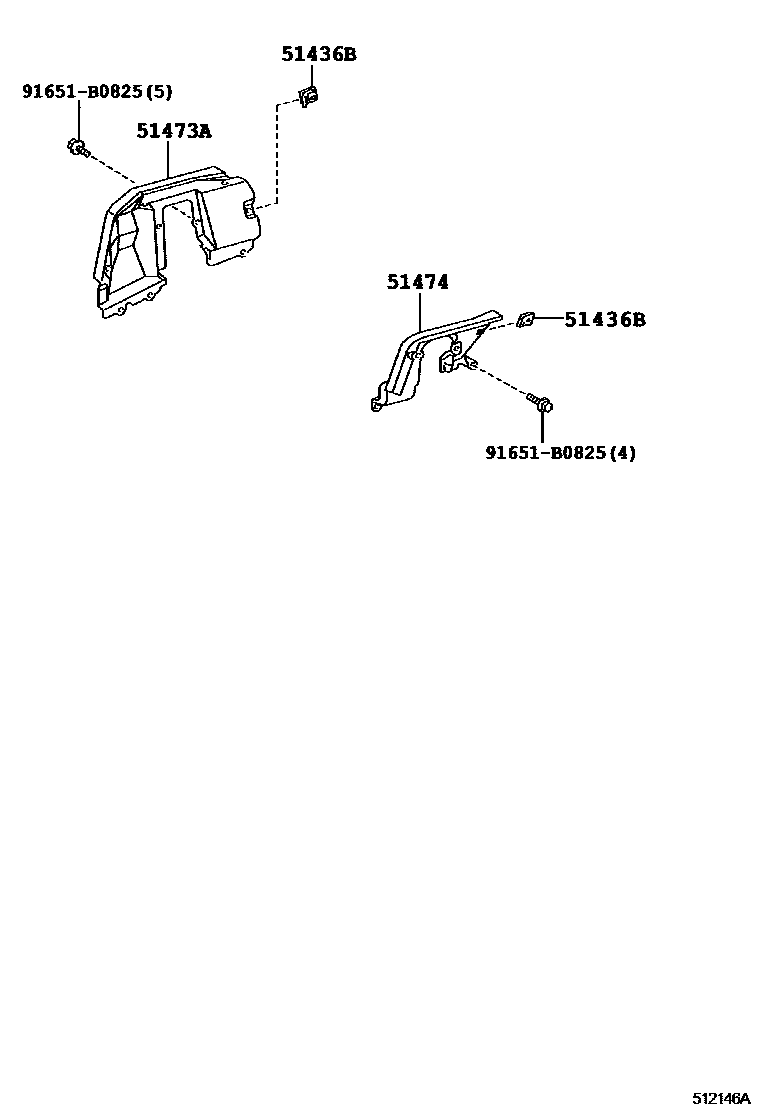

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1

51436BBRACKET, ENGINE SIDE COVER, NO.1 RH

main51436-37080×2iXZU600..GCC;WU600,650,XZU650201107-202005

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-37310iXZU600..GCC;WU600,650,XZU650201107-202005

main51473-37390iXZU600..GEN201911

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-37131iXZU600..GCC;WU600,650,XZU650201107-202005

main51474-37300iXZU600..GEN201911

91651B0825

main91651-B0825

4 parts on this diagram · 4 diagrams in section
