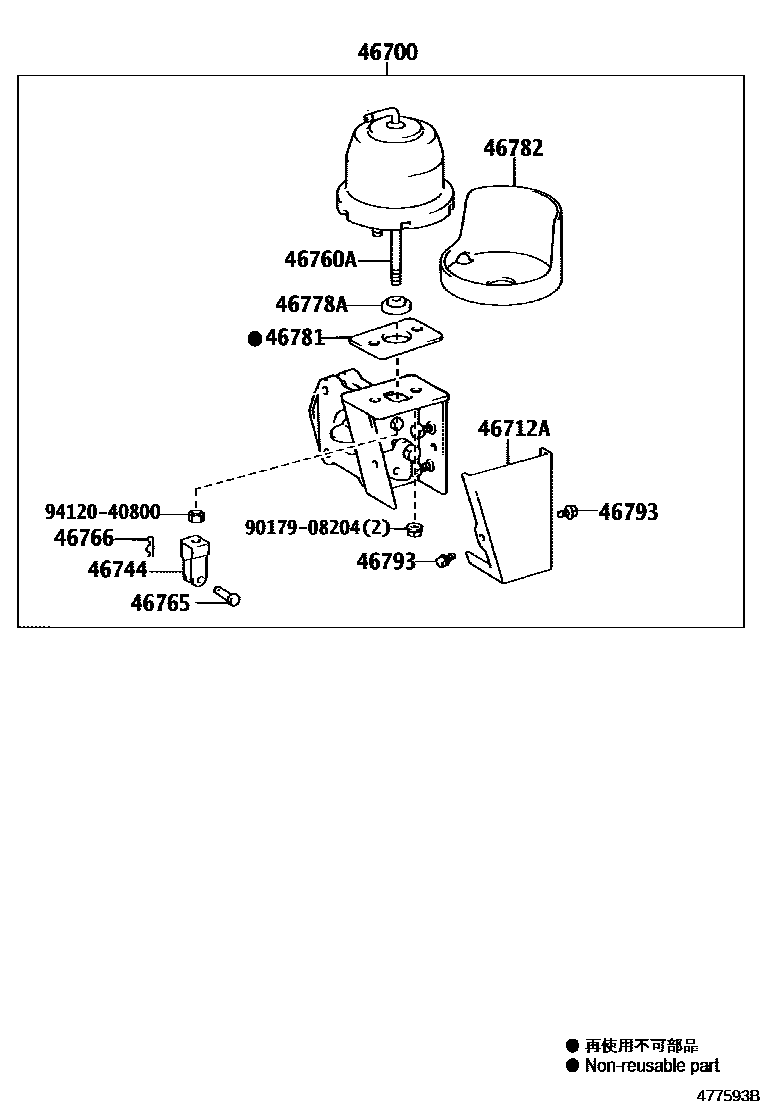

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

46700RETARDER ASSY, EXHAUST

main46700-37100iXZU600..GCC;WU600,650,XZU650201107-202005

46712ACOVER, EXHAUST BRAKE BRACKET

main46712-36060iXZU600..GCC;WU600,650,XZU650201107-202005

46744CLEVIS, EXHAUST BRAKE ROD CLEVIS

main46744-25010iXZU600..GCC;WU600,650,XZU650201107-202005

46760ACHAMBER ASSY, EXHAUST BRAKE

main46760-37050iXZU600..GCC;WU600,650,XZU650201107-202005

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iXZU600..GCC;WU600,650,XZU650201107-202005

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iXZU600..GCC;WU600,650,XZU650201107-202005

46778ABEARING, EXHAUST BRAKE CHAMBER ROD

main46778-36060iXZU600..GCC;WU600,650,XZU650201107-202005

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-28010iXZU600..GCC;WU600,650,XZU650201107-202005

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-36130iXZU600..GCC;WU600,650,XZU650201107-202005

46793BOLT, EXHAUST VALVE LINK COVER

main46793-36010×2iXZU600..GCC;WU600,650,XZU650201107-202005

9017908204

main90179-08204

9412040800

main94120-40800

12 parts on this diagram · 1 diagram in section
