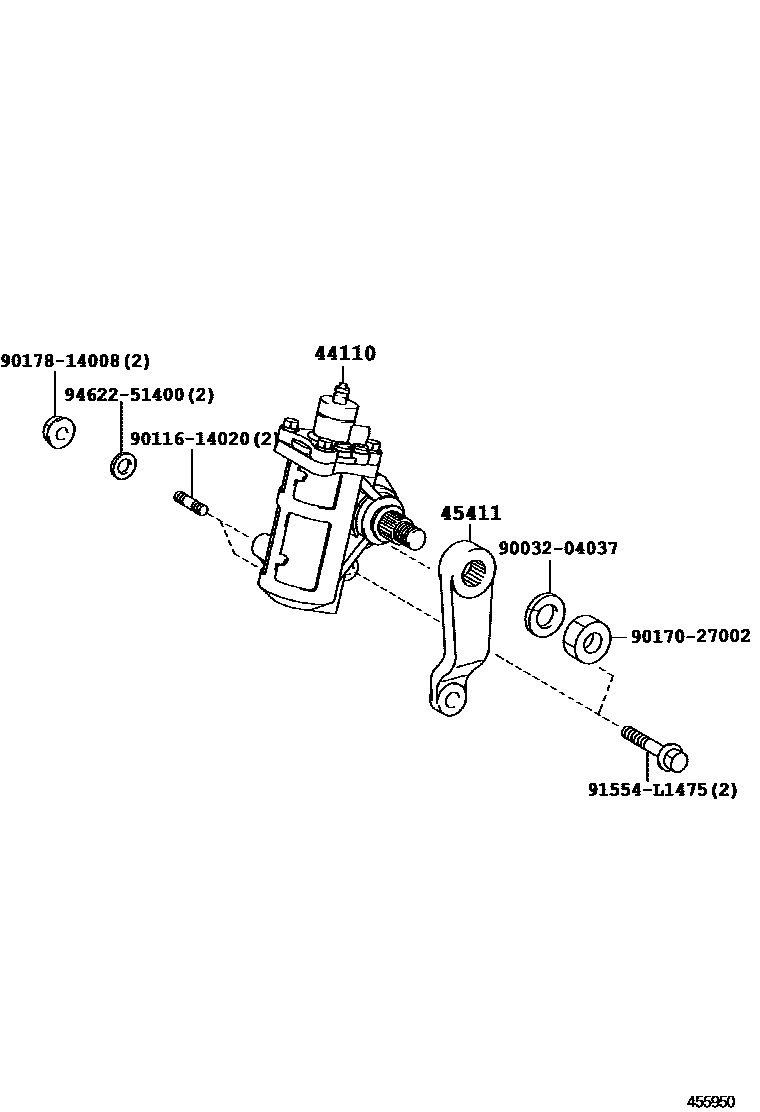

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

44110GEAR ASSY, POWER STEERING

main44110-37290iWU600,650,XZU600,650201107-201710

main44110-37291iXZU600..GCC;WU600,650,XZU650201711-202005

45411ARM, PITMAN

main45411-37281iXZU600..GCC;WU600,650,XZU650201107-202005

9003204037

main90032-04037

9011614020

main90116-14020

9017027002

main90170-27002

9017814008

main90178-14008

91554L1475

main91554-L1475

9462251400

main94622-51400

8 parts on this diagram · 3 diagrams in section
