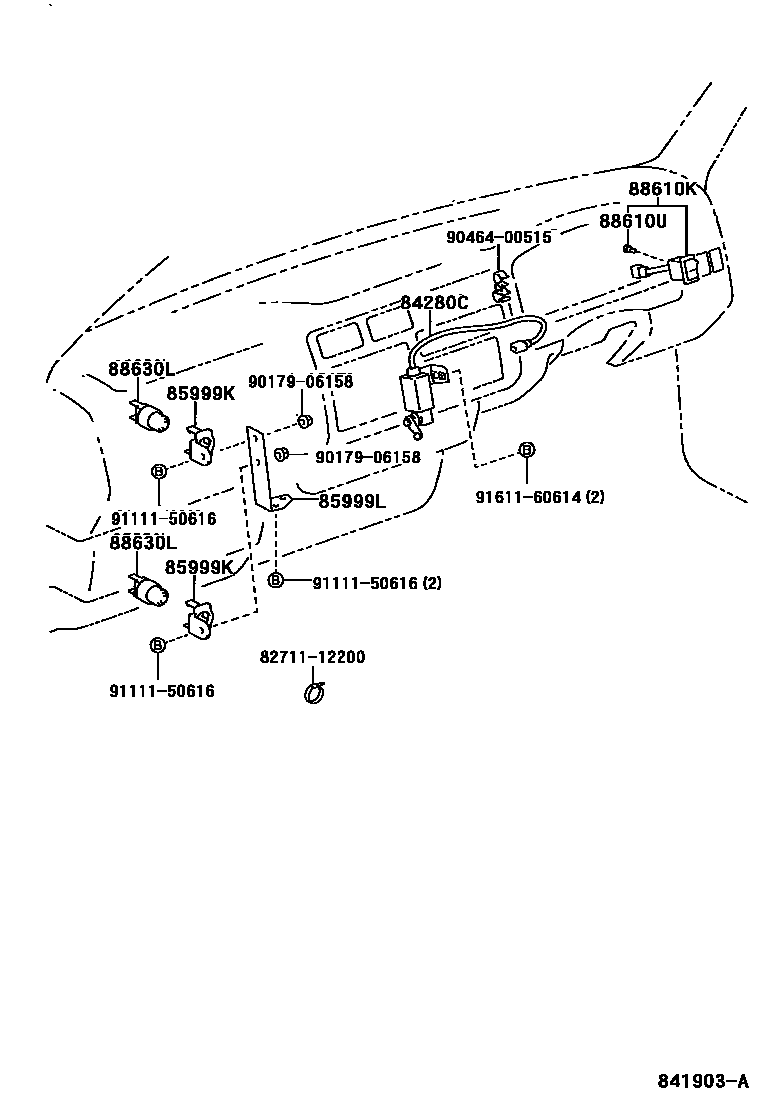

POWER TAKE-OFF CONTROL
84280CSWITCH ASSY, POWER TAKE-OFF CLUTCH
main84280-93101iBU211,221..GEN..(CBU,IV3); BU212..ARL;BU212..LHD..40T;BU142,213,222..(20T,40T)..(DSL,TDEFI)..(ARL,GEN)199505
W(P.T.O & BOOSTER)
main84280-93102iRZU100..15T,20T;BU100,101..T3..ST..IV3..TS;BU10#,140,141..WT..DSL..(ARL,GEN)199708-200212
85999KBRACKET, POWER TAKE-OFF RELAY, NO.1
main85999-12050×2iBU212..ARL;RZU100..20T;BU100..ST..IV3;BU212..LHD..40T;BU10#,14#,211,221..WT..(ARL,EUR,GEN,TAIW)199505-199708
85999LBRACKET, POWER TAKE-OFF RELAY, NO.2
main85999-93102iBU212..ARL;BU141,211..RHD..GEN..(CBU,IV3);BU100,101,140,142,221,222,RZU100..RHD..WT..(20T,25T,40T)..(DSL,EFI)..(ARL,GEN)199505-200212
main85999-93104iBU101..30T;BU100..ST..IV3;BU101..LHD..IV3..TS;BU101..LHD..WT..CBU;BU212,213..LHD..40T;BU100,102,140,141,211,221,RZU100..LHD..WT199708-200312
88610KSWITCH ASSY, POWER TAKE-OFF CONTROL
W(BATTERY=55D23R X2)
main88610-93103iBU100..ST..IV3;BU101..WT..CBU;BU211..RHD..CBU;BU101..LHD..IV3..TS;BU101,212..ARL..IV3;BU212..LHD..40T..TD;BU101,221..LHD..WT..TB;BU211,RZU100..DM6,T4,TW1;BU211..RHD..30T..GEN..IV3;BU100,14#,222..RHD..WT..DSL..(ARL,GEN)199708-200212
88610UBULB, POWER TAKE-OFF CONTROL SWITCH
main84999-10100iBU102,211..LHD..(T2,T3,T4)..WT;BU100,140,212,213..LHD..WT..(20T,25T,40T)..(DSL,TDEFI)199708-200111
88630LRELAY, POWER TAKE-OFF CONTROL
main90987-02004×2iBU100..ST..IV3;BU101..WT..CBU;BU211..RHD..CBU;BU101..LHD..IV3..TS;BU101,212..ARL..IV3;BU212..LHD..40T..TD;BU101,221..LHD..WT..TB;BU211,RZU100..DM6,T4,TW1;BU211..RHD..30T..GEN..IV3;BU100,14#,222..RHD..WT..DSL..(ARL,GEN)199708-200212
W(BATTERY 95D31R 2PIECE & P.T.O)
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9017906158
main90179-06158
9046400515
main90464-00515
9111150616
main91111-50616
9161160614
main91611-60614
11 parts on this diagram · 2 diagrams in section
