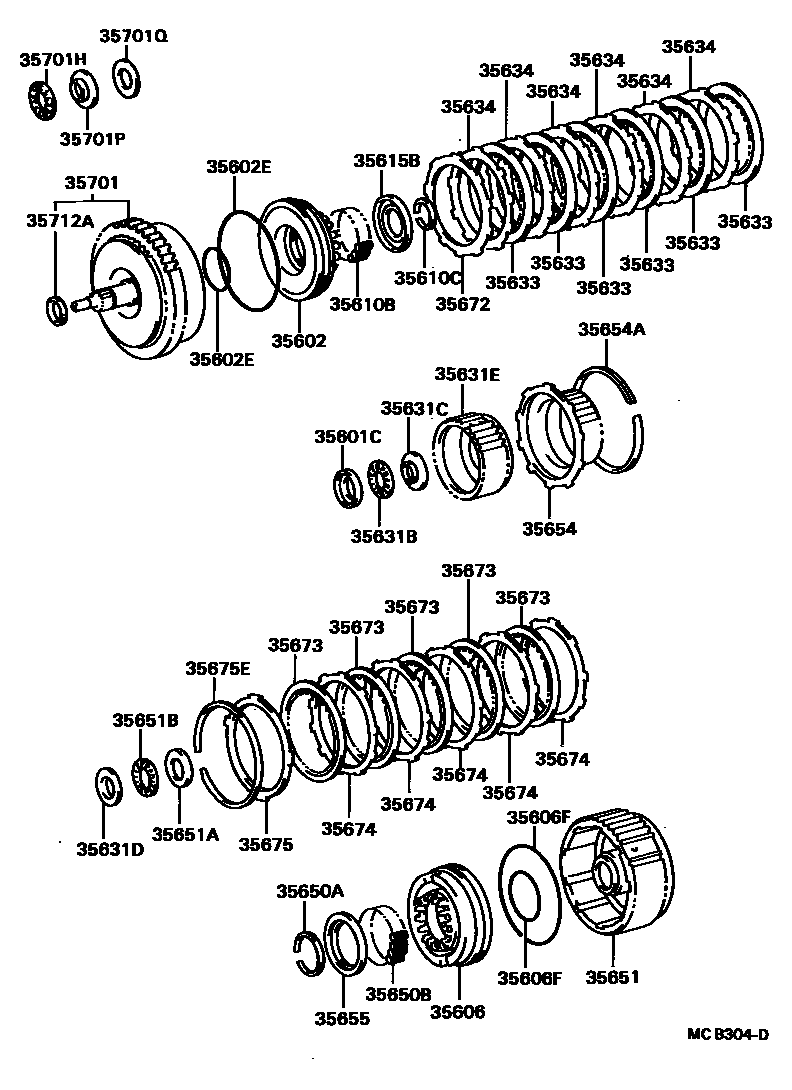

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35601CRACE, THRUST BEARING (FOR FRONT CLUTCH DRUM)
35602PISTON SUB-ASSY, FRONT CLUTCH
35602ERING, O (FOR FRONT CLUTCH PISTON)
INNER
OUTER
35606PISTON SUB-ASSY, REAR CLUTCH
35606FRING, O (FOR REAR CLUTCH PISTON)
INNER
OUTER
35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)
35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)
35615BSEAT, FRONT CLUTCH PISTON RETURN SPRING
35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)
35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)
35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)
35631EHUB, FRONT CLUTCH
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35634PLATE, FRONT CLUTCH
T=1.75-1.85,T=1.8
T=2.35-2.45,T=2.4
T=1.95-2.05,T=2.0
T=2.15-2.25,T=2.2
35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)
35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)
35651DRUM, REAR CLUTCH
35651ARACE, THRUST BEARING (FOR REAR CLUTCH DRUM)
35651BBEARING, THRUST NEEDLE ROLLER (FOR REAR CLUTCH DRUM)
35654HUB, REAR CLUTCH
35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)
35655SEAT, REAR CLUTCH PISTON RETURN SPRING
35672PLATE, CLUTCH CUSHION
35673DISC, REAR CLUTCH
35674PLATE, REAR CLUTCH
35675FLANGE, REAR CLUTCH
T=5.0,T=5.0
T=5.2,T=5.2
T=5.4,T=5.4
T=5.6,T=5.6
35675ERING, HOLE SNAP (FOR REAR CLUTCH FLANGE)
35701SHAFT SUB-ASSY, INPUT
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
35701PRACE, THRUST BEARING (FOR INPUT SHAFT)
T=0.9
T=1.2
T=1.5
T=1.8
T=2.1
35701QRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35712ARING, INPUT SHAFT OIL SEAL
32 parts on this diagram · 1 diagram in section
