BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-25021199505

main74042-25030199505

main74042-25041199505-199905

main74042-36020199505

74411BBRACKET, BATTERY, FRONT

main74411-25011199505

74412BRACKET, BATTERY, REAR

main74412-25011199505

74413BOLT, BATTERY CLAMP

main74451-25020199505

main74451-36070199505

74417BRACKET, BATTERY CARRIER

main74417-25020199505-200002

main74417-25030199505

main74417-25051199505-199805

74421HANGER, BATTERY

main74421-26010199505

main74421-26020199505

74453ABAR, BATTERY SET PLATE

main74453-25080199505

main74453-25090199505

main74453-25100199505

main74453-36050199505-200004

main74453-36060200004

main74453-36070199505-199805

74461COVER, BATTERY

main74461-36100199505

74473SPACER, BATTERY

main74473-25010199505

main74473-36050199505

74474PAD, BATTERY

main74475-36040199505

74481CLAMP, BATTERY HOLD DOWN

main74481-36030199505

9011908676

main90119-08676

9011910531

main90119-10531

9011910571

main90119-10571

9017906158

main90179-06158

9017908141

main90179-08141

91645C1032

main91645-C1032

9413000802

main94130-00802

9413001002

main94130-01002

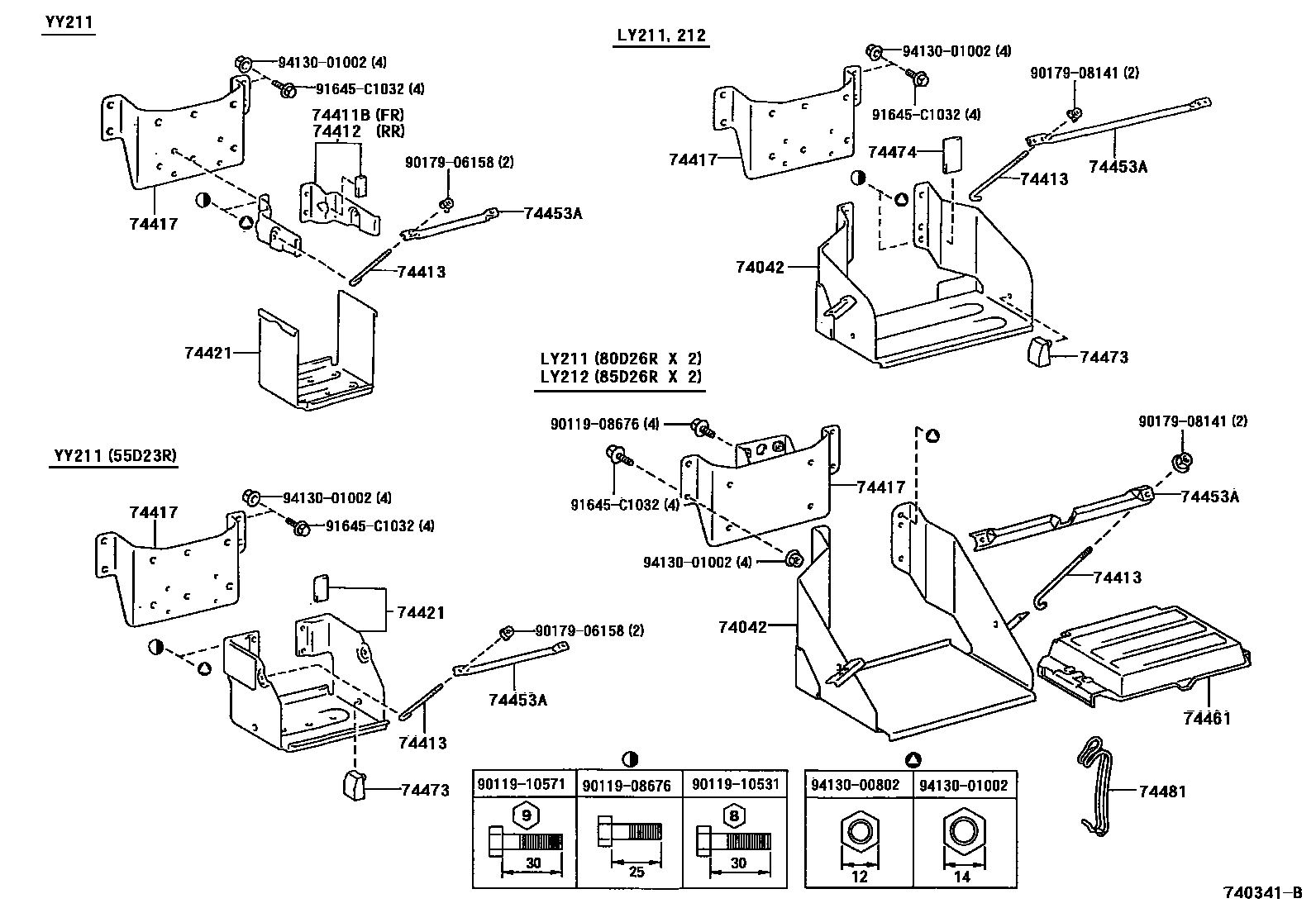

19 parts on this diagram · 1 diagram in section
