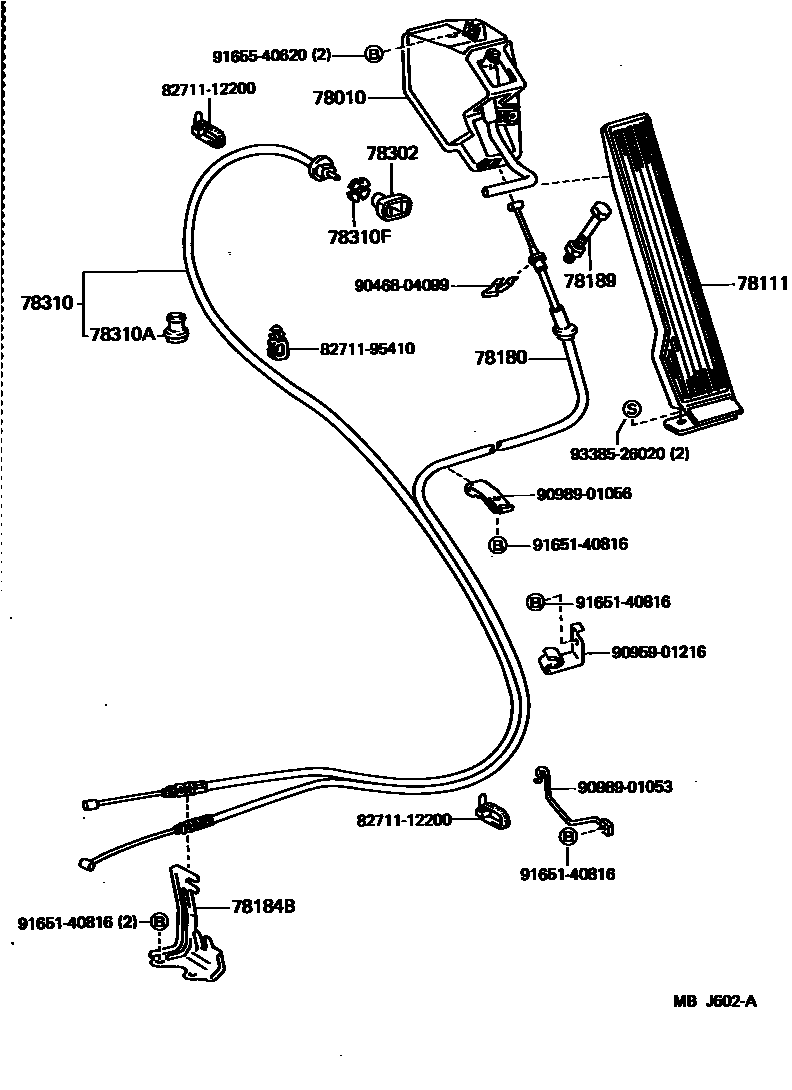

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78010LINK, ACCELERATOR

main78202-95010iLY60,YY6#..RHD198508-198708

main78202-95011iLY60,YY5#,6#..LHD198508-198708

78111PEDAL, ACCELERATOR

main78110-95014iLY60,YY5#,6#..LHD198508-198708

main78110-95410iLY60,YY6#..RHD198508-198708

78180WIRE ASSY, ACCELERATOR

main78150-95055iYY6#..RHD198508-198708

main78150-95056iLY60..RHD198508-198708

main78150-95058iYY5#,6#..LHD198508-198708

main78150-95059iLY60..LHD198508-198708

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-95010iYY5#,6#198508-198708

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-95400iLY60,YY6#..RHD198508-198708

main78208-95402iLY60,YY5#,6#..LHD198508-198708

78302KNOB SUB-ASSY, CHOKE ROD

main78302-95400iYY5#,6#198508-198708

78310CABLE ASSY, CHOKE

main78304-95010iYY6#..RHD198508-198708

main78304-95012iYY5#,6#..LHD198508-198708

78310AGROMMET, CHOKE CABLE

main90480-15194iYY5#,6#198508-198708

78310FNUT, CHOKE

main78314-95010iYY5#,6#198508-198708

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271195410WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95410

9046804099

main90468-04099

9095901216

main90959-01216

9098901053

main90989-01053

9098901056

main90989-01056

9165140816

main91651-40816

9165540620

main91655-40620

9338526020

main93385-26020

18 parts on this diagram · 4 diagrams in section
