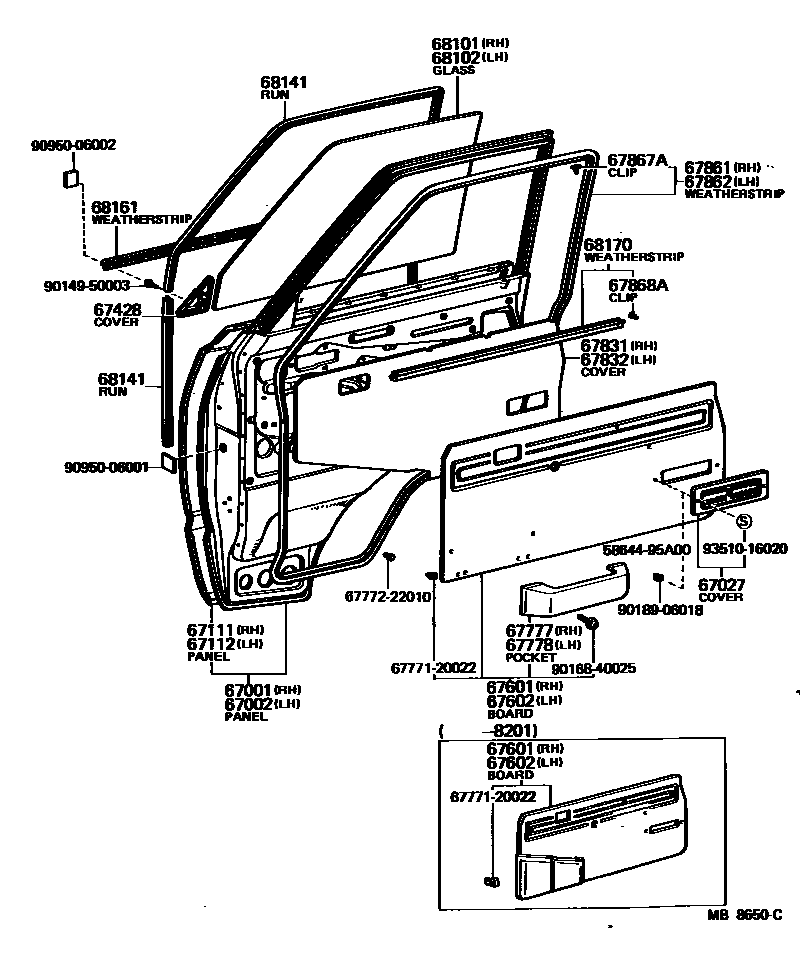

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95010iJY30,LY20,30,RY20,3#..RHD197903-198201

main67001-95011iJY30,RY20,3#..LHD197903-198201

main67001-95016iLY3#,RY20,3#..RHD198201-198507

main67001-95017iJY30,RY20,3#..LHD198201-198507

main67001-95018iJY30..T1198201-198308

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95010iJY30,LY20,30,RY20,3#..RHD197903-198201

main67002-95011iJY30,RY20,3#..LHD197903-198201

main67002-95017iJY30,LY3#,RY20,3#..RHD198201-198507

main67002-95018iJY30,RY20,3#..LHD198201-198507

67027COVER SUB-ASSY, DOOR VENTILATING HOLE

main68300-95400-06×2iJY30,LY20,3#,RY20,3#197903-198507

BROWN,BROWN

67111PANEL, FRONT DOOR, OUTER RH

main67111-95019iJY30,LY20,30,RY20,3#197903-198201

main67111-95025iJY30,LY3#,RY20,3#198201-198507

67112PANEL, FRONT DOOR, OUTER LH

main67112-95018iJY30,LY20,30,RY20,3#197903-198201

main67112-95023iJY30,LY3#,RY20,3#198201-198507

67428COVER, FRONT DOOR WINDOW CORNER

main67427-95011iJY30,LY20,3#,RY20,3#197903-198507

RH

main67428-95011iJY30,LY20,3#,RY20,3#197903-198507

LH

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95014iJY30,LY20,30,RY20,3#197903-198201

main67610-95016iJY30,LY3#,RY20,3#..RHD198201-198507

main67610-95017iJY30,RY20,3#..LHD198201-198507

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95013iJY30,LY20,30,RY20,3#197903-198201

main67620-95017iJY30,LY3#,RY20,3#..RHD198201-198507

main67620-95020iJY30,RY20,3#..LHD198201-198507

67777POCKET, FRONT DOOR TRIM, RH

main67778-95010iJY30,LY3#,RY20,3#..RHD198201-198507

67778POCKET, FRONT DOOR TRIM, LH

main67777-95010iJY30,RY20,3#..LHD198201-198507

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95010iJY30,LY20,3#,RY20,3#197903-198507

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95010iJY30,LY20,3#,RY20,3#197903-198507

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95014iJY30,LY20,3#,RY20,3#197903-198507

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95014iJY30,LY20,3#,RY20,3#197903-198507

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-95401×60iJY30,LY20,30,RY20,3#197903-198107

main67868-30040×60iJY30,LY20,3#,RY20,3#198107-198507

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main90467-08071×14iJY30,LY20,3#,RY20,3#197903-198507

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95015iJY30,LY20,3#,RY20,3#197903-198507

*TEM,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95014iJY30,LY20,3#,RY20,3#197903-198507

*TEM,T=4.0

68141RUN, FRONT DOOR GLASS

main68141-95012×2iJY30,LY20,3#,RY20,3#197903-198507

L=1940

main68143-95010×2iJY30,LY20,3#,RY20,3#197903-198507

L=467

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-95011×2iJY30,LY20,3#,RY20,3#197903-198507

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-95010×2iJY30,LY20,3#,RY20,3#197903-198507

5864495A00

main58644-95A00

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9014950003

main90149-50003

9016840025

main90168-40025

9018906018

main90189-06018

9095006001

main90950-06001

9095006002

main90950-06002

9351016020

main93510-16020

30 parts on this diagram · 1 diagram in section
