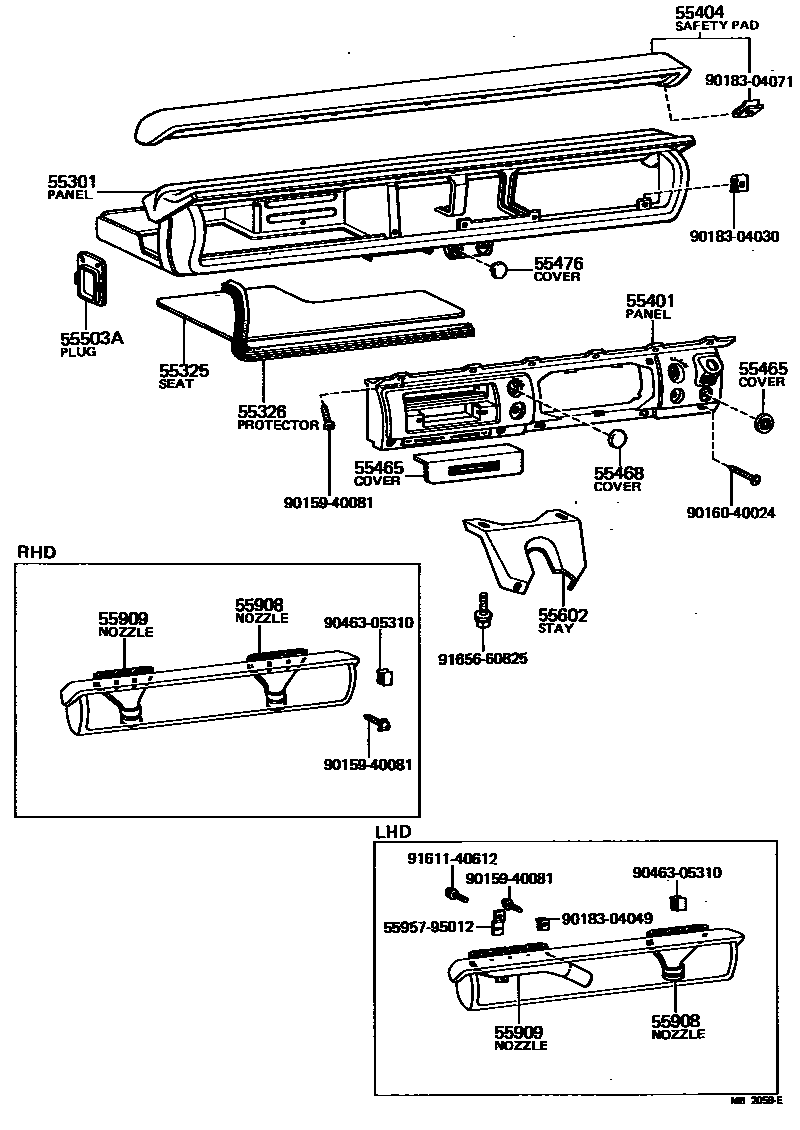

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0003 1

55301PANEL SUB-ASSY, INSTRUMENT

main55300-95010iRY10,12..RHD197109-197611

main55300-95013iJY16,RY1#..LHD197109-197902

main55300-95016iJY16,RY16..RHD197207-197611

main55300-95020iJY16,RY1#..RHD197611-197902

55325SHEET, GLOVE COMPARTMENT

main55325-95010iJY16,RY1#..RHD197109-197611

main55325-95011iJY16,RY1#..LHD197109-197902

main55325-95012iJY16,RY1#..RHD197611-197902

55326PROTECTOR, GLOVE COMPARTMENT

main55326-95010iJY16,RY1#..LHD197611-197902

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55411-95012iRY1#..RHD197109-197206

main55411-95014iJY16,RY1#..LHD197109-197902

main55411-95015iJY16,RY1#..RHD197502-197511

FOR W/HEATER

main55411-95018iJY16,RY1#..RHD197511-197611

main55411-95020iJY16,RY1#..RHD197611-197902

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55404-95012iJY16,RY1#197109-197902

55465COVER, INSTRUMENT HOLE

main55412-95011iJY16,RY1#197109-197406

FOR FUSE BOX

main55412-95013iJY16,RY1#197406-197902

FOR FUSE BOX

main55413-95010iJY16,RY1#197207-197902

FOR IGNITION SWITH HOLE

55468COVER, HEATER SWITCH HOLE

main55413-95010iJY16,RY1#197109-197902

55476COVER, CIGARETTE LIGHTER HOLE

main90950-01073iJY16,RY1#197109-197902

55503APLUG(FOR GLOVE COMPARTMENT)

main55327-95010iJY16,RY1#197109-197902

55602STAY SUB-ASSY, STEERING COLUMN, UPPER

main55602-95020iJY16,RY1#..RHD197109-197902

main55602-95021iJY16,RY1#..LHD197109-197902

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55951-95010iJY16,RY1#197109-197902

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55952-95010iJY16,RY1#..RHD197109-197902

main55952-95012iJY16,RY1#..LHD197109-197902

5595795012GUIDE, DEFROSTER

main55957-95012

9015940081

main90159-40081

9016040024

main90160-40024

9018304030

main90183-04030

9018304049

main90183-04049

9018304071

main90183-04071

9046305310

main90463-05310

9161140612

main91611-40612

9165660825

main91656-60825

21 parts on this diagram · 2 diagrams in section
