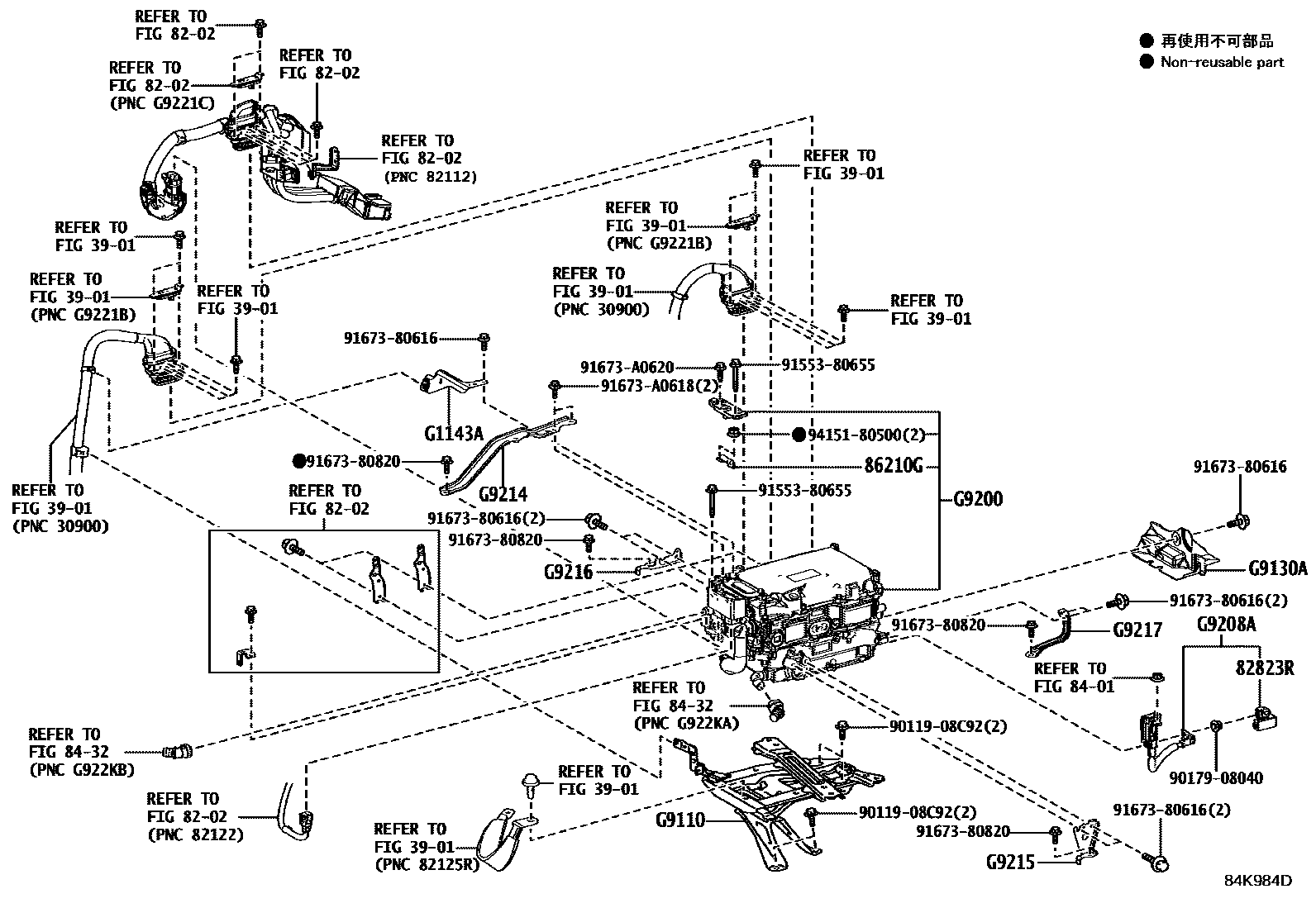

HEV INVERTER

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

82823RCAP, TERMINAL

main82823-58020iAYH36202001

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8432INVERTER COOLING

→ Go to FIG 84-32

86210GFUSE, HIGH VOLTAGE

main90982-11050iAYH36202001

G1143ABRACKET, MOTOR CABLE, NO.1

mainG114358010iAYH36202001

G9110BRACKET ASSY, INVERTER

mainG911058020iAYH36202001

G9130ACOVER ASSY, INVERTER, RH

mainG913058010iAYH36202001

G9200INVERTER ASSY, W/CONVERTER

mainG92A042050iAYH36202001

G9208AWIRE SUB-ASSY, INVERTER

main82264-58010iAYH36202001

G9214BRACKET, INVERTER, NO.1

mainG921458030iAYH36202001

G9215BRACKET, INVERTER, NO.2

mainG921558020iAYH36202001

G9216BRACKET, INVERTER, NO.3

mainG921658030iAYH36202001

G9217BRACKET, INVERTER, NO.4

mainG921758010iAYH36202001

9011908C92

main90119-08C92

9017908040

main90179-08040

9155380655

main91553-80655

9167380616

main91673-80616

9167380820

main91673-80820

91673A0618

main91673-A0618

91673A0620

main91673-A0620

9415180500

main94151-80500

23 parts on this diagram · 1 diagram in section
