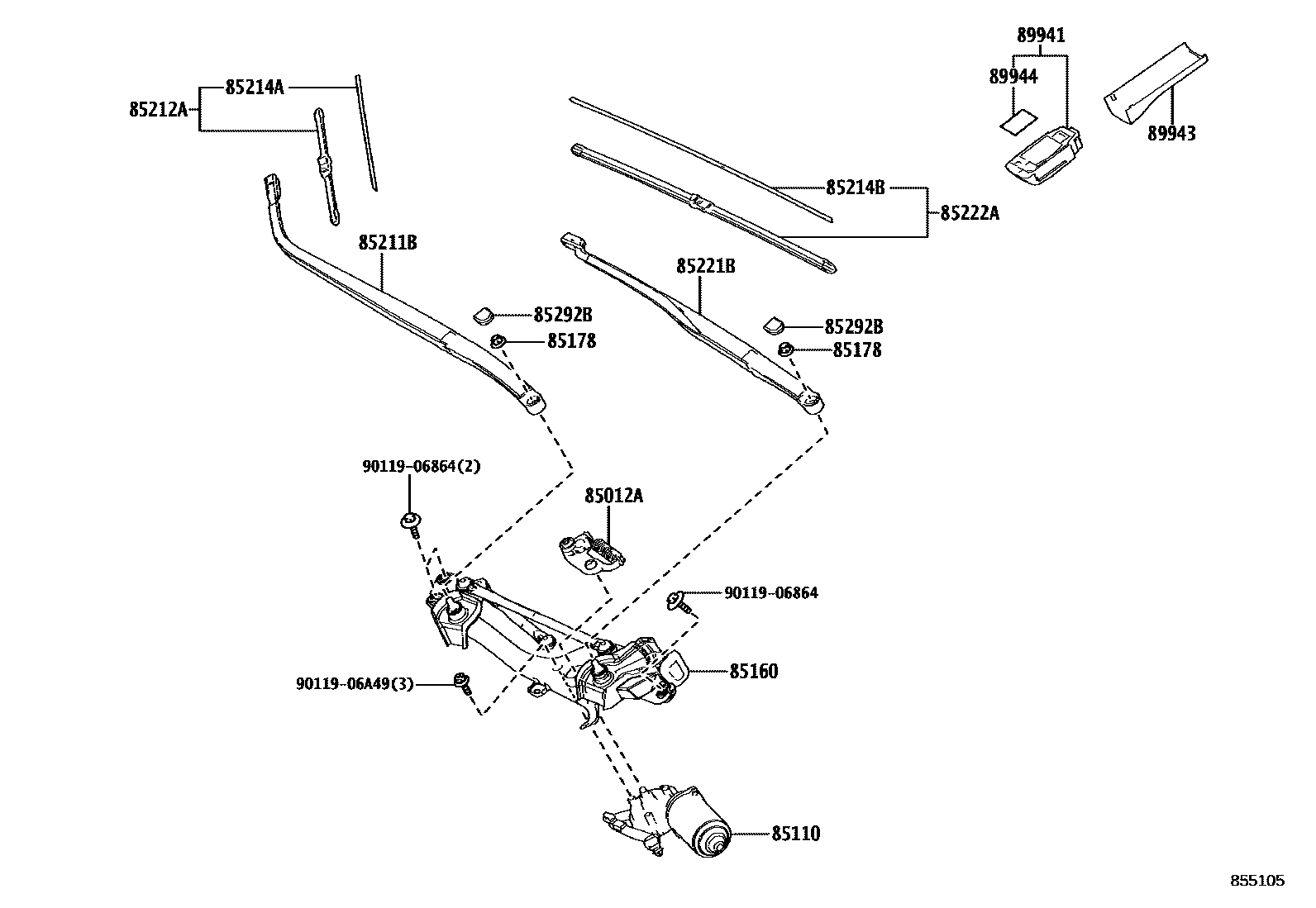

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58050iAAHH40..MA;AAHH40..RHD..L;AAHH45,AGH40,TAHA40..RHD; AAHH40..T; AAHH40..Z..GEN202306

HONG KONG SPEC; INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC

main85012-58070iAAHH45..CHI202306

main85012-58090iAAHH40..(T,Z)..GEN202306

main85012-58100iAAHH4#,AAHP45,TAHA40..LHD..(GEN,KRE,PH,TAIW)202306

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-V2010iAAHH40..MA;AAHH40..RHD..L;AAHH45,AGH40,TAHA40..RHD; AAHH40..T; AAHH40..Z..GEN202306

HONG KONG SPEC; INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC

main85110-V2020iAAHH40..(T,Z)..GEN202306

main85110-V2030iAAHH4#,AAHP45,TAHA40..LHD..(GEN,KRE,PH,TAIW)202306

main85110-V2040iAAHH45..CHI202306

85160LINK ASSY, WINDSHIELD WIPER

main85150-V2010iAAHH40..MA;AAHH40..RHD..L;AAHH45,AGH40,TAHA40..RHD; AAHH40..T; AAHH40..Z..GEN202306

HONG KONG SPEC; INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC

main85150-V2020iAAHH40..(T,Z)..GEN202306

main85150-V2030iAAHH45..CHI202306

main85150-V2040iAAHH4#,AAHP45,TAHA40..LHD..(GEN,KRE,PH,TAIW)202306

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iAAHH4#,AAHP45,AGH40,TAHA40202306

85211BARM, FRONT WIPER, RH

main85211-V2010iAAHH40..MA;AAHH40..RHD..L;AAHH45,AGH40,TAHA40..RHD; AAHH40..T; AAHH40..Z..GEN202306

HONG KONG SPEC; INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC

main85211-V2020iAAHH45..CHI202306

main85211-V2030iAAHH40..(T,Z)..GEN202306

main85211-V2050iAAHH4#,AAHP45,TAHA40..LHD..(GEN,KRE,PH,TAIW)202306

85212ABLADE, FR WIPER, RH

main85212-52220iAAHH4#,AAHP45,TAHA40..LHD..(GEN,KRE,PH,TAIW)202306

main85212-58040iAAHH40..MA;AAHH40..RHD..L;AAHH45,AGH40,TAHA40..RHD; AAHH40..T; AAHH40..Z..GEN202306

HONG KONG SPEC; INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC

main85212-V2020iAAHH40..(T,Z)..GEN202306

main85212-V2040iAAHH45..CHI202306

85214ARUBBER, WIPER, RH

main85214-58030iAAHH40..MA;AAHH40..RHD..L;AAHH45,AGH40,TAHA40..RHD; AAHH40..T; AAHH40..Z..GEN202306

HONG KONG SPEC; INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC

main85214-58060iAAHH40..(T,Z)..GEN202306

main85214-58070iAAHH45..CHI202306

main85214-68030iAAHH4#,AAHP45,TAHA40..LHD..(GEN,KRE,PH,TAIW)202306

85214BRUBBER, WIPER, LH

main85214-58030iAAHH4#,AAHP45,TAHA40..LHD..(GEN,KRE,PH,TAIW)202306

main85214-58060iAAHH45..CHI202306

main85214-58070iAAHH40..(T,Z)..GEN202306

main85214-68030iAAHH40..MA;AAHH40..RHD..L;AAHH45,AGH40,TAHA40..RHD; AAHH40..T; AAHH40..Z..GEN202306

HONG KONG SPEC; INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC

85221BARM, FRONT WIPER, LH

main85221-V2010iAAHH40..MA;AAHH40..RHD..L;AAHH45,AGH40,TAHA40..RHD; AAHH40..T; AAHH40..Z..GEN202306

HONG KONG SPEC; INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC

main85221-V2020iAAHH45..CHI202306

main85221-V2030iAAHH40..(T,Z)..GEN202306

main85221-V2050iAAHH4#,AAHP45,TAHA40..LHD..(GEN,KRE,PH,TAIW)202306

85222ABLADE, FR WIPER, LH

main85222-52220iAAHH40..MA;AAHH40..RHD..L;AAHH45,AGH40,TAHA40..RHD; AAHH40..T; AAHH40..Z..GEN202306

HONG KONG SPEC; INDONESIA SPEC; MACAU SPEC; SINGAPORE SPEC

main85222-58040iAAHH4#,AAHP45,TAHA40..LHD..(GEN,KRE,PH,TAIW)202306

main85222-V2020iAAHH40..(T,Z)..GEN202306

main85222-V2040iAAHH45..CHI202306

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iAAHH4#,AAHP45,AGH40,TAHA40202306

89941SENSOR, RAIN

main89941-78020iAAHH4#,AAHP45,AGH40,TAHA40..L,T,V,Z202306

89943COVER, RAIN SENSOR

main89943-42040iAAHH4#,AAHP45,AGH40,TAHA40..L,T,V,Z202306

89944TAPE, RAIN SENSOR

main89944-42020iAAHH4#,AAHP45,AGH40,TAHA40..L,T,V,Z202306

9011906864

main90119-06864

9011906A49

main90119-06A49

16 parts on this diagram · 2 diagrams in section
