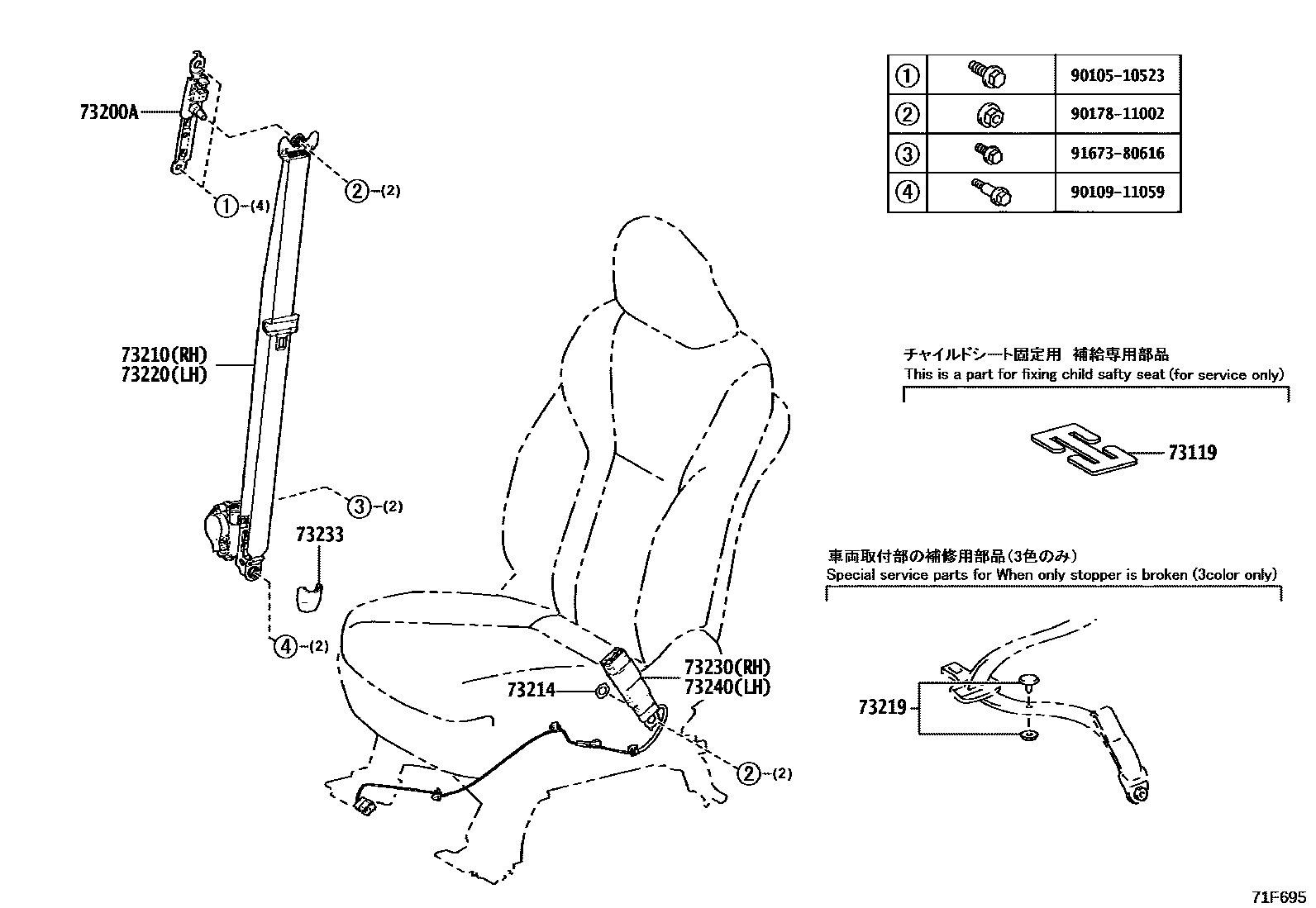

SEAT BELT
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM2#
main73210-V2020-A0iAAHH4#..RHD..(L,Z)..GEN;TAHA40..RHD..(L,V)..GEN; AAHH40,TAHA40..T; AAHH45..V..GEN; AGH40..L;TAHA40..MA; AGH40..T..GEN202306
IVORY/NEUTRAL BEIGE,TRIM0#; IVORY/NEUTRAL BEIGE,TRIM0#,4#; IVORY/NEUTRAL BEIGE,TRIM0#,41; IVORY/NEUTRAL BEIGE,TRIM4#; IVORY/NEUTRAL BEIGE,TRIM41
BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM2#,4#; BLACK/BLACK,TRIM2#,40
IVORY/NEUTRAL BEIGE,TRIM4#; IVORY/NEUTRAL BEIGE,TRIM41
main73210-V2031-C0iAAHH4#,TAHA40..LHD..(V,Z)..(CHI,GEN); AAHH40..LHD..L;AAHH45..L..(KRE,TAIW); AAHH45..V..KRE202306
BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM2#,4#; BLACK/BLACK,TRIM2#,40
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM2#
main73220-V2021-A0iAAHH4#,TAHA40..RHD..(V,Z)..GEN; TAHA40..MA;AGH40..(L,T)..GEN;AAHH4#,TAHA40..RHD..L202306
IVORY/NEUTRAL BEIGE,TRIM4#; IVORY/NEUTRAL BEIGE,TRIM41
BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM2#,40
IVORY/NEUTRAL BEIGE,TRIM0#,4#; IVORY/NEUTRAL BEIGE,TRIM0#,41
BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM2#,4#; BLACK/BLACK,TRIM2#,40
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,40
main73230-V2030-E0iAAHH4#..RHD..(L,Z)..GEN;TAHA40..RHD..(L,V)..GEN; AAHH40,TAHA40..T; AAHH45..V..GEN; AGH40..L;TAHA40..MA; AGH40..T..GEN202306
NEUTRAL BEIGE,TRIM0#; NEUTRAL BEIGE,TRIM0#,4#; NEUTRAL BEIGE,TRIM0#,41; NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM41
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,40
NEUTRAL BEIGE,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
main73233-60020-C1×2iAAHH45..L..KRE;AAHH45,AGH40..(T,V)..(GEN,KRE); AAHH45..LHD..GEN; AGH40..G;AGH40..MA; TAHA40;AAHH40..GEN,PH;AAHH45..CHI,TAIW;AAHH45,AGH40..RHD..L202306
BLACK,TRIM0#,2#,4#; BLACK,TRIM0#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,40
main73240-V2020-E0iAAHH4#..RHD..(L,Z)..GEN;TAHA40..RHD..(L,V)..GEN; AAHH40,TAHA40..T; AAHH45..V..GEN; AGH40..L;TAHA40..MA; AGH40..T..GEN202306
NEUTRAL BEIGE,TRIM0#; NEUTRAL BEIGE,TRIM0#,4#; NEUTRAL BEIGE,TRIM0#,41; NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM41
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,40
NEUTRAL BEIGE,TRIM0#,4#; NEUTRAL BEIGE,TRIM0#,41
9010510523
main90105-10523
9010911059
main90109-11059
9017811002
main90178-11002
9167380616
main91673-80616
13 parts on this diagram · 3 diagrams in section
