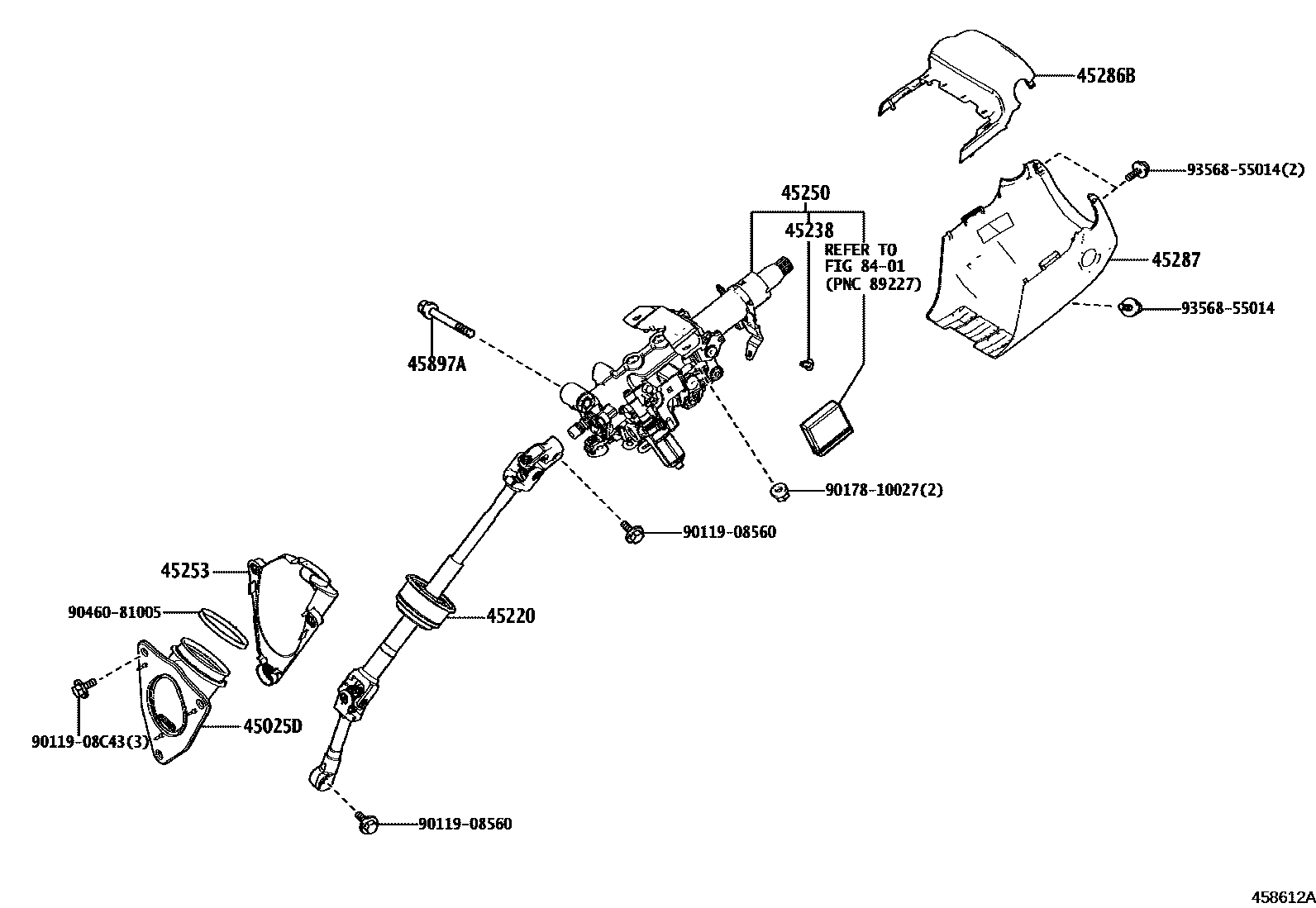

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45220SHAFT ASSY, STEERING INTERMEDIATE
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45250COLUMN ASSY, STEERING
45253COVER, STEERING COLUMN HOLE
45286BCOVER, STEERING COLUMN, UPR
main45286-30A80-C0iAAHH45..L..KRE;AAHH40,AAHP45..MA,TAIW;AAHH45,AGH40..(T,V,Z)..(CHI,GEN,KRE); AAHH45..LHD..GEN; AGH40..G;AGH40..MA; TAHA40;AAHH45..TAIW;AAHH40..GEN,PH;AAHH45,AGH40..RHD..L202306
BLACK,TRIM0#,2#,4#; BLACK,TRIM0#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
ACTIVE SAFETY PACKAGE- TOYOTA SAFETY SENSE&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,TRIM2#,4#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM2#
BLACK,TRIM2#,4#
main45024-V2030-C0iAAHH45..L..KRE;AAHH4#,AGH40,TAHA40..T; AAHH45..LHD..GEN; AAHH45..TAIW;AAHH45..V..KRE;AAHH45..RHD..(L,V);AAHH40,AAHP45,AGH40,TAHA40..L,V,Z202306
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
45897ABOLT, TILT STEERING PAWL SET
8401SWITCH & RELAY & COMPUTER
9011908560
main90119-08560
9011908C43
main90119-08C43
9017810027
main90178-10027
9046081005
main90460-81005
9356855014
main93568-55014
14 parts on this diagram · 3 diagrams in section
