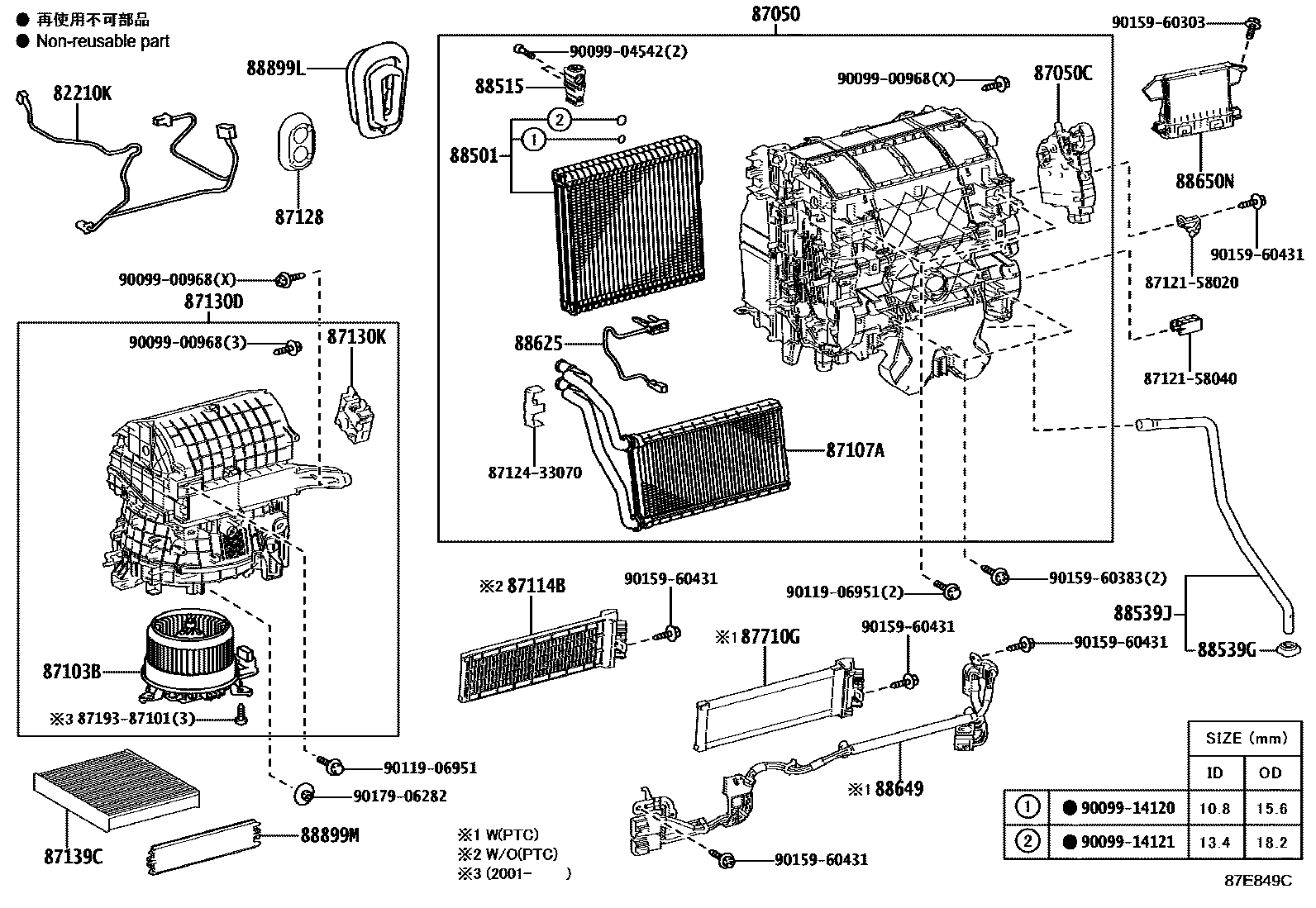

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0003 1FRONT 0005 1FRONT 0007 1FRONT 0008 1FRONT 0009 1REAR 0010 1REAR 0011 1REAR

82210KHARNESS ASSY, AIR CONDITIONER

main82212-58030iAGH30,GGH30..RHD202001

main82212-58040iAYH30201501-201801

main82212-58041iAYH30201801-201803

main82212-58042iAYH30..RHD201803-202001

main82212-58050iGGH30..LHD201801-202001

main82212-58060iAYH30..LHD202001

87050RADIATOR ASSY, AIR CONDITIONER

main87050-58080iGGH30..RHD201501-201801

main87050-58090iAGH30;GGH30..RHD..ALPHD..8FC201801-202001

main87050-58100iAYH30..RHD201801-202001

main87050-58110iGGH30..LHD201501-201801

main87050-58120iGGH30..LHD201801-202001

main87050-58130iAYH30..LHD201905-202001

main87050-58170iGGH30..6FC202001

main87050-58180iAGH30;GGH30..RHD..8FC202001

main87050-58190iAYH30..RHD202001

main87050-58210iGGH30..LHD202001

main87050-58220iAYH30..LHD202001

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-48170iGGH30..Q201801-201907

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-58060iAGH30,GGH30..RHD202001

main87103-58070iAYH30..RHD202001

main87103-58080iAYH30,GGH30..LHD202001

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-58050iAGH30,AYH30,GGH30..RHD201501-201801

main87107-58060iGGH30..LHD201501-201801

87114BCOVER, HEATER

main87114-58050iAGH30,AYH30,GGH30..RHD; GGH30..LHD201501-201801

WITHOUT(COLD AREA SPEC)

87128GROMMET, HEATER

main87128-58030iAGH30,AYH30,GGH30201501-201801

87130DBLOWER ASSY

main87130-47290iAYH30,GGH30..LHD201801-202001

main87130-47300iAYH30201711-201801

main87130-58080iGGH30..Q201801-201907

main87130-58090iAYH30201501-201507

main87130-58091iAYH30201508-201710

main87130-58100iGGH30..LHD201501-201507

main87130-58101iGGH30..LHD201508-201710

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28240iAGH30,GGH30..RHD..(G,L,R,S,V)201801-202001

main87106-28250iAYH30..RHD202001

main87106-58050iAYH30,GGH30..LHD201801-202001

87139CFILTER, CLEAN AIR

main87139-58010supersedes 87139-58030iAGH30,AYH30,GGH30201501-201801

main87139-58030iGGH30..LHD; GGH30..LHD..L201801-201905

MICRO DUST FILTER; MICRO DUST FILTER,*417

main87139-58040iAYH30..LHD202105

MICRO DUST FILTER

87710GQUICK HEATER ASSY

main87710-58010iGGH30..LHD201501-201801

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-58030iAYH30201801-202001

main88501-58050iGGH30..6FC201908-202001

main88501-58060iAGH30;GGH30..ALPHD..8FC201801-202001

main88501-58080iGGH30..6FC202001

main88501-58090iAGH30;GGH30..8FC202001

88515VALVE, COOLER EXPANSION

main88515-48110iAGH30,AYH30;GGH30..L,R,V201801-202001

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26022iAGH30,AYH30;GGH30..L,R,V201801-202001

88539JHOSE, DRAIN COOLER

main88539-58080iAGH30,AYH30,GGH30..RHD202001

main88539-58090iGGH30..LHD201501-201708

main88539-58091iAYH30,GGH30..LHD201801-202001

88625THERMISTOR, COOLER, NO.1

main88620-28050iAYH30;GGH30..6FC201801-202001

main88620-28060iAGH30;GGH30..8FC202001

88649WIRING, COOLER, NO.2

main88649-58040iGGH30..LHD201801-201905

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-58210iAGH30,GGH30201501-201607

main88650-58211iAGH30,GGH30201607-201710

main88650-58212iAGH30,GGH30201801-201905

main88650-58213iAGH30,GGH30..G,L,R,S,V201905-202001

main88650-58214iAGH30,GGH30202001

main88650-58220iAYH30201501-201607

main88650-58221iAYH30201607-201801

main88650-58222iAYH30201801-201905

main88650-58223iAYH30201905-202001

main88650-58224iAYH30202001

main88650-58240iAGH30,GGH30201710-201801

88899LPARTS, COOLING UNIT

main88899-58040iGGH30..Q201801-201907

88899MPLATE, COVER(FOR AIR FILTER)

main88899-28620iAGH30,AYH30,GGH30201501-201706

main88899-47120iGGH30..LHD..V201905-202001

8712158020BRACKET, HEATER, FRONT RH

main87121-58020

8712158040BRACKET, HEATER, FRONT RH

main87121-58040

8712433070CLAMP, HEATER

main87124-33070

8719387101

main87193-87101

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906951

main90119-06951

9015960303

main90159-60303

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

33 parts on this diagram · 8 diagrams in section
