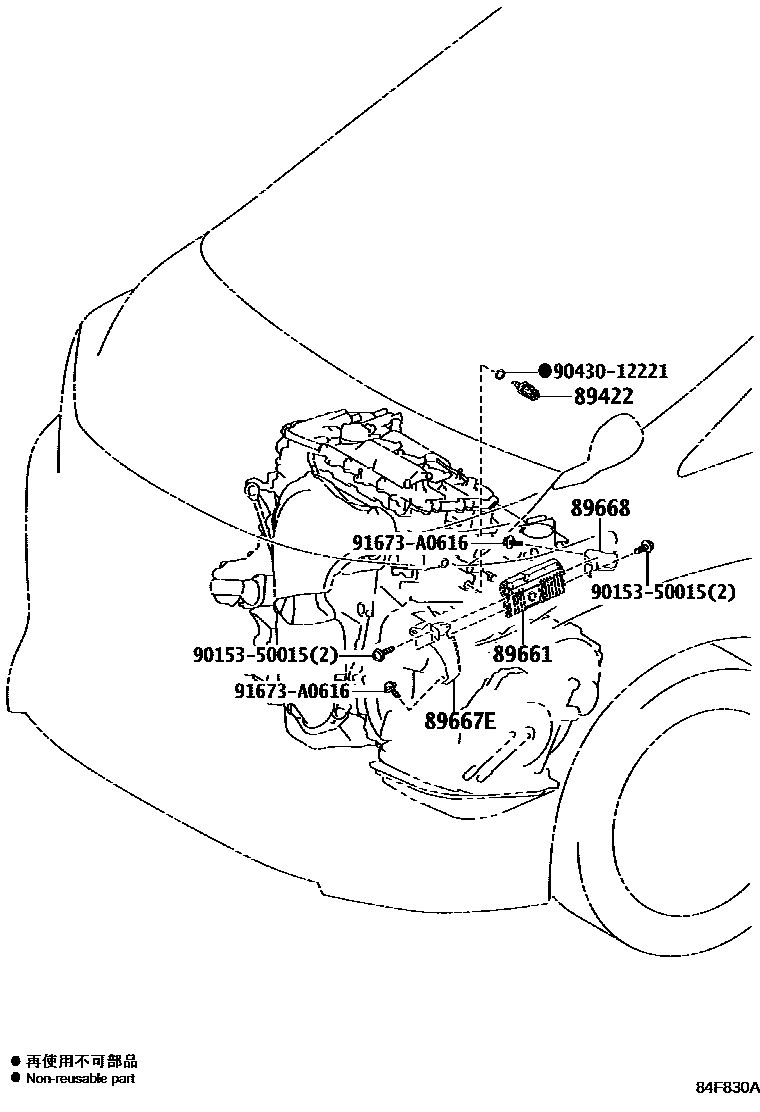

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGGH30..6FC;AGH30,AYH30202001

main89422-47010iGGH30..ALPHD..8FC201801-202001

89661COMPUTER, ENGINE CONTROL

main89661-58440iGGH30..6FC201908-202001

DENSO

main89661-58460iGGH30..RHD201501-201607

main89661-58500iGGH30..LHD201801-201905

DENSO

main89661-58510iGGH30..RHD..8FC..(Q,V)201801-202001

DENSO

main89661-58630iGGH30..6FC202001

DENSO

main89661-58640iAYH30..LHD202001

DENSO

main89661-58690iGGH30..LHD..L201905-202001

DENSO

main89661-58730supersedes 89661-58740iAGH30..ALPHD..L; AGH30..G,S;AGH30..VFIRE..L201801-202001

DENSO; DENSO,SINGAPORE SPEC

main89661-58760iAYH30..LHD201905-202001

DENSO

main89661-58770iAYH30..RHD..V202001

DENSO

main89661-58830supersedes 89661-58810iGGH30..8FC..(L,Z); GGH30..RHD..8FC..V202001-202106

DENSO; DENSO,INDONESIA SPEC; DENSO,MALAYSIA SPEC

main89661-58831supersedes 89661-58811iGGH30..LHD..V;GGH30..8FC..(L,Z); GGH30..RHD..8FC..V202106

DENSO; DENSO,INDONESIA SPEC; DENSO,MALAYSIA SPEC

main89661-58890iAGH30..G,S;AGH30..VFIRE..L202001-202106

DENSO

main89661-58891iAGH30..G,S;AGH30..VFIRE..L202106

DENSO

main89661-58A00iAGH30..G; AGH30..R;AGH30..ALPHD..L; AGH30..VFIRE..L202001-202106

DENSO; DENSO,INDONESIA SPEC; DENSO,MALAYSIA SPEC

main89661-58A01iAGH30..G; AGH30..R;AGH30..ALPHD..L; AGH30..VFIRE..L202106

DENSO; DENSO,INDONESIA SPEC; DENSO,MALAYSIA SPEC

main89661-58360supersedes 89661-58620iAGH30..ALPHD..L; AGH30..G;AGH30..VFIRE201607-201801

SINGAPORE SPEC

main89661-58470iGGH30..LHD..L; GGH30..RHD..V201501-201801

INDONESIA SPEC; PHILIPPINES SPEC

main89661-58520iGGH30..LHD201801-202001

DENSO,RUSSIA SPEC

main89661-58560supersedes 89661-58570iAGH30..ALPHD..L; AGH30..G;AGH30..VFIRE201501-201607

SINGAPORE SPEC

main89661-58570supersedes 89661-58560iAGH30..ALPHD..L; AGH30..G;AGH30..VFIRE201501-201607

INDONESIA SPEC

main89661-58580supersedes 89661-58840iAYH30..Q202001-202205

DENSO,THAILAND SPEC

main89661-58610supersedes 89661-58600iGGH30..LHD201501-201801

RUSSIA SPEC

main89661-58620supersedes 89661-58360iAGH30..ALPHD..L; AGH30..G;AGH30..VFIRE; AGH30..VFIRE201607-201801

INDONESIA SPEC; MALAYSIA SPEC

main89661-58740iAGH30..ALPHD..L; AGH30..G;AGH30..VFIRE..L; AGH30..VFIRE..L201801-202001

DENSO; DENSO,INDONESIA SPEC; DENSO,MALAYSIA SPEC

main89661-58810iGGH30..LHD202105-202106

DENSO,VIETNAM SPEC

main89661-58811iGGH30..LHD; GGH30..RHD..8FC..V202106

DENSO; DENSO,VIETNAM SPEC

main89661-58820iGGH30..LHD202001-202106

DENSO,RUSSIA SPEC

main89661-58821iGGH30..LHD202106

DENSO,RUSSIA SPEC

main89661-58850iAYH30..ALPHD..L202008-202105

DENSO,TAIWAN SPEC

main89661-58A10iAYH30..Q202205-202207

DENSO,THAILAND SPEC

main89661-58B00iAGH30..L202105-202106

DENSO,SINGAPORE SPEC

main89661-58B01iAGH30..L202106

DENSO,SINGAPORE SPEC

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-58040iAGH30,GGH30201501-201801

main89667-58050iAYH30..RHD201801-202001

main89667-58060iGGH30..LHD..L;GGH30..8FC..(Q,V)201801-202001

main89667-58070iAYH30..LHD201905-202001

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-58040iAGH30;GGH30..6FC201801-202001

main89668-58050iAYH30..RHD202001

main89668-58060iGGH30..LHD..L;GGH30..8FC..(Q,V)201801-202001

main89668-58070iAYH30..LHD202001

9015350015

main90153-50015

9043012221

main90430-12221

91673A0616

main91673-A0616

7 parts on this diagram · 4 diagrams in section
