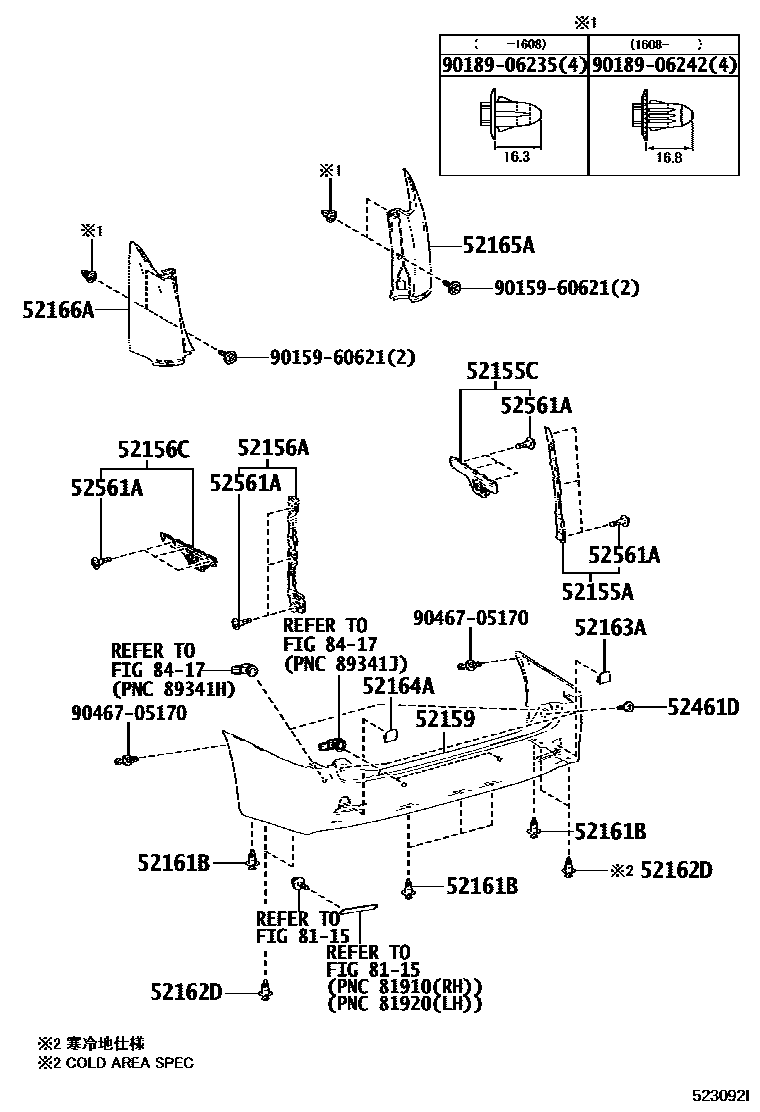

REAR BUMPER & BUMPER STAY

0001 1 0002 1W/O(REAR FOG LAMP) 0004 1W(REAR FOG LAMP) 0007 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-58060iAGH30,AYH30,GGH30201501-201801

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-58050iAGH30,AYH30,GGH30201501-201801

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-58040iAGH30,AYH30,GGH30201501-201801

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-58030iAGH30,AYH30,GGH30201501-201801

52159COVER, REAR BUMPER

main52159-58922iAGH30,AYH30,GGH30201501-201801

PAINT REQ.

main52159-58930supersedes 52159-58931iGGH30..RHD..ALPHD;AGH30,AYH30..RHD..(G,L,Q,V)201801-202001

main52159-58931iAYH30..LHD202001

PAINT REQ.

main52159-58946iAGH30,GGH30..R,S201908-202001

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010×5iAGH30,AYH30,GGH30201501-201801

52162DPIECE, REAR BUMPER

main52161-16010×2iAGH30,AYH30,GGH30..RHD; GGH30..LHD201501-201801

WITHOUT(COLD AREA SPEC)

52163APLATE, REAR BUMPER, RH

main52163-58040-A0iAGH30,AYH30,GGH30201501-201801

WHITE PEARL CS.,070

main52163-58040-A1iAGH30,AYH30,GGH30..ALPHD201501-201801

LUXURY WHITE PEARL CS.GF.,086

main52163-58040-B0iAGH30,AYH30,GGH30201501-201801

SILVER ME.,1F7

main52163-58040-C0iAGH30,AYH30,GGH30201501-201801

BLACK,202

main52163-58040-C1iGGH30..Q201801-201905

SPARKLING BLACK PEARL CS.,220

main52163-58040-C2iAGH30,GGH30..VFIRE201501-201801

BURNING BLACK CS.GF,222

main52163-58040-D0iGGH30..LHD201804-201905

DK. RED M.M.,3Q3

main52163-58040-E0iAYH30..LHD..VFIRE;GGH30..RHD..ALPHD;AGH30,AYH30..RHD..(G,L,Q)201801-202001

STEEL BLONDE ME.,4X1

main52163-58040-E1iAGH30,AYH30..G,L,V;GGH30..RHD..ALPHD..8FC201801-202001

GRAPHITE ME.,4X7

main52163-58040-J0iGGH30..LHD201501-201801

GRAYISH BLUE M.M.,8V5

main52163-58050-A0iAGH30,GGH30..R,S201908-202001

WHITE PEARL CS.,070

main52163-58050-C0iAGH30,GGH30..R,S201908-202001

BLACK,202

main52163-58050-C1iAGH30,GGH30..R,S201908-202001

SPARKLING BLACK PEARL CS.,220

main52163-58050-C2iAGH30,GGH30..R,S201908-202001

BURNING BLACK CS.GF,222

main52163-58901iGGH30..L,V;AGH30,AYH30..G,L,Q,V,Z202001

main52163-58902iAGH30,GGH30..R,S,Z202001

52164APLATE, REAR BUMPER, LH

main52164-58040-A0iAGH30,AYH30,GGH30201501-201801

WHITE PEARL CS.,070

main52164-58040-A1iGGH30..RHD..ALPHD;AGH30,AYH30..ALPHD201801-202001

LUXURY WHITE PEARL CS.GF.,086

main52164-58040-B0iAGH30,AYH30,GGH30201501-201801

SILVER ME.,1F7

main52164-58040-C0iGGH30..RHD..ALPHD;AGH30,AYH30..G,L,Q,V201801-202001

BLACK,202

main52164-58040-C1iGGH30..Q201801-201905

SPARKLING BLACK PEARL CS.,220

main52164-58040-C2iAGH30,GGH30..VFIRE201501-201801

BURNING BLACK CS.GF,222

main52164-58040-D0iGGH30..LHD201804-201905

DK. RED M.M.,3Q3

main52164-58040-E0iGGH30..LHD201905-202001

STEEL BLONDE ME.,4X1

main52164-58040-E1iAGH30,AYH30..G,L,V;GGH30..RHD..ALPHD..8FC201801-202001

GRAPHITE ME.,4X7

main52164-58040-J0iGGH30..LHD201501-201801

GRAYISH BLUE M.M.,8V5

main52164-58050-A0iAGH30,GGH30..R,S201908-202001

WHITE PEARL CS.,070

main52164-58050-C0iAGH30,GGH30..R,S201908-202001

BLACK,202

main52164-58050-C1iAGH30,GGH30..R,S201908-202001

SPARKLING BLACK PEARL CS.,220

main52164-58050-C2iAGH30,GGH30..R,S201908-202001

BURNING BLACK CS.GF,222

main52164-58903iGGH30..L,V;AGH30,AYH30..G,L,Q,V,Z202001

main52164-58904iAGH30,GGH30..R,S,Z202001

52165ACOVER, REAR BUMPER, UPR RH

main52165-58030-A0iAGH30,AYH30,GGH30202001

WHITE PEARL CS.,070

main52165-58030-A1iAGH30,AYH30,GGH30..ALPHD201501-201801

LUXURY WHITE PEARL CS.GF.,086

main52165-58030-B0iAGH30,AYH30,GGH30201501-201801

SILVER ME.,1F7

main52165-58030-C0iAGH30,AYH30,GGH30202001

BLACK,202

main52165-58030-C1iAGH30,GGH30..R,S201801-202001

SPARKLING BLACK PEARL CS.,220

main52165-58030-C2iAGH30,AYH30,GGH30..VFIRE..(L,R,S,V)201801-202001

BURNING BLACK CS.GF,222

main52165-58030-D0iGGH30..Z;AYH30..VFIRE..Z;AYH30..LHD..ALPHD202001

DK. RED M.M.,3Q3

main52165-58030-E0iAYH30..LHD..VFIRE;GGH30..RHD..ALPHD;AGH30,AYH30..RHD..(G,L,Q)201801-202001

STEEL BLONDE ME.,4X1

main52165-58030-E1iAGH30,AYH30..G,L,V;GGH30..RHD..ALPHD..8FC201801-202001

GRAPHITE ME.,4X7

main52165-58030-J0iGGH30..LHD201501-201801

GRAYISH BLUE M.M.,8V5

52166ACOVER, REAR BUMPER, UPR LH

main52166-58030-A0supersedes 52166-58040-A0iAGH30,AYH30..RHD;GGH30..RHD..(L,R,V)201801-202001

WHITE PEARL CS.,070

main52166-58030-A1supersedes 52166-58040-A1iAGH30,AYH30,GGH30..ALPHD201501-201801

LUXURY WHITE PEARL CS.GF.,086

main52166-58030-B0iAGH30,AYH30,GGH30201501-201801

SILVER ME.,1F7

main52166-58030-C0supersedes 52166-58040-C0iGGH30;AGH30,AYH30..RHD202001

BLACK,202

main52166-58030-C1iAGH30,GGH30..R,S,Z202001

SPARKLING BLACK PEARL CS.,220

main52166-58030-C2iAGH30,AYH30,GGH30..RHD..VFIRE..(L,R,S,V)201801-202001

BURNING BLACK CS.GF,222

main52166-58030-D0iGGH30..Z202105

DK. RED M.M.,3Q3

main52166-58030-E0iGGH30..RHD..ALPHD;AGH30,AYH30..RHD..(G,L,Q)201801-202001

STEEL BLONDE ME.,4X1

main52166-58030-E1supersedes 52166-58040-E1iGGH30..RHD..ALPHD..8FC;AGH30,AYH30..RHD..(G,L,V)201801-202001

GRAPHITE ME.,4X7

main52166-58030-J0iGGH30..LHD201501-201801

GRAYISH BLUE M.M.,8V5

main52166-58040-A0iAYH30..LHD202001

WHITE PEARL CS.,070

main52166-58040-A1iAYH30..LHD..ALPHD201804-202001

LUXURY WHITE PEARL CS.GF.,086

main52166-58040-C0iAYH30..LHD201804-202001

BLACK,202

main52166-58040-C1iAYH30..LHD..VFIRE201905-202001

BURNING BLACK CS.GF,222

main52166-58040-C2iAYH30..Z202105

SPARKLING BLACK PEARL CS.,220

main52166-58040-D0iGGH30..LHD201804-201905

DK. RED M.M.,3Q3

main52166-58040-E0iAYH30..LHD..VFIRE202001-202105

STEEL BLONDE ME.,4X1

main52166-58040-E1iAYH30..LHD201804-202001

GRAPHITE ME.,4X7

52461DCUSHION, REAR BUMPER

main52461-52020×2iAGH30,AYH30,GGH30201501-201801

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-09237×12iGGH30..Q201801-201907

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

9015960621

main90159-60621

9018906235

main90189-06235

9018906242

main90189-06242

9046705170

main90467-05170

19 parts on this diagram · 4 diagrams in section
