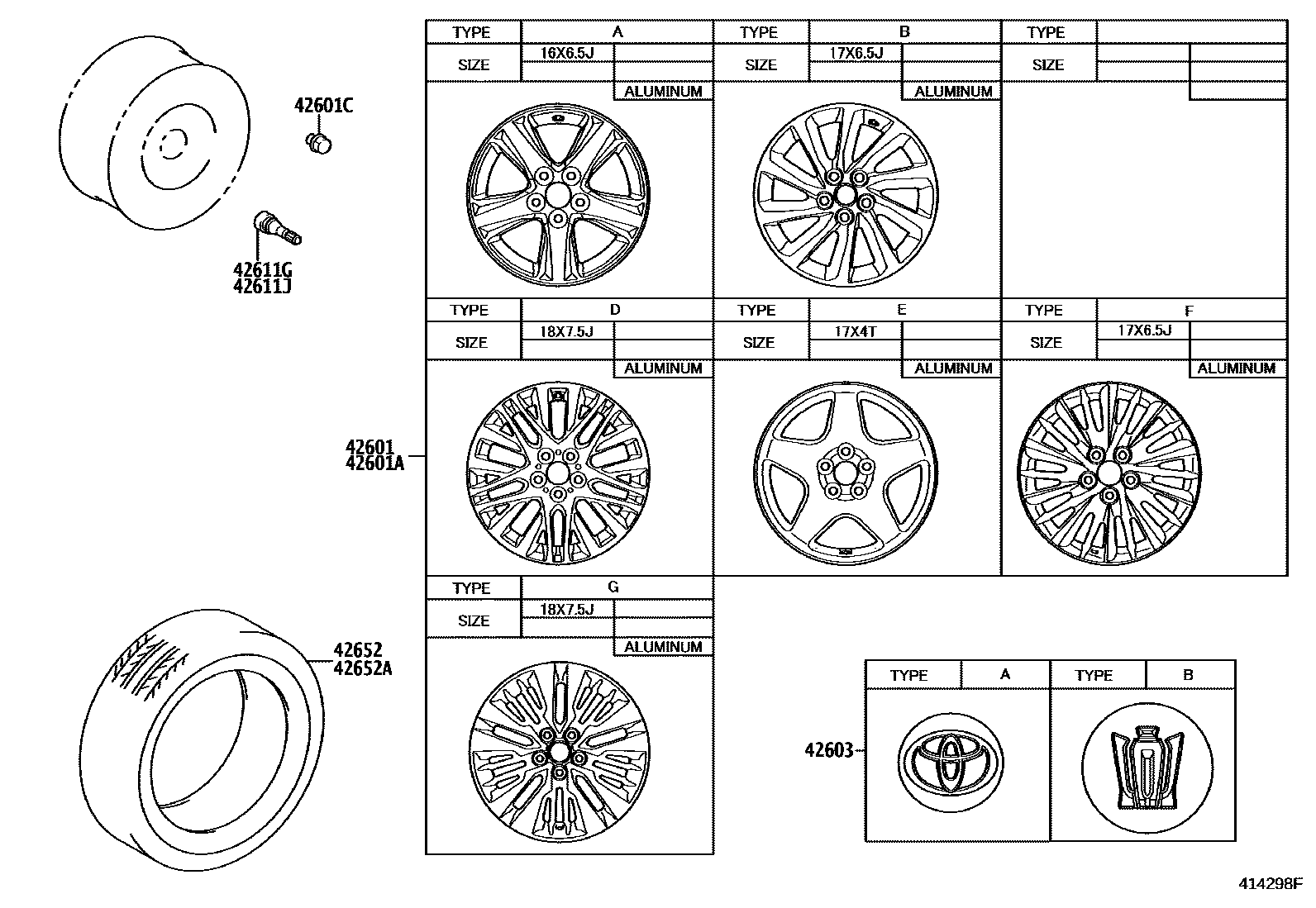

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
17X6.5J,#,TIRE & DISC WHEEL-225/60R17 ALUMINUM,TYPE B:REFER ILLUST.; 17X6.5J,#,TYPE B:REFER ILLUST.
17X6.5J,#,TYPE B:REFER ILLUST.
18X7.5J,#,TYPE D:REFER ILLUST.
18X7.5J,BLACK PAINT,TYPE G:REFER ILLUST.
17X6.5J,*SPR,TIRE & DISC WHEEL-225/60R17 ALUMINUM SPAT,TYPE F:REFER ILLUST.; 17X6.5J,*SPR,TYPE F:REFER ILLUST.
17X6.5J,#,TYPE F:REFER ILLUST.
17X6.5J,*HCMP,TIRE & DISC WHEEL-225/60R17 ALUMINUM(HI),TYPE F:REFER ILLUST.; 17X6.5J,*HCMP,TYPE F:REFER ILLUST.
16X6.5J,#,TIRE & DISC WHEEL-215/65R16 ALUMINUM,TYPE A:REFER ILLUST.
16X6.5J,#,INDONESIA SPEC&TIRE & DISC WHEEL-215/65R16 ALUMINUM,TYPE A:REFER ILLUST.; 16X6.5J,#,TIRE & DISC WHEEL-215/65R16 ALUMINUM,TYPE A:REFER ILLUST.
16X6.5J,#,RUSSIA SPEC&TIRE & DISC WHEEL-215/65R16 ALUMINUM,TYPE D:REFER ILLUST.
18X7.5J,#,RUSSIA SPEC,TYPE D:REFER ILLUST.
18X7.5J,#,PHILIPPINES SPEC&TIRE & DISC WHEEL-235/50R18 ALUMINUM(COLORED),TYPE G:REFER ILLUST.; 18X7.5J,#,RUSSIA SPEC&TIRE & DISC WHEEL-235/50R18 ALUMINUM(COLORED),TYPE G:REFER ILLUST.; 18X7.5J,#,VIETNAM SPEC&TIRE & DISC WHEEL-235/50R18 ALUMINUM(COLORED),TYPE G:REFERILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,INDONESIA SPEC,TYPE E:REFER ILLUST.; 17X4T,TYPE E:REFER ILLUST.
main42611-58320supersedes 42611-58300iAGH30..ALPHD..L; AGH30..G;AYH30,GGH30;AGH30..VFIRE201506-201801
17X4T,BRUNEI SPEC,TYPE E:REFER ILLUST.; 17X4T,SINGAPORE SPEC,TYPE E:REFER ILLUST.; 17X4T,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE B:REFER ILLUST.
*ALU,TYPE A:REFER ILLUST.
*ALU,TYPE A:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
235/50R18 97V
225/60R17 99H; 225/60R17 99H,TIRE & DISC WHEEL-225/60R17 ALUMINUM(HI)
225/60R17
215/65R16 98H,*Y/H,TIRE & DISC WHEEL-215/65R16 ALUMINUM
215/65R16 98H,RUSSIA SPEC&TIRE & DISC WHEEL-215/65R16 ALUMINUM; 215/65R16 98H,TAIWAN SPEC&TIRE & DISC WHEEL-215/65R16 ALUMINUM
215/65R16 98H,TIRE & DISC WHEEL-215/65R16 ALUMINUM
215/65R16 98H,TIRE & DISC WHEEL-215/65R16 ALUMINUM
235/50R18 97V,PHILIPPINES SPEC&TIRE & DISC WHEEL-235/50R18 ALUMINUM(COLORED); 235/50R18 97V,RUSSIA SPEC&TIRE & DISC WHEEL-235/50R18 ALUMINUM(COLORED); 235/50R18 97V,TAIWAN SPEC; 235/50R18 97V,VIETNAM SPEC&TIRE & DISC WHEEL-235/50R18 ALUMINUM(COLORED)
225/60R17 99H,TIRE & DISC WHEEL-225/60R17 ALUMINUM
225/60R17 99H,PHILIPPINES SPEC&TIRE & DISC WHEEL-225/60R17 ALUMINUM SPAT; 225/60R17 99H,RUSSIA SPEC&TIRE & DISC WHEEL-225/60R17 ALUMINUM SPAT; 225/60R17 99H,TAIWAN SPEC&TIRE & DISC WHEEL-225/60R17 ALUMINUM(HI); 225/60R17 99H,TIRE & DISC WHEEL-225/60R17 ALUMINUM(HI); 225/60R17 99H,VIETNAM SPEC&TIRE & DISC WHEEL-225/60R17 ALUMINUM SPAT
225/60R17,PHILIPPINES SPEC&TIRE & DISC WHEEL-225/60R17 ALUMINUM SPAT; 225/60R17,PHILIPPINES SPEC&TIRE & DISC WHEEL-225/60R17 ALUMINUM(HI); 225/60R17,RUSSIA SPEC&TIRE & DISC WHEEL-225/60R17 ALUMINUM SPAT; 225/60R17,TIRE & DISC WHEEL-225/60R17 ALUMINUM SPAT; 225/60R17,TIRE & DISC WHEEL-225/60R17 ALUMINUM(HI); 225/60R17,VIETNAM SPEC&TIRE & DISC WHEEL-225/60R17 ALUMINUM SPAT; 225/60R17,VIETNAM SPEC&TIRE & DISC WHEEL-225/60R17 ALUMINUM(HI)
42652ATIRE (FOR SPARE)
T155/80D17
8 parts on this diagram · 3 diagrams in section
