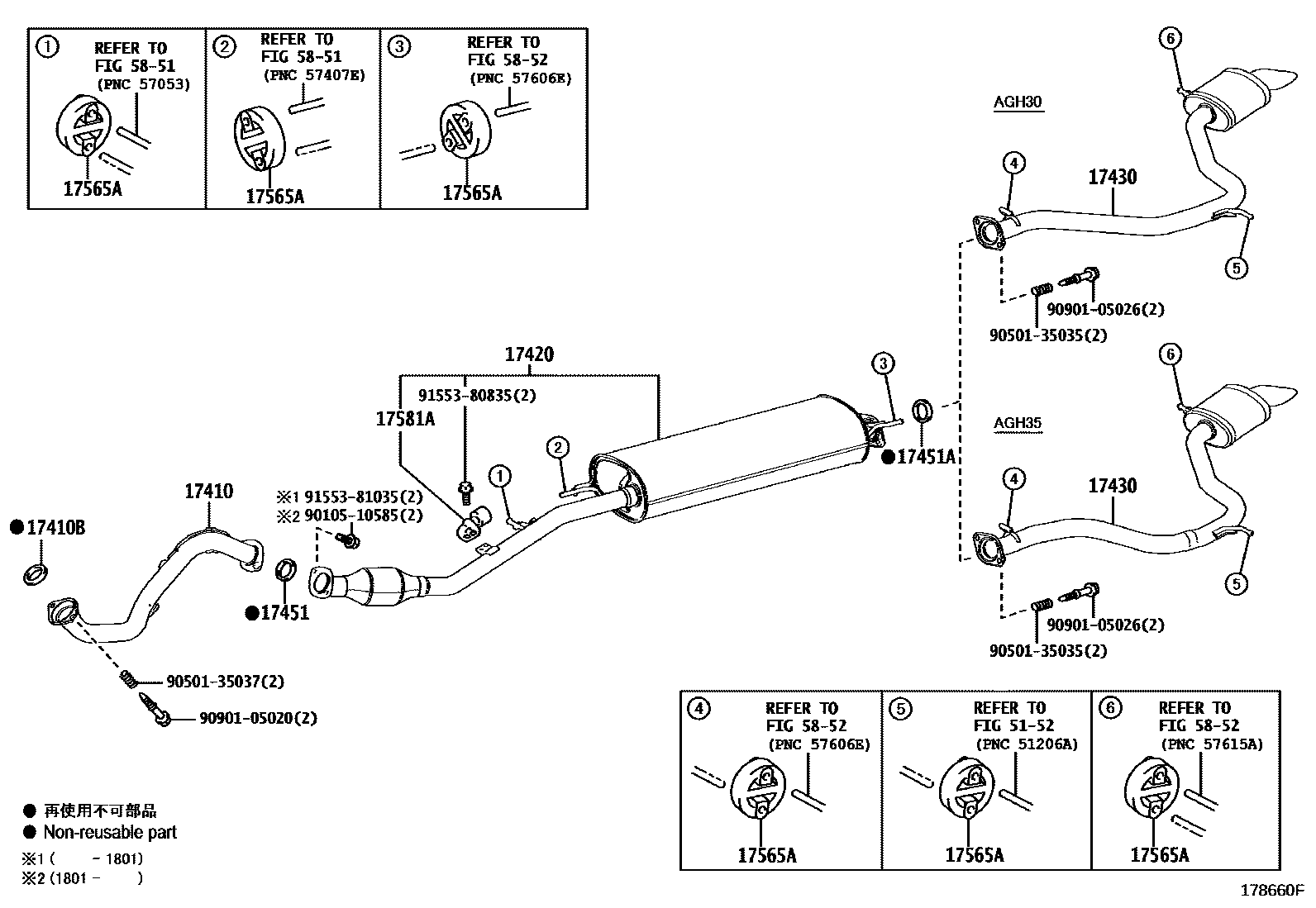

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-31630i2GRFE..GGH30201501-201801

main17410-31L00i2GRFE..GGH30202001

main17410-31L90i2GRFKS..GGH30..ALPHD201801-202001

main17410-36460i2ARFE..AGH30201501-201801

main17410-36470i2ARFXE..AYH30201501-201801

main17410-36580i2ARFXE..AYH30..L,V,Z202001

17410BGASKET, EXHAUST PIPE

main17451-28040i2AR#..AGH30,AYH30202001

main90917-06089i2GRFE..GGH30201501-201801

17420PIPE ASSY, EXHAUST, CENTER

main17420-36250i2ARFE..AGH30201801-202001

main17420-36260i2ARFXE..AYH30..Q202001

main17420-36380i2ARFXE..AYH30..L,V,Z202001

main17420-36240i2ARFE..AGH30..L202105

SINGAPORE SPEC

17430PIPE ASSY, EXHAUST, TAIL

main17430-31D70i2GRFE..GGH30..LHD..L; 2GRFE..GGH30..LHD..V; 2GRFE..GGH30..RHD201501-201705

PHILIPPINES SPEC; TAIWAN SPEC

main17430-31D71supersedes 17430-31G10i2GRFE..GGH30..LHD..L; 2GRFE..GGH30..LHD..V; 2GRFE..GGH30..RHD201705-201801

PHILIPPINES SPEC; TAIWAN SPEC

main17430-31D80i2GRFE..GGH30..LHD201501-201705

main17430-31D82i2GRFE..GGH30..LHD201705-201801

main17430-36370i2ARFE..AGH30201501-201705

main17430-36371i2ARFE..AGH30201801-202001

main17430-36380i2ARFXE..AYH30201501-201705

main17430-36381i2ARFXE..AYH30..Q201801-202001

main17430-36610i2ARFXE..AYH30..L,V201905-202001

main17430-V2010i2GR#..GGH30202012

main17430-V2020i2ARFXE..AYH30..ALPHD..V; 2ARFXE..AYH30..Q202012

TAIWAN SPEC

main17430-31G10supersedes 17430-31D71i2GRFKS..GGH30..LHD201905-202001

RUSSIA SPEC

17451GASKET, EXHAUST PIPE

main90917-06078i2GRFKS..GGH30..Q201801-201907

main90917-06089i2GRFE..GGH30201501-201801

NO.2

17451AGASKET, EXHAUST PIPE, NO.2

main17451-28022i2AR#..AGH30,AYH30202001

main17451-28040i2GR#..GGH30202001

NO.1

main90917-06090i2GR#..GGH30..L,R,V201801-202001

NO.2

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×6i2AR#,2GR#..AGH30,AYH30,GGH30202001

17581ADAMPER, EXHAUST PIPE

main17581-75060i2ARFE..AGH30201501-201801

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9010510585

main90105-10585

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155380835

main91553-80835

9155381035

main91553-81035

18 parts on this diagram · 4 diagrams in section
