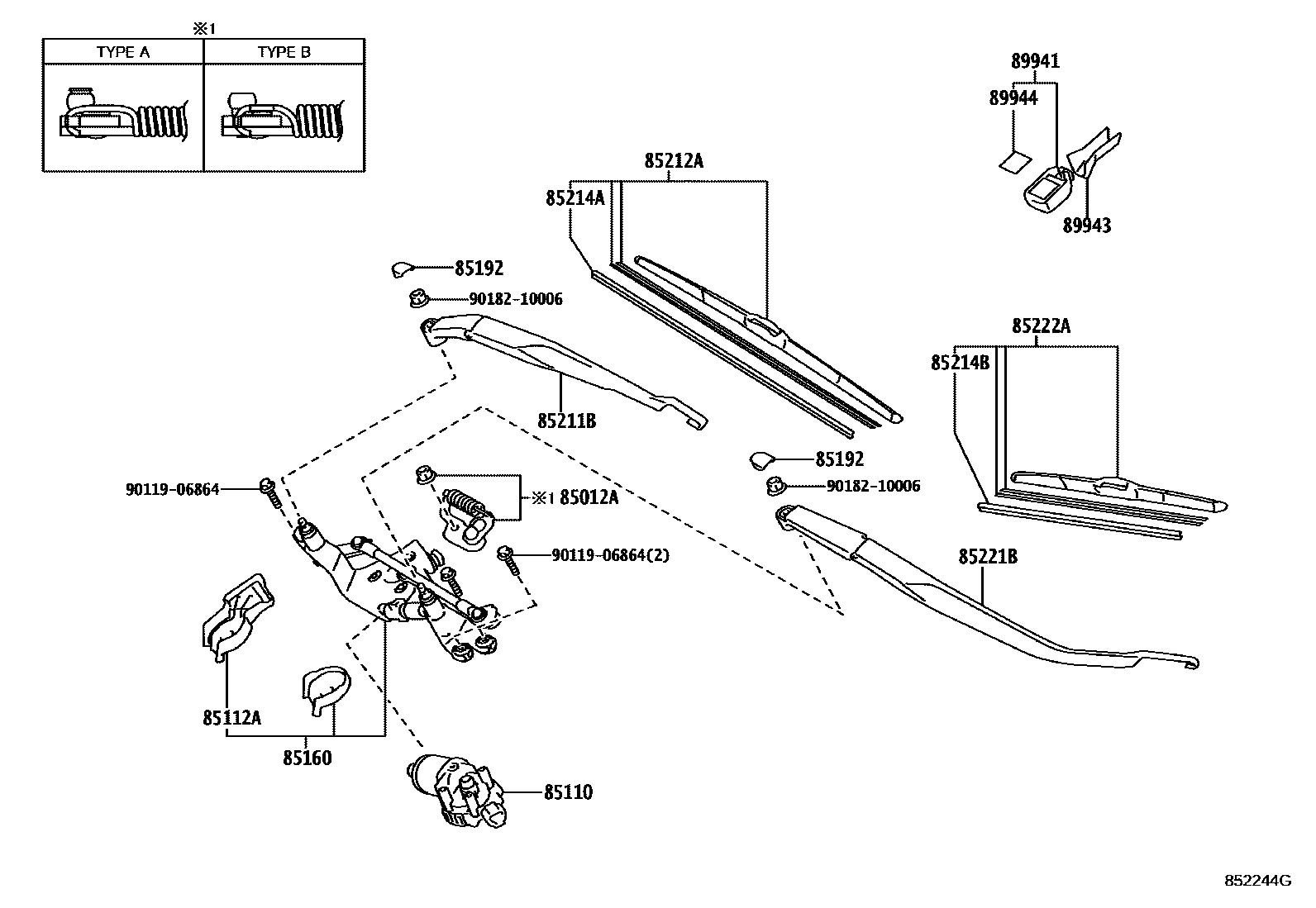

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-28010iANH20,GGH20..LHD201110

main85012-58030iANH20,ATH20,GGH20..RHD201110

main85012-58040iGGH20200804-200906

TYPE A

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-58090iANH20,ATH20,GGH20..RHD201110

main85110-58101iANH20,GGH20..LHD201110

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-58010iANH20,GGH20..RHD200804-201110

85160LINK ASSY, WINDSHIELD WIPER

main85150-58060iGGH20200804-200906

PNC 85012A=TYPE A

main85150-58061iANH20,GGH20..RHD200906-201110

PNC 85012A=TYPE B

main85150-58070iANH20,GGH20..LHD201110

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2iANH20,ATH20,GGH20201110

85211BARM, FRONT WIPER, RH

main85211-58030iANH20,GGH20..RHD200804-201104

main85211-58031iANH20,GGH20..RHD201105-201110

main85211-58040iANH20,GGH20..LHD201110

85212ABLADE, FR WIPER, RH

main85212-12430iANH20,GGH20..LHD201110

main85212-58040iANH20,ATH20,GGH20..RHD201110

85214ARUBBER, WIPER, RH

main85214-58030iANH20,GGH20..RHD200804-201110

main85214-68030iANH20,GGH20..LHD201110

85214BRUBBER, WIPER, LH

main85214-58030iANH20,GGH20..LHD201110

main85214-68030iANH20,ATH20,GGH20..RHD201110

85221BARM, FRONT WIPER, LH

main85221-58040iANH20,GGH20..RHD200804-201104

main85221-58041iANH20,ATH20,GGH20..RHD201110

main85221-58050iANH20,GGH20..LHD201006-201110

85222ABLADE, FR WIPER, LH

main85222-12860iANH20,ATH20,GGH20..RHD201110

main85222-58040iANH20,GGH20..LHD201110

89941SENSOR, RAIN

main89941-42010iANH20,GGH20..07S..(350G,350S)200804-201110

89943COVER, RAIN SENSOR

main89943-28010iANH20,GGH20..07S..(350G,350S)200804-201110

89944TAPE, RAIN SENSOR

main89944-42010iANH20,GGH20..07S..(350G,350S)200804-201110

9011906864

main90119-06864

9018210006

main90182-10006

16 parts on this diagram · 1 diagram in section
