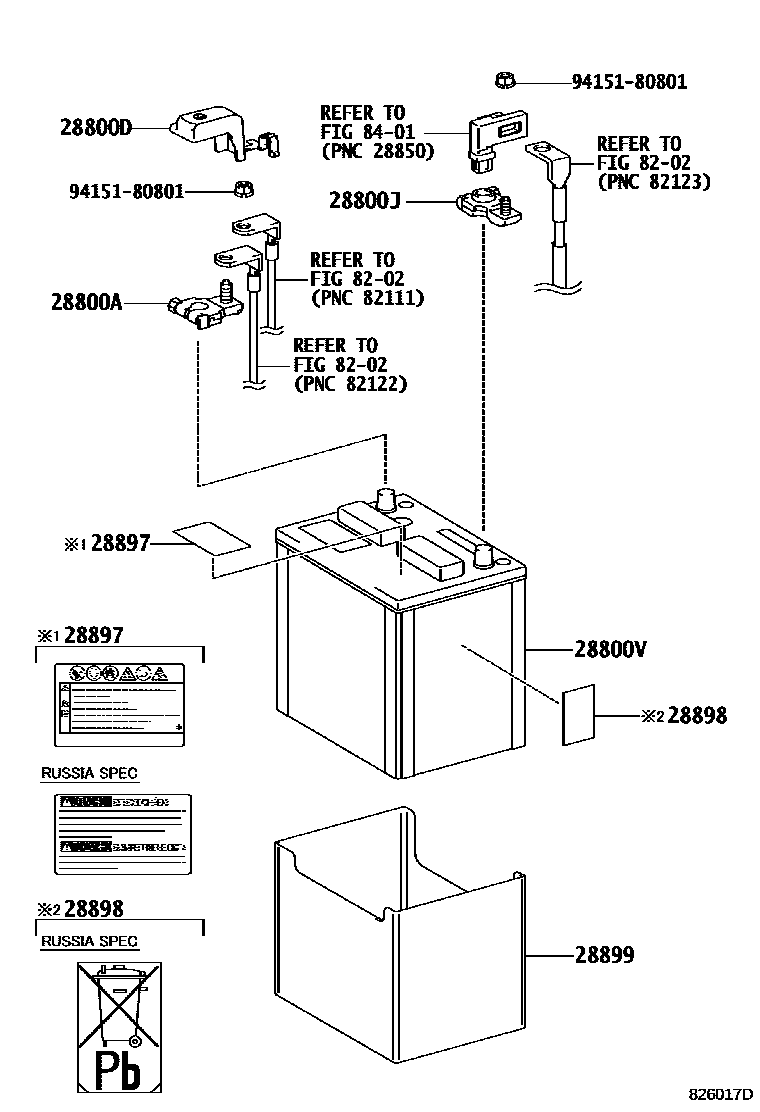

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2AZFE,2GRFE..ANH20,GGH20200804-201110

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2AZFE,2GRFE..ANH20,GGH20201110

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i2AZFE,2GRFE..ANH20,GGH20200804-201110

28800VBATTERY, W/TEMPERATURE SENSOR

main28800-28070i2AZFXE..ATH20201112-201501

S55D23L

main28800-38080i2AZFE..ANH20..350S;2AZFE,2GRFE..ANH20,GGH20..(4FC,6FC)..(350G,350S)201004-201110

80D26L

main28800-42041i2AZFE..ANH20..350S;2GRFE..GGH20..350G,350S200804-201004

55D23L,YUASA

main28800-42061i2AZFE..ANH20..350S;2GRFE..GGH20..350G,350S200804-201004

55D23L,FURUKAWA

28897PLATE, BATTERY CAUTION

main28897-50030i2AZFE,2GRFE..ANH20,GGH20..LHD..GEN201006-201110

PHILIPPINES SPEC; TAIWAN SPEC

main28897-31040i2GRFE..GGH20..LHD..GEN201110-201205

RUSSIA SPEC&COLD SPEC

28898PLATE, BATTERY

main28898-46020i2GRFE..GGH20..LHD..GEN201110-201205

RUSSIA SPEC&COLD SPEC

28899INSULATOR, BATTERY

main28877-28020i2AZFXE..ATH20201112

main28899-28040i2AZFE..ANH20..350S;2GRFE..GGH20..350G,350S200804-201004

main28899-28070i2AZFE..ANH20..350S;2AZFE..ANH20..LHD..GEN;2GRFE..GGH20..(350G,350S)..GEN201110

main28899-31180i2AZFE,2GRFE..ANH20,GGH20..GCC201006-201110

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

10 parts on this diagram · 4 diagrams in section
