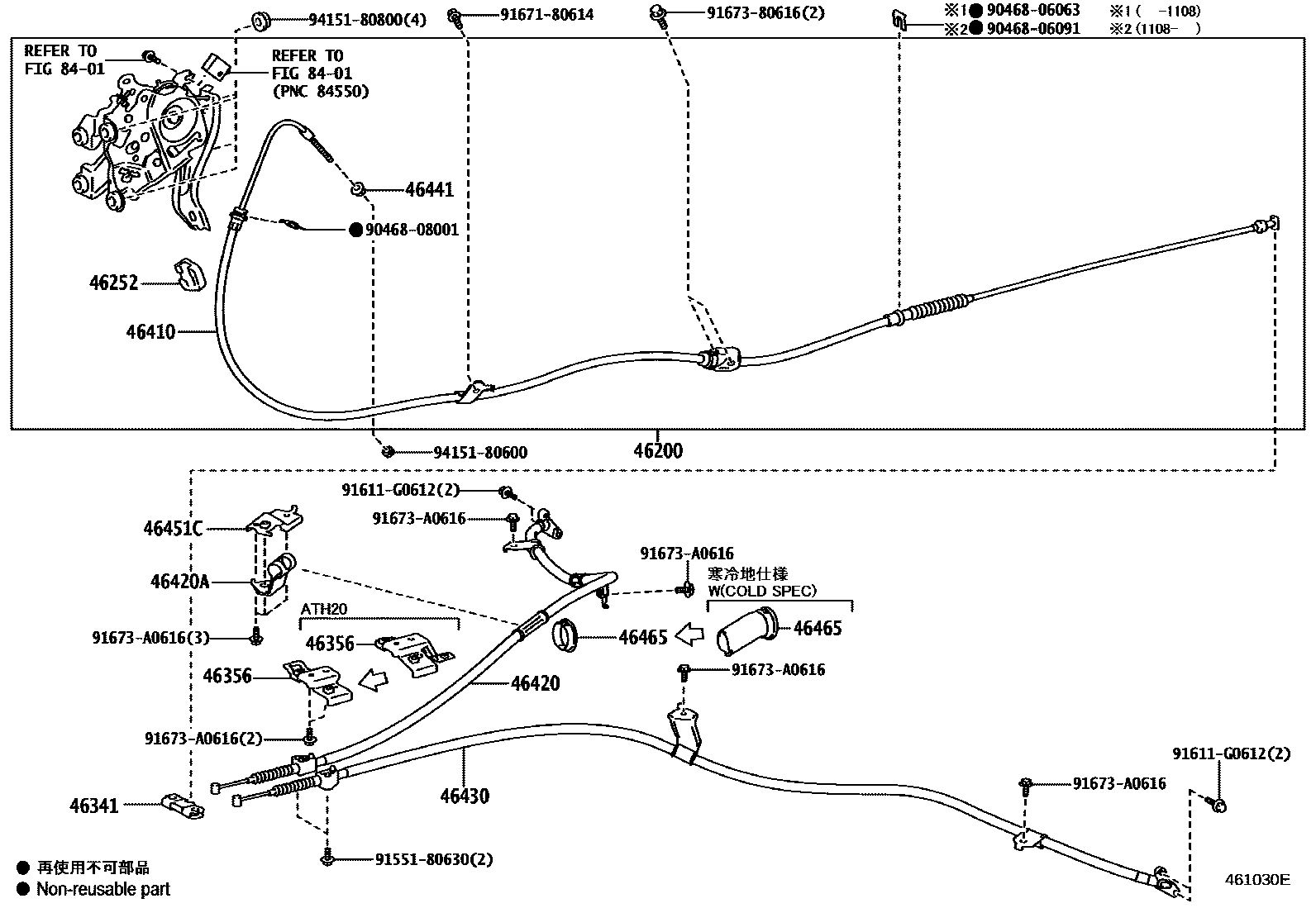

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-58030iANH20,GGH20..RHD201110-201501

main46200-58040iANH20,GGH20..LHD201006-201110

main46200-58050iATH20201112-201501

46252PAD, PARKING PEDAL

main46252-52020iANH20,GGH20200804-201110

46341EQUALIZER, PARKING BRAKE

main46341-20070iANH20,GGH20200804-201110

main46341-58020iANH20,ATH20,GGH20201110

46356BRACKET, EQUALIZER SUPPORT

main46356-28070iANH20,GGH20200804-201110

main46356-28080iATH20201112

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-58020iATH20201112

main46410-58030iANH20,GGH20..RHD200804-201110

main46410-58040iANH20,GGH20..LHD201110

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28470iANH20,ATH20,GGH20201110-201205

main46420-28471iANH20,ATH20,GGH20201206-201501

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-58010iANH20,ATH20,GGH20201110

main90949-01B71iANH20,GGH20200804-201110

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28410iANH20,ATH20,GGH20201110-201205

main46430-28411iANH20,ATH20,GGH20201206-201501

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iANH20,GGH20200804-201110

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-28160iANH20,GGH20200804-201110

46465GUIDE, PARKING BRAKE CABLE, RH

main46465-28020supersedes 46465-58010iANH20,GGH20..GCC;ANH20,ATH20,GGH20..RHD; ANH20,GGH20..LHD..(6FC,CVFC)..GEN; GGH20..LHD..GEN201110

PHILIPPINES SPEC; TAIWAN SPEC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046806063

main90468-06063

9046806091

main90468-06091

9046808001

main90468-08001

9155180630

main91551-80630

91611G0612

main91611-G0612

9167180614

main91671-80614

9167380616

main91673-80616

91673A0616

main91673-A0616

9415180600

main94151-80600

9415180800

main94151-80800

22 parts on this diagram · 3 diagrams in section
